DAHUA-4750 | 4MP Dahua thermal hybrid camera with visible and thermal analysis
DAHUA-4750DHI-TPC-BF4441-B25F12-DC-S2-V14MP Dahua thermal hybrid camera with visible and thermal analysis
Volver a Thermal Cameras
Products
CCTV
Thermal Cameras
Bullet
DAHUA-4750

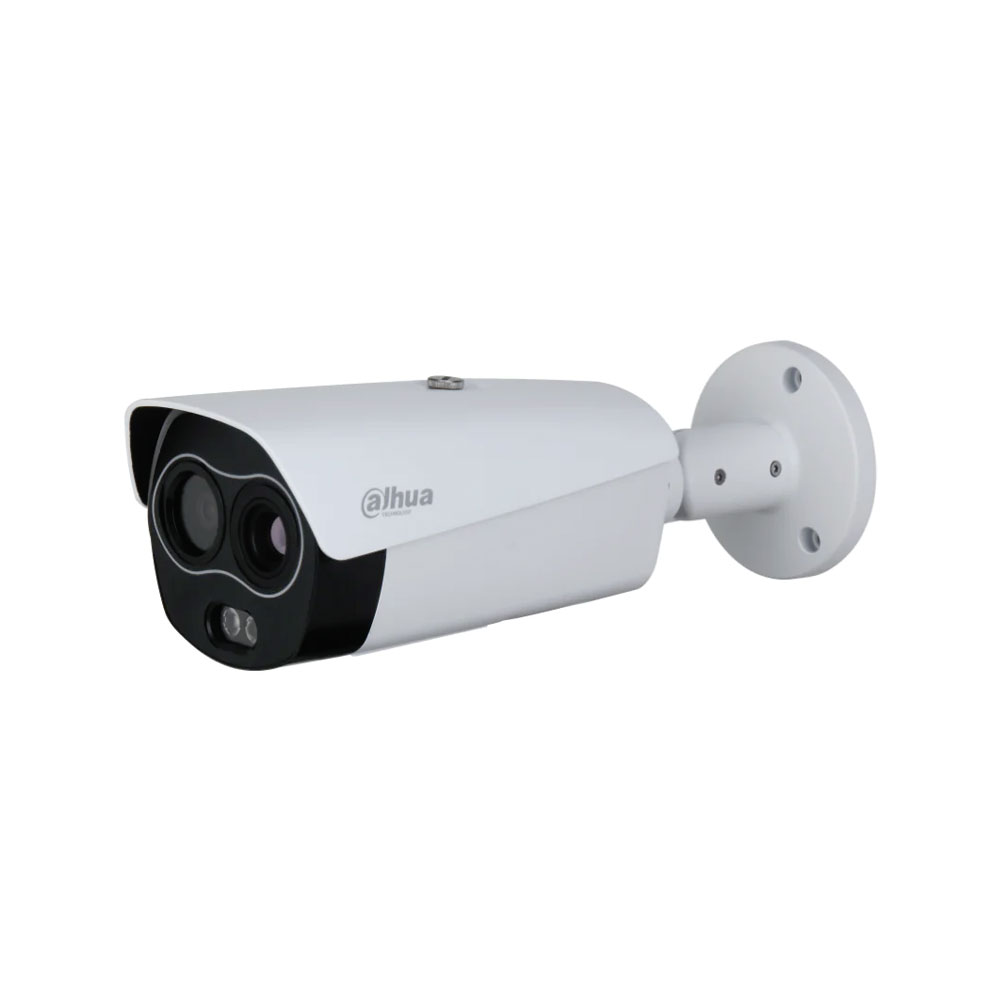

4MP Dahua thermal hybrid camera with visible and thermal analysis

DAHUA-4750

DHI-TPC-BF4441-B25F12-DC-S2-V1

Main features

  • Dahua dual bullet camera with 400 × 300 thermal sensor and 4MP visible sensor
  • Lens 25 mm thermal and 12 mm visible
  • Visible color image from 0.001 lux and IR/white light up to 30 m
  • Audio, alarms, SD card and IP67 protection
  • Intelligent analysis with classification

Specifications

  • Uncooled thermal sensor, vanadium oxide focal plane
  • Thermal resolution: 400 × 300 px
  • Lens Thermal: 25 mm
  • Thermal angle of view: 10.97° (H), 8.24° (V)
  • Visible sensor: 1/2.7" 4MP CMOS
  • Visible resolution: 2688 × 1520
  • Lens Visible: 12 mm
  • Viewing angle visible: 37.3° (H), 21.4° (V)
  • Day/night mode: Mechanical ICR
  • Minimum illumination: 0.001 lux; IR + white light up to 30 m (100 ft)
  • Active deterrence with siren and white light
  • Compression: H.265, H.264; JPEG for snapshots
  • Stream 1 visible: 2688×1520, 2560×1440, 1920×1080, 1280×720, 704×576 (1~25/30 ips)
  • Stream 2 visible: 704×576, 352×288 (1~25/30 ips)
  • Thermal Stream 1: 1280×1024, 1280×960, 1280×720, 400×300 (1~25/30 ips)
  • Stream 2 thermal: 640×512, 640×480, 400×300 (1~25/30 ips).
  • Intelligent functions:
    • Perimeter protection with human/vehicular classification.
    • Thermal temperature and fire detection
    • Intrusion detection, line crossing, area entry/exit detection
    • Temperature anomaly detection
  • Two-way audio. Audio input/output
  • Alarm inputs/outputs: 2/2
  • MicroSD slot up to 512 GB (card not included)
  • Network: RJ45 10/100, ONVIF, IPv4/IPv6, HTTPS, FTP, SNMP, RTSP, etc.
  • Power supply: 12 VDC ±20%, PoE, ePoE
  • Power consumption: max. 12.8 W
  • IP67 protection
  • Operating temperature: -30 °C to +70 °C (-30 °C to +70 °C)
  • Storage temperature: -40 °C to +70 °C (-40 °F to +70 °C)
  • Operating and storage humidity: ≤95 %.
  • Dimensions: 300.9 × 130.2 × 120.1 mm
  • Net weight: approx. 1.4 kg
  • Gross weight: 1.9 kg approx.
  • Certifications: CE, FCC
REFERENCE / MODEL DAHUA-4750 / DHI-TPC-BF4441-B25F12-DC-S2-V1
Resolution 4MP
Audio 1 input / 1 output
Ingress protection IP67
Lens 12 mm
Special Protection No
Codec H.264 || H.265
PoE PoE
SD Slot Yes
Thermal sensor FPA 12μm
Thermal lens 25 mm
Thermal resolution CIF+ (400x300)
Installation environment Outdoor
Alarm channels 2 inputs / 2 outputs
Intelligent functions Perimeter protection || SMD
