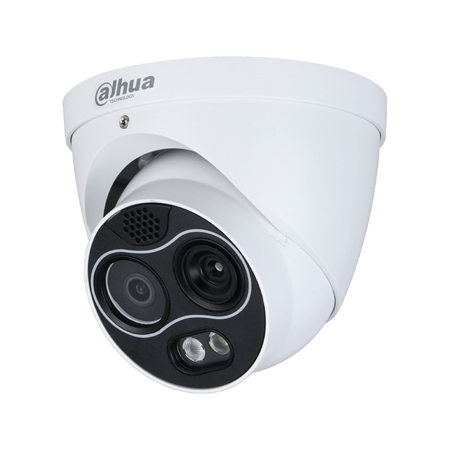

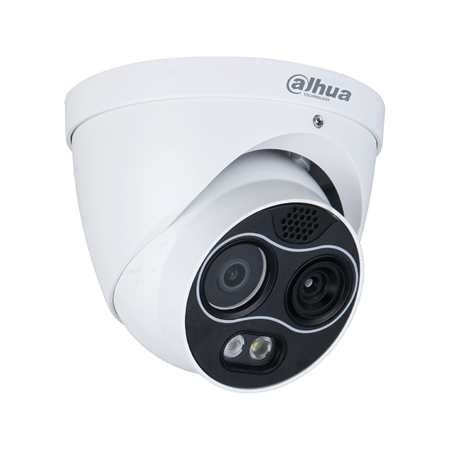

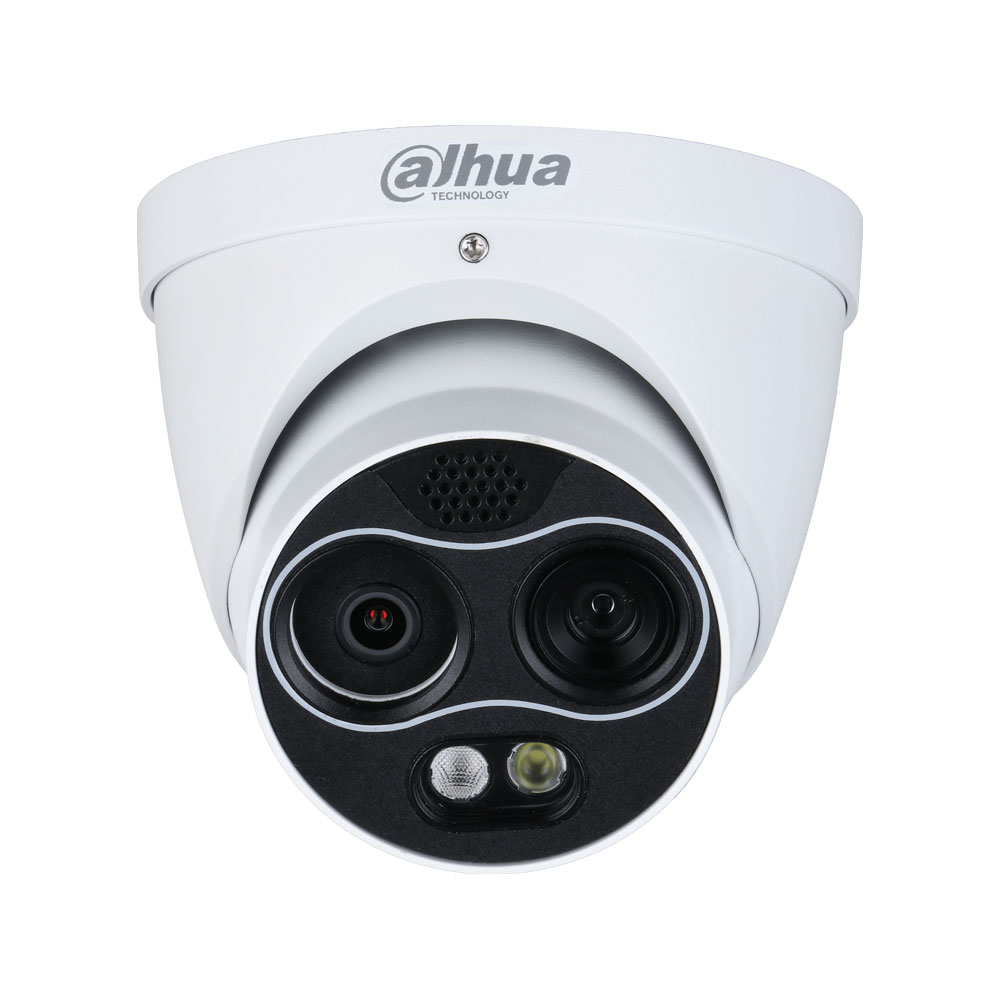

Dahua thermal + visible dome
Thermal resolution 256x192
Detects people up to 83m
Detects vehicles up to 256m
Thermal optics: 2mm (87.8°x63.8°)
Visible optics: 2mm (94°x72°)
ICR, 0.05/0.005 lux, IR 30m
Digital WDR, 2D/3D-NR, ROI
IVS intelligence
Temperature measurement
1 audio input / 1 audio output
2 alarm inputs / 2 alarm outputs
MicroSD, IP67, PoE

Uncooled focal plane sensor with vanadium oxide
Effective pixels: 256 x 192
Pixel size: 12 µm
Thermal sensitivity (NETD): <40mK
Spectrum range: 8 ~14 µm
Focal length (thermal): 2 mm
Angle of view (thermal): 87.8°(H), 63.8°(V)
Effective distance on people:
- Detection: 83 meters
- Recognition: 21 meters
- Identification: 11 meters
Effective distance on vehicles:
- Detection: 256 meters
- Recognition: 63 meters
- Identification: 32 meters
16X digital zoom
Digital detail enhancement
Automatic and manual gain control
2D and 3D noise reduction
18 color palettes
3 blending modes: warm color, cool color, iron red
Image sensor (visible camera) 1/2.7 CMOS 4 megapixels
Effective Pixels: 2336 x 1752
Infrared illumination of ≥30 meters
Minimum illumination: 0.05 lux (color) / 0.005 lux (B/W) / 0 lux IR On
Focal length (visible optics): 2 mm
Angle of view (visible optics): 94°(H), 72°(V)
Day/night mode with removable mechanical filter.
Imaging modes: BLC, HLC, digital WDR, 2D/3D-NR, exposure compensator.
White balance with 7 modes
Automatic and manual gain control
Supports regions of interest (ROI)
H.265, H.264, MJPEG video compression
Visible camera resolution: 4MP (2336x1752), 1080P (1920x1080), 720P (1280x720), D1 (704x576), CIF (352x288), 256x192
Thermal Stream 1: 1.3MP (default), XVGA, VGA, 256x192 (1~25 ips)
Stream 2 thermal: 256x192 (default), VGA (1~25 ips)
Stream 1 visible: 4MP (default), 1080P, 720P, D1 (1~25 ips)
Stream 2 visible: 720P, D1, CIF (default) (1~25 ips)
IVS Detection: Cross-line detection, intrusion detection
Advanced detection functions: Fire and alarm detection, Cold and hot spot trace, Person and vehicle classification, Smoking detection, Call detection
Supports up to 12 simultaneous measurement rules (12 points, 12 lines, 12 regions)
Low temperature range: -20°C ~ +150°C
High temperature range: 0°C ~ +550°C
Temperature accuracy: ±2°C, ±2% / operating temperature -20°C ~ +50°C
G.711A, G.711Mu and PCM audio compression
1 audio input / 1 audio output
2 alarm inputs / 2 alarm outputs
RS485
Ethernet RJ-45 (10/100M Base-T)
Network protocols: HTTPS, HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, SNMP, QoS, UPnP, NTP
Onvif and CGI support
Up to 10 users
Compatible with IE8, Chrome42, Firefox42 browsers
MicroSD card slot up to 256GB (card not included)
Power supply: 12V DC (±20%) / PoE
Maximum power consumption: 10W (12V DC) / 12.3W (PoE)
Storage temperature -30°C ~ +70°C (-30°C ~ +70°C)
Operating temperature from -30°C ~+50°C
Relative humidity: <95%.
Degree of protection IP67
Dimensions: Ø122 x 112 mm
Net weight: 850 g
Gross weight: 1 kg
