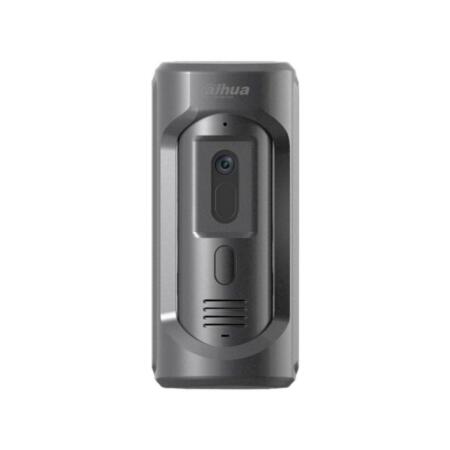

SIP Villa video door station

Specifications

    Outdoor Villa video intercom station
    SIP protocol (requires VTH SIP or DAHUA SIP Manager)
    Embedded microprocessor
    Embedded Linux operating system
    Dual stream
    Video format H.264
    1 / 2.7 "CMOS sensor, 2 megapixel
    2.8mm fixed lens
    Viewing angle: 77 ° (H), 55 ° (V), 100 ° (D)
    Horizontal viewing angle adjustment: -45 ° ~ + 45 °
    Removable mechanical filter
    Night vision up to 5 meters
    Amplitude dynamic range (WDR)
    Auto, daylight, streetlight, outdoor and manual white balance
    Automatic and manual gain control
    G.711 audio format
    Omni-directional microphone and speaker
    Voice prompts
    Two-way audio
    Noise suppression and echo cancellation
    1 mechanical button
    Tamper sabotage
    Door control interface
    1 alarm input
    1 RS485 port
    10 / 100M self-adaptive Ethernet port
    TCP / IP protocol for SIP
    Remote communication via APP
    Power: 12V DC
    Consumption: ≤2.5W (standby), ≤7W (operation)
    Supports PoE (802.3af)
    Working temperature: -30 ° C ~ + 60 ° C
    10% ~ 90% relative humidity
    Degree of protection IP65
    IK10 vandal protection
    Zinc alloy front shell and aluminum alloy back
    Dimensions: 73 (W) x 163 (H) x 54.5 mm
    Weight: 800g
    Surface installation

Notes:

    Management from Dahua VTSS5000 SIP Manager
    Compatible VTHs: DAHUA-1393 or VTH with SIP protocol (contact SAT Bydemes)
