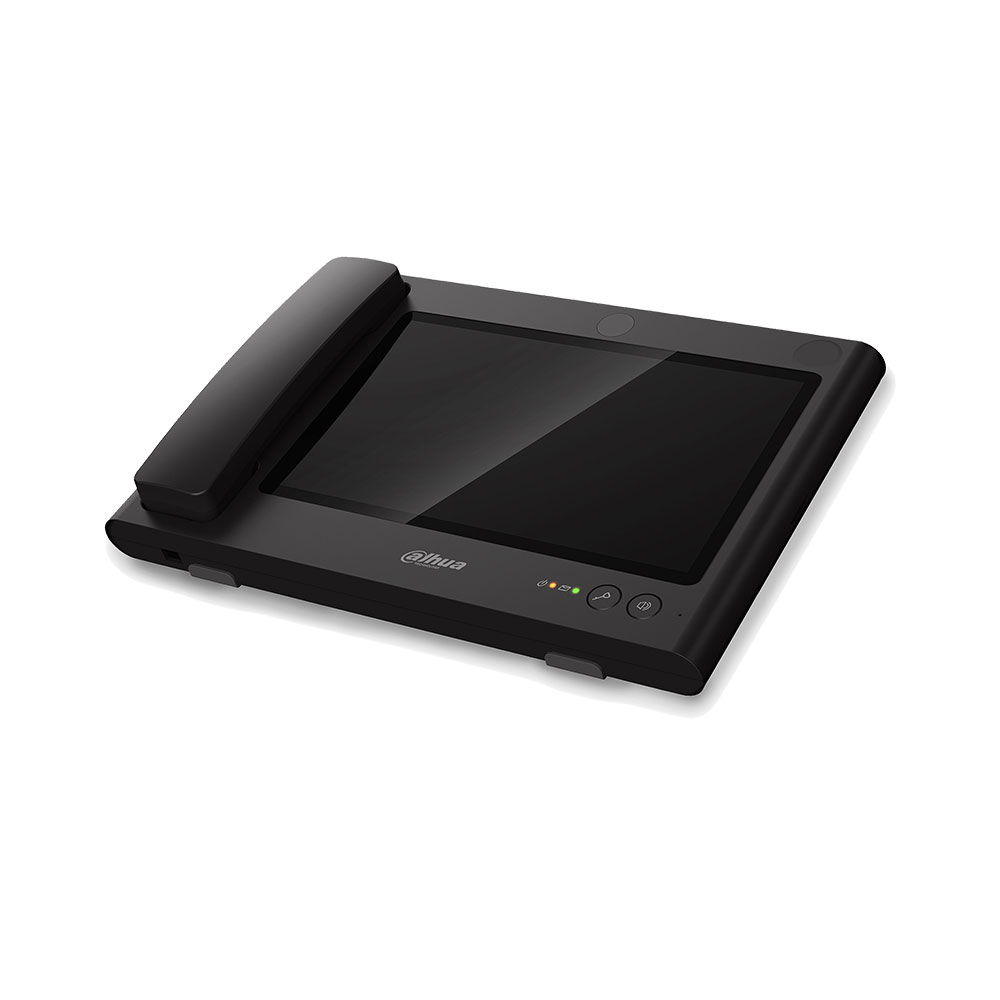

Master station with capacitive 10" touch screen

Name: DAHUA-1393
SKU: VTS5240B
Availability: InStock
Rating: 5 (94 reviews)

DAHUA-1393

VTS5240B

Simplify your business from a single platform.Invitation Code:CJKEBFKY

Access DoLynk Care

View newer model

Master station with capacitive 10" touch screen. SIP protocol DAHUA-1393N

Main features

Master station with capacitive 10" touch screen
2 buttons
H.264
Microphone and speaker incorporated
Alarm integration
Screenshot and recording (SD card required)
MicroSD slot (card is not included)
1x HDMI
2x USB
1 audio input
Alarm: 4 in / 1 out
Surface mount

Specifications

Features
- Linux embedded OS
- 10" LCD color display (1024x600)
- Capacitive touchscreen
- 2 mechanical buttons
- H.264
- G.711
- 2 way audio (omnidirectional microphone and speaker incorporated)
- IP videosurveillance
- Alarm integration
- Screenshot and recording (MicroSD card required)
- MicroSD card slot up to 32GB (card is not included)
- Network interface Ethernet 10/100Mbps, auto-adaptive
- Network protocol TCP/IP
- Audio: 1 in
- Alarm: 4 in / 1 out
- 1x HDMI
- 2x USB
- Power supply: 12V DC
- Maximum consumption: 12W
- Working temperature: -10°C ~ +55°C
- RH: 10% ~ 90%
- Not suitable for outdoors
- Plastic case
- Dimensions: 345 x 224,6 x 28 mm
- Weight: 1,5 kg
- Surface mount

Documentation

	Language	Name	Type	Action
	EN		Certificate
	EN		Manual
	EN		Self-generated File

Comments

There are no comments for the product DAHUA-1393.

Estimated Delivery: 1 To 5 Business Days (Depending On The Country)

Repair Services And Technical Support

No Worries: 15 Days Right Of Withdrawal

Secure Transaction

REFERENCE / MODEL	DAHUA-1393 / VTS5240B
System	Big Apartment
Device	Monitor
Connectivity	NO
