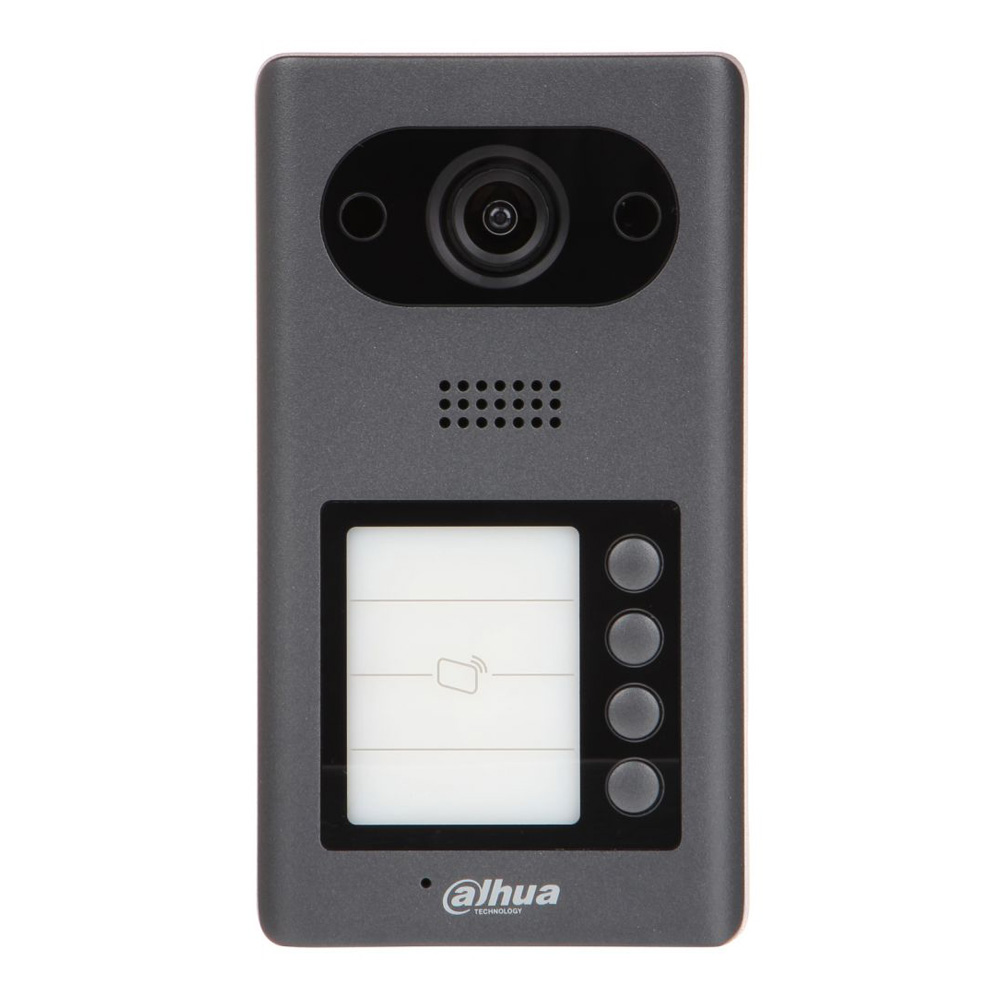

Dahua IP SIP video door entry station suitable for outdoor

features

    1 / 2.8 "CMOS camera, 2 megapixel
    Wide field of view
    Night vision and voice prompt
    Video and audio messages
    Remote intercom with mobile app
    Degree of protection IP65 (apply silica gel [liquid sodium silicate is recommended] in the gaps between the device and the wall)
    IK08 Vandal Protection
    Zinc Alloy Panel
    Surface mount
    Only compatible with IP devices with FW SIP 2.0



specs

    Embedded microprocessor
    Embedded Linux operating system
    H.264 video compression
    Image Sensor 1 / 2.8 "CMOS, 2 Megapixel
    1.9mm fixed lens
    Viewing angle: 134 ° (H), 94.8 ° (V), 151 ° (D)
    Day / night mode with removable mechanical filter
    G.711 audio compression
    Two-way audio
    Omni-directional microphone
    Incorporates speaker
    4 mechanical call buttons
    Mifare card reader
    1 RS485 port
    1 relay for door control
    Alarm inputs: 2 (1 channel unlock button, 1 channel feedback)
    1 alarm output
    Tamper tamper
    Self-adaptive 10M / 100Mbps Ethernet network interface
    TCP / IP protocol
    12V DC power supply
    Consumption: ≤6W
    Supports PoE (802.3af)
    Degree of protection IP65
    IK08 Vandal Protection
    Constructed of zinc alloy
    Surface installation
    -30C ~ + 60 ° C operating temperature
    10% ~ 90% relative humidity
    Dimensions: 101.14 (W) x 182.04 (H) x 30mm
    Weight: 800g
