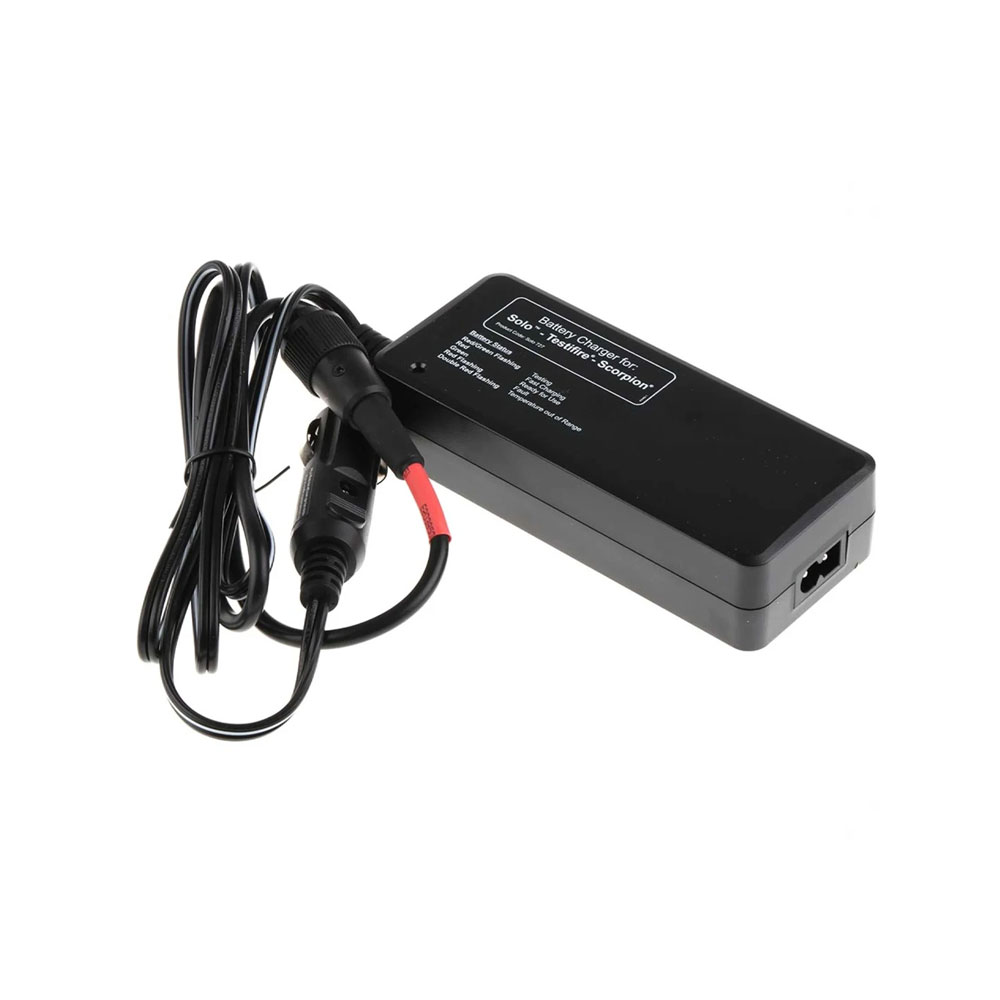

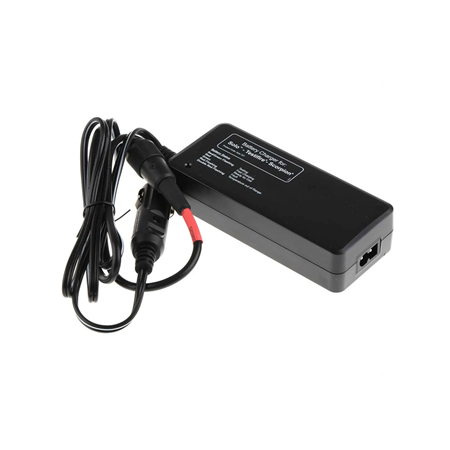

Solo fast charger for Solo 770 Battery Baton with AC/DC power supply

Technical Specifications

• Fast Charger—For Solo 770 Cylindrical Batteries Only
• Compatible exclusively with Solo 770 stick-type batteries
• Charging time: 60–90 minutes
• Automatically switches from fast charge to trickle charge once charging is complete
• Flashing red/green LED indicator during the initial battery check, lasting approximately 5 minutes
• Red LED indicator during fast charging
• Green LED indicator during maintenance charging and when the battery is ready for use
• Flashing red LED indicates a defective battery

Power Supply

• AC mains input: 100–240 V, 50/60 Hz, 0.6 A
• 13.8 V DC, 2.3 A input for vehicle power supply
• 8.4 V DC, 3 A fast-charge output
• 8.4 V DC, 160 mA trickle charge output
• Internal T3.15A TH250V fuse—not user-replaceable

Environmental

• Charging temperature range: 10°C to 35°C
• Storage temperature: -10°C to +50°C
• Relative humidity: 0–90%, non-condensing

Physical Characteristics

• Dimensions: 134 × 55 × 30 mm, excluding cables
• Weight: 294 g, including connected cables

Contents

• Solo FOC-961 Fast Charger (SOLO-727-001)
• AC power cord
• DC connection cable for vehicle outlet

Certifications and Standards

• Certified to UL standards
• CE Marking
• Equipment protected by double insulation or reinforced insulation, equivalent to Class II of IEC 536
