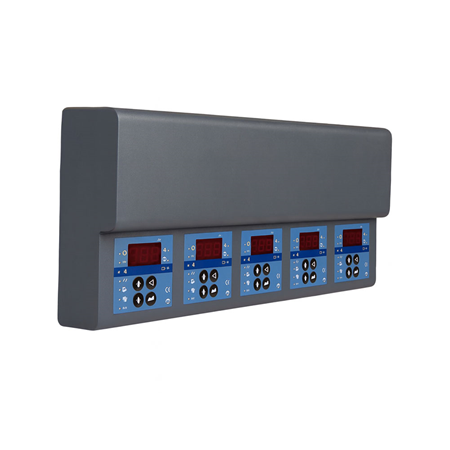

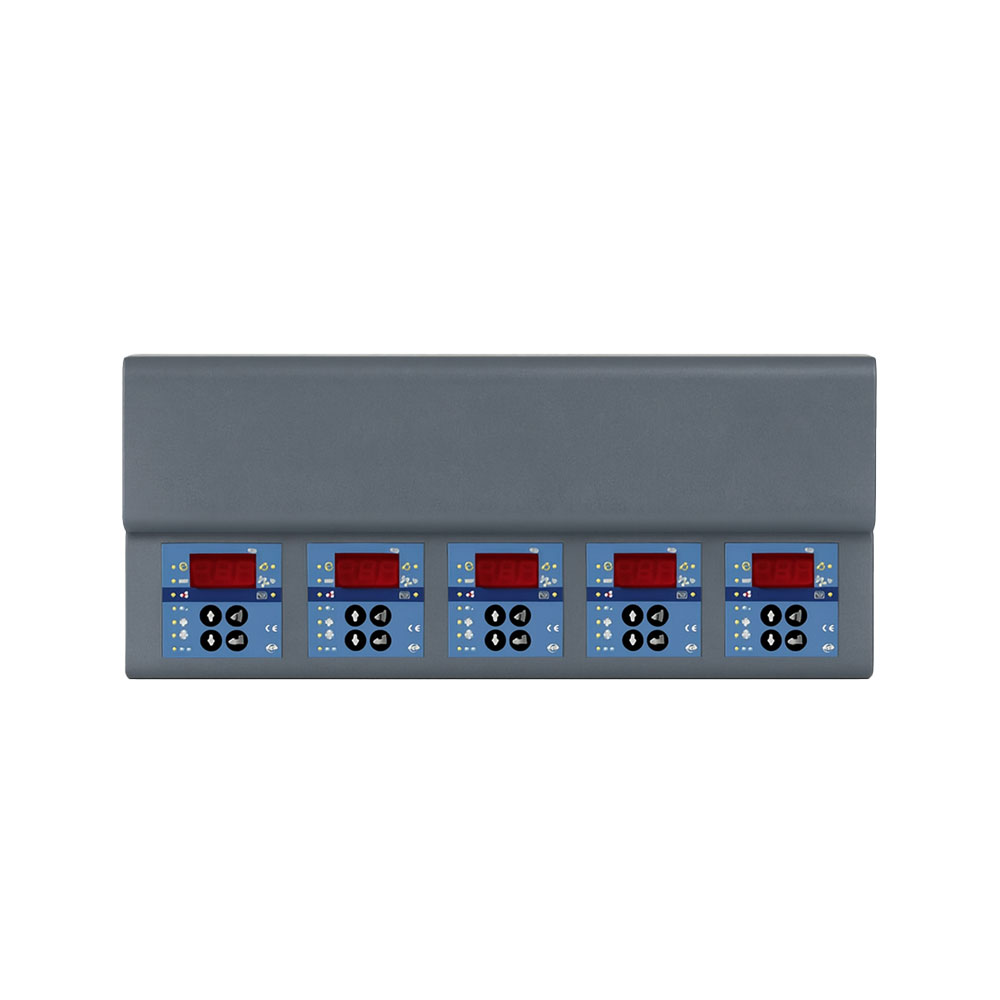

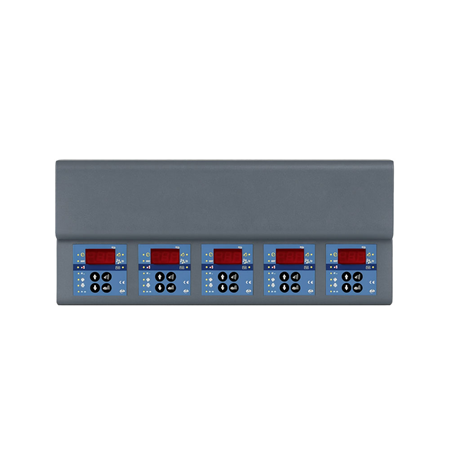

Central station of carbon monoxide detection of 4 zones

- Central station of carbon monoxide detection of 4 zones - Two available systems, detection by semiconductor or electrochemical probe - Up to 16 addressable and identifiable detectors per zone, individually during alarm or failure - 3 levels of programmable alarm - 3 independent relay outputs - Installation by 2 conductor wires on free architecture and without polarity - Time of programmable ventilation start delay - Time between detector readings 25 seconds - Alarm indication on detector with red LED continuous illumination - Normal operation indication of detectors by blinking every 25 sec - Box of phosphated and painted steel plate - Dimensions: 195 x 455 x 80 mm - Certified system pursuant to UNE 23300-1984 standard by LOM
