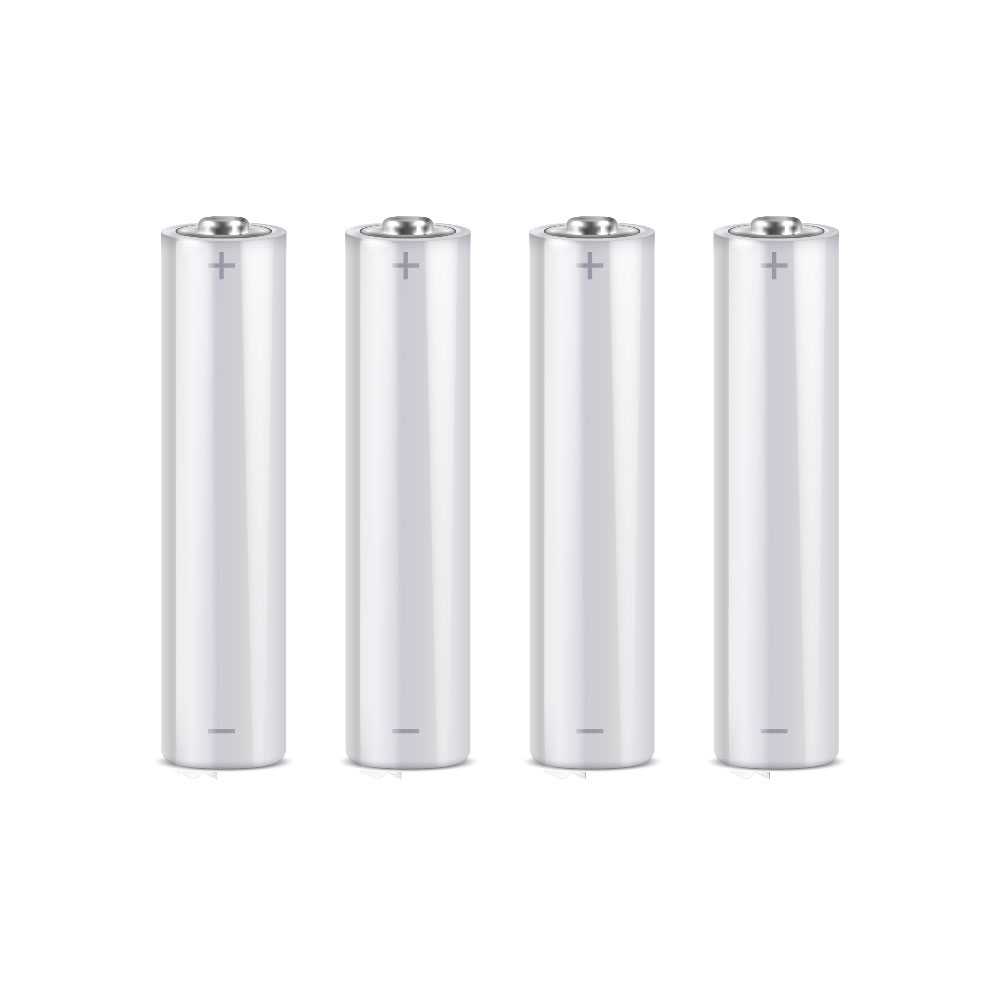

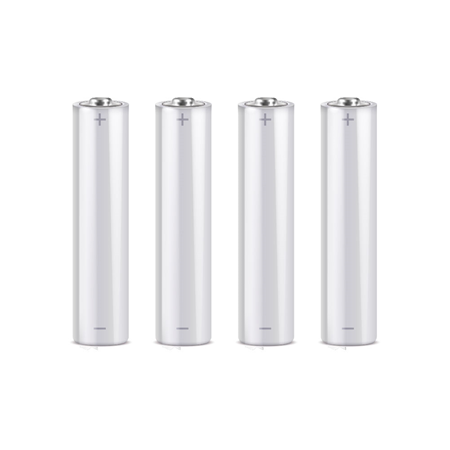

DEM-365-P | AAA lithium battery 1.5 V for high performance
DEM-365-PDEM-365-PAAA lithium battery 1.5 V for high performance

AAA lithium battery 1.5 V for high performance

DEM-365-P

DEM-365-P

Main features

  • 1.5 V AAA lithium battery
  • Li/FeS₂ chemistry
  • Capacity up to 1,200 mAh
  • Operating temperature from -40 °C to 60 °C
  • Weight 7.6 g
  • Lifetime of 20 years
  • Low self-discharge
  • Designed for demanding applications and extreme environments

Specifications

Technical characteristics

  • High-performance AAA lithium batteries
  • Rated voltage of 1.5 V
  • Chemical system: Lithium / Iron disulfide (Li/FeS₂)
  • Typical capacity: up to 1,200 mAh (depending on consumption)
  • Maximum discharge current: 1.5 A continuous, 2 A pulsed (2 s ON / 8 s OFF)
  • Internal resistance: 140 to 180 mΩ
  • Maximum reverse current: 2 μA
  • Lithium content: < 1 g

Environmental

  • Operating temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Storage temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Lifetime: up to 20 years at 21 °C

Physical characteristics

  • AAA format (IEC-FR03 / ANSI 24-LF)
  • Net weight: 7.6 g
  • Volume: 3.8 cm³
  • Dimensions: 10,5 mm ⌀ × 44,5 mm

Certifications

  • ATEX II 1G Ex ia IIC Ga
  • Baseefa 14ATEX0107U
REFERENCE / MODEL DEM-365-P / DEM-365-P
Battery type Lithium
Voltage 1.5 V
Amperage 1.5A
