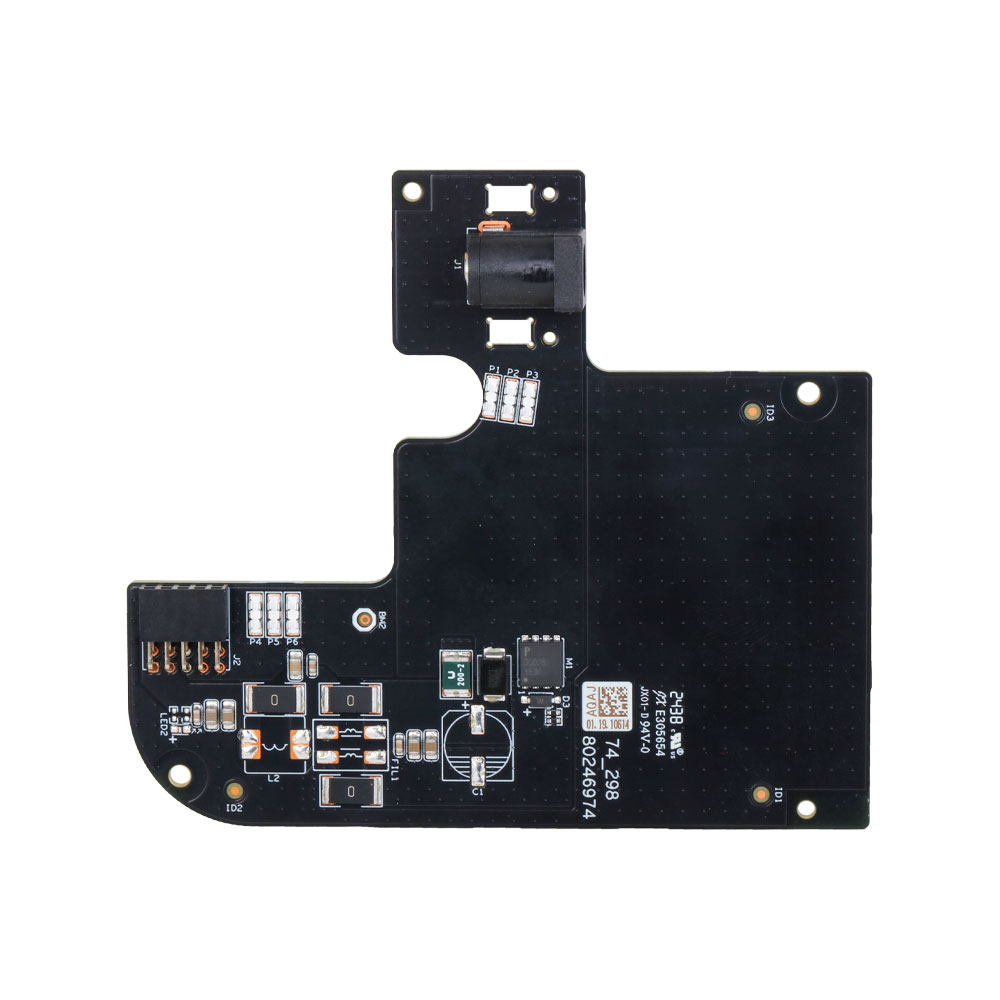

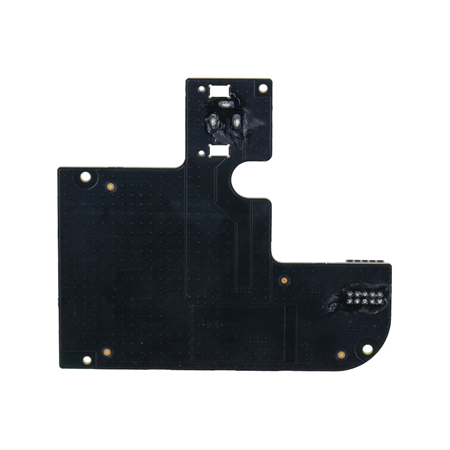

6-24 VDC power supply module Dahua

Technical features

• Dahua power supply module for HUB2 control panels
• Power adapter board for connecting Hub 2 to a 12 VDC power supply.
• 6~24 VDC power input
• 12 VDC output
• Maximum output current of 1.2 A
• Allows replacement of Hub 2 AC power module
• Circular connector for external connection with 2-pin terminal block

Functionalities

• Suitable for scenarios without access to AC power supplies

Power supply

• 6~24 VDC input
• 12 VDC output
• 1.2 A maximum output current

Environmental

• Operating temperature -10°C to +55°C (-10°F to +55°F)
• Operating humidity 10%~90% RH

Physical Characteristics

• Dimensions 89 x 79 x 12 mm
• Net weight of 34.76 g
• Gross weight 81.11 g
• Individual packaging dimensions of 106 x 90 x 45 mm (1.5 x 90 x 45 mm)
• Protective packaging dimensions of 339 x 291 x 261 mm (339 x 291 x 261 x 261 mm)

Contents

• Power supply module 6~24 VDC DAHUA-5156 (ARA62)
