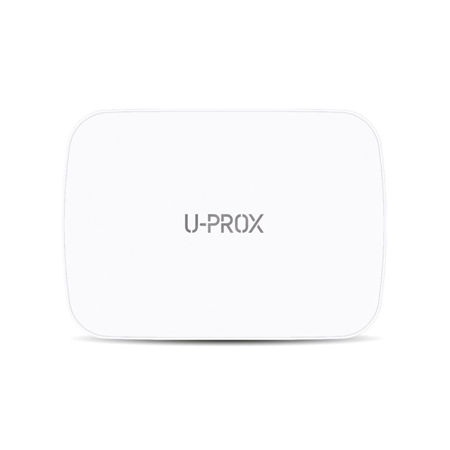

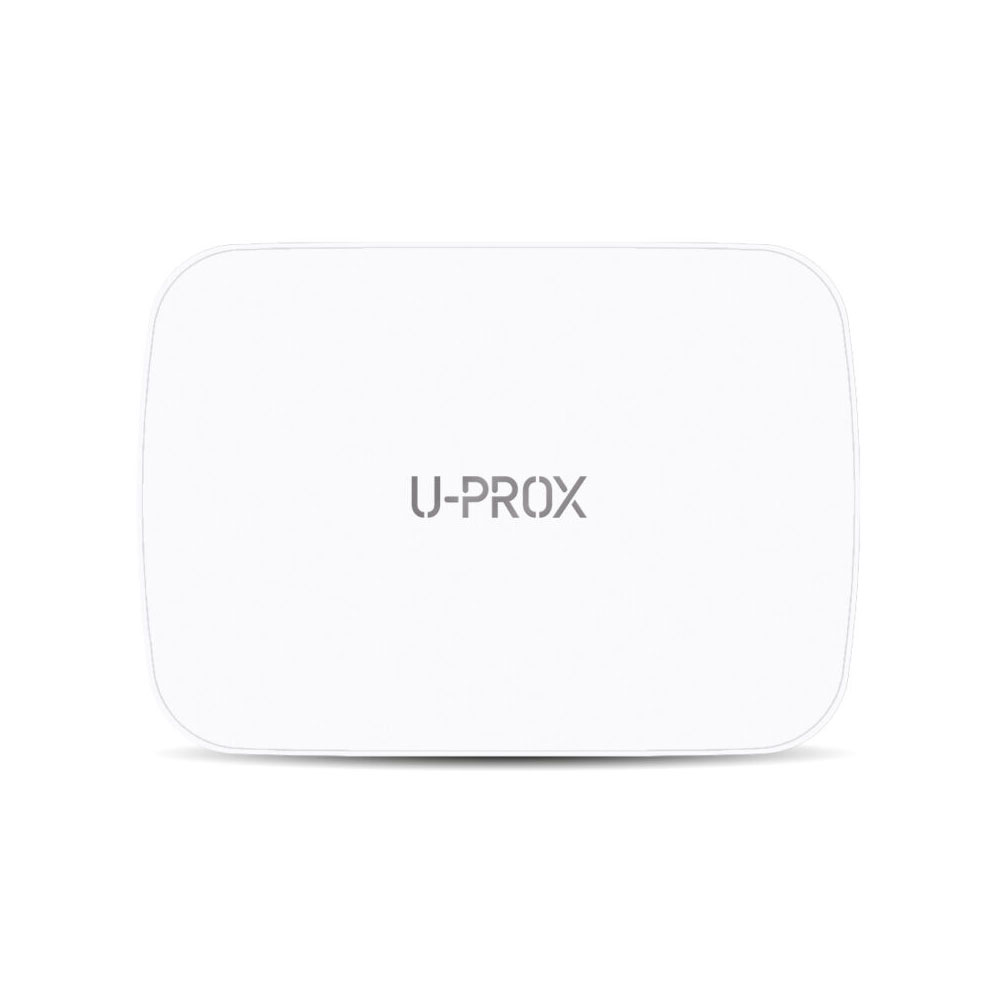

UPROX-065 | U-Prox 2G + WiFi Security Control Panel
UPROX-065U-Prox MPX G WHITEU-Prox 2G + WiFi Security Control Panel
Volver a U-PROX Systems
Products
Intrusion
U-PROX Systems
U-PROX Control Panels
UPROX-065

U-Prox 2G + WiFi Security Control Panel

UPROX-065

U-Prox MPX G WHITE

This product is discontinued

Main features

  • U-Prox security center with 2G and WiFi
  • 250 zones for detectors via radio
  • 150 automatisms (relays, anti-flooding, valves, etc.)
  • 250 users, 30 partitions
  • Supports 8 repeaters via radio
  • Encrypted radio communication
  • Stable operation in interference
  • Two simultaneous radio transmitters with self-adjusting sensitivity
  • Interference detection
  • Photoverification with PIRCAM U-Prox detectors
  • Works autonomously or connected to ARC
  • Configuration from mobile application, Ethernet and Wi-Fi via Bluetooth
  • Backup power supply: up to 24 hours without mains power
  • GSM/LTE traffic and cost control
  • OTA updates of concentrators and devices
  • EN50131 Grade 2

Specifications

  • 250 zones via radio for detectors
  • Supports 30 keypads, 250 pushbuttons, 8 radio repeaters and 150 automation devices
  • Supports up to 5 U-Prox Pircams
  • 250 users
  • 30 partitions
  • Communication WiFi and 2G (GSM/GPRS)
  • 1 SIM slot
  • Two ISM band radio interfaces, multi-channel multi-speed, up to 4800 meters (in open field)
  • 868MHz radio frequency
  • Secure bidirectional communication, tamper detection, 256-bit key
  • Built-in 2500 mAh backup battery with 24h battery life (battery cannot be charged at temperatures below 10°C)
  • Power supply: 12V DC, 0.35A
  • Operating temperature -10°C ~ +45°C (-10°C ~ +45°C)
  • Relative humidity up to 75%.
  • Dimensions: 167 (W) x 120 (H) x 25,4 mm
  • Weight: 245 g
  • Certified EN50131 Grade 2, Environmental Class II
