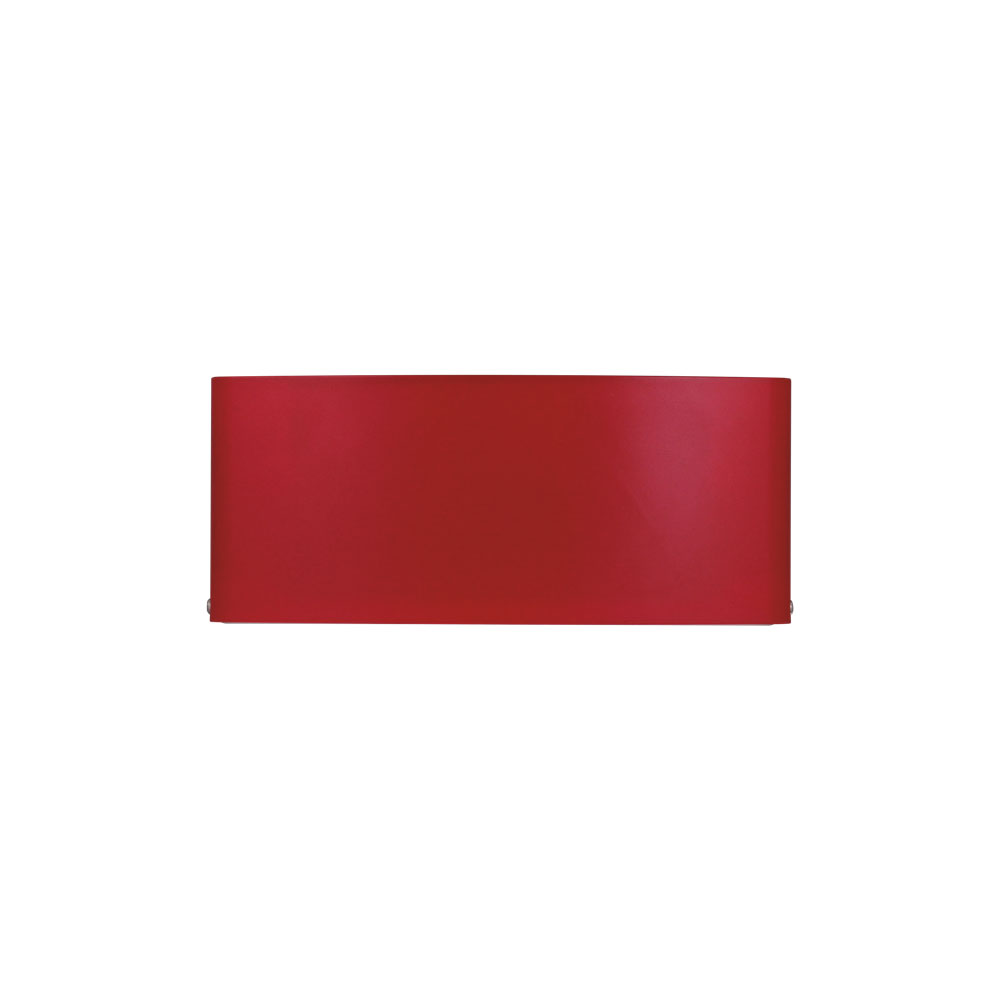

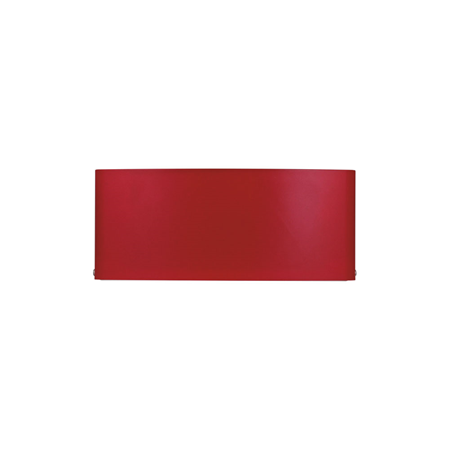

Red VESTA wireless emergency strobe light for home care assistance

Technical Specifications

• VESTA Radio-Controlled Emergency Strobe Light for Home Care Systems
• 3 LED indicators for visual alarm signaling
• Compatible with Telecare and Locator systems

Functionalities

• Visual signaling via LED flashes when an alarm is triggered
• Flash frequency: once every 2 seconds during the alarm
• Allows for visual location of the person requesting assistance
• Remote configuration of the areas and types of alarms that trigger the device
• Supports activation by intrusion, panic, emergency, medical, smoke/fire, flood, and gas alarms
• Signal duration configurable via the Gateway
• Remote on/off control via scenes programmed in the Gateway
• Tamper protection against unauthorized removal

Alarms

• Low-battery detection with notification transmission to the Gateway
• Periodic monitoring with signals sent every 15–18 minutes
• Failure alert when the Gateway does not receive monitoring signals within the specified time period

Communication interface

• Radio communication at 919 MHz
• Learning button for pairing with the Gateway
• Remote configuration via the web interface of the Gateway

Power supply

• Powered by 2 1.5V D-cell alkaline batteries
• Estimated battery life of up to 3 years, depending on configuration, environment, and usage
• On/off switch

Environmental

• IPX5 protection against water jets
• Operating temperature range: -10°C to +45°C
• Relative humidity up to 85%, non-condensing

Physical Characteristics

• Red housing
• Wall mounting via mounting bracket
• Dimensions: 192 x 82.5 x 56.3 mm

Contents

• VESTA red emergency strobe light VESTA-517 (ESL-1 (network))
• Wall-mount bracket
• Mounting screws and anchors
