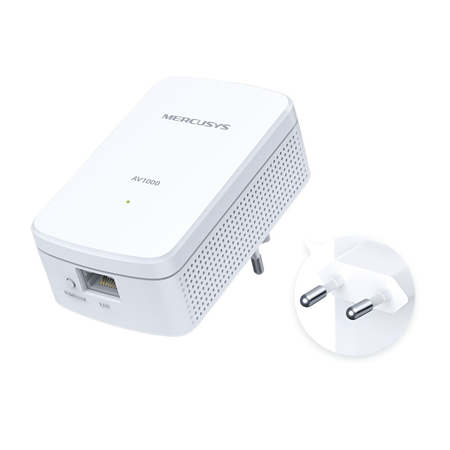

Mercusys AV1000 Powerline Kit

TPLINK-185

MP500 KIT

Main features

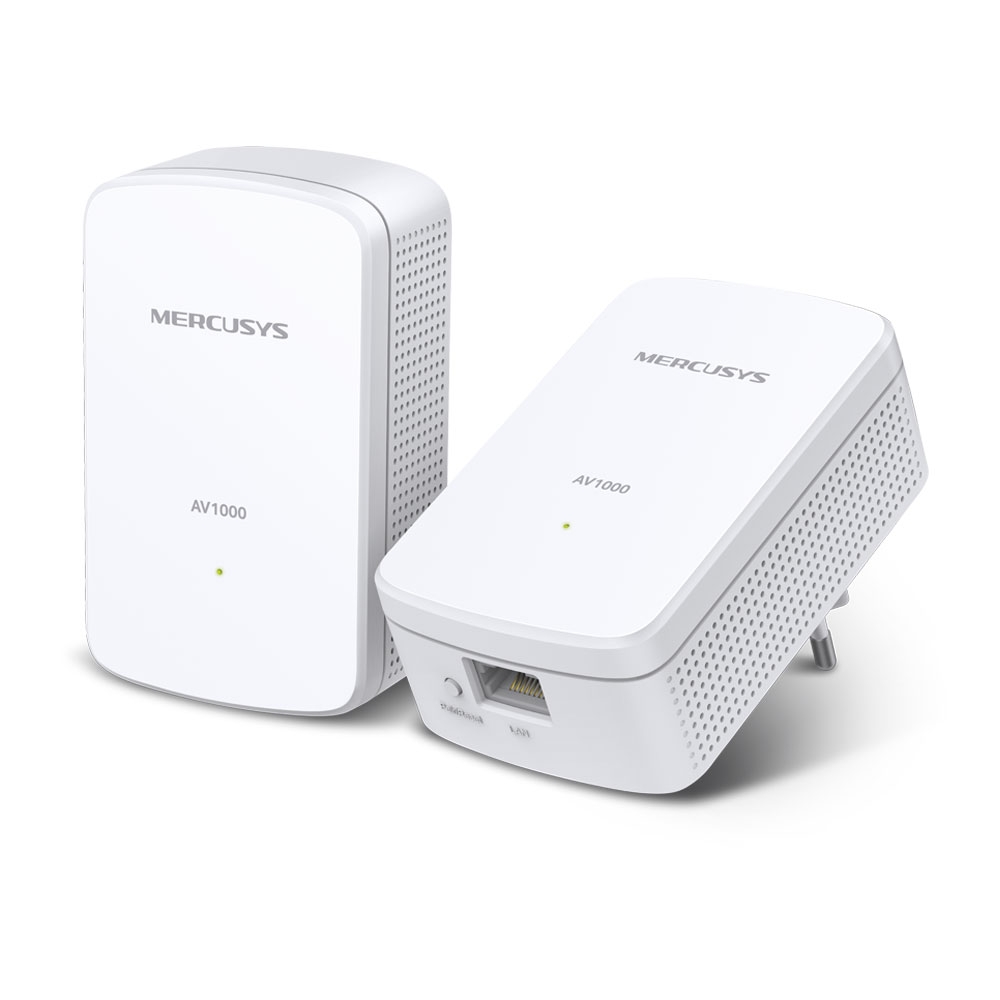

Mercusys AV1000 Powerline Kit consisting of 2 MP500 adapters
Data transmission up to 1000 Mbps over electrical network
1 Gigabit port per unit
128-bit AES encryption
Range up to 300 m
Compatible with HomePlug AV/AV2
Energy saving up to 85%
Plug & Play

Specifications

Includes 2 Powerline MP500 adapters
Powerline Technology: HomePlug AV2
Powerline speed: up to 1000 Mbps
Modulation: OFDM (PLC)
1 × Gigabit Ethernet port per unit
Range: up to 300 m over powerline
Physical button: Pair/Reset
Status LED: On
Power consumption:
- Maximum: 2.87 W
- Typical: 2.35 W
- Standby: 0.64 W
Powerline security: 128-bit AES encryption
Compatibility: HomePlug AV/AV2 adapters, all routers
Plug & Play installation, no configuration
Supported systems: Windows, macOS, Linux
Dimensions per unit: 101 × 60 × 36 mm
Mounting: desktop
Operating temperature: 0 °C to 40 °C
Storage temperature: -40 °C to +70 °C (-40 °F to +70 °C)
Relative operating humidity: 10-90 % non-condensing
Storage humidity: 5-90 % non-condensing
Certifications: CE, RoHS
