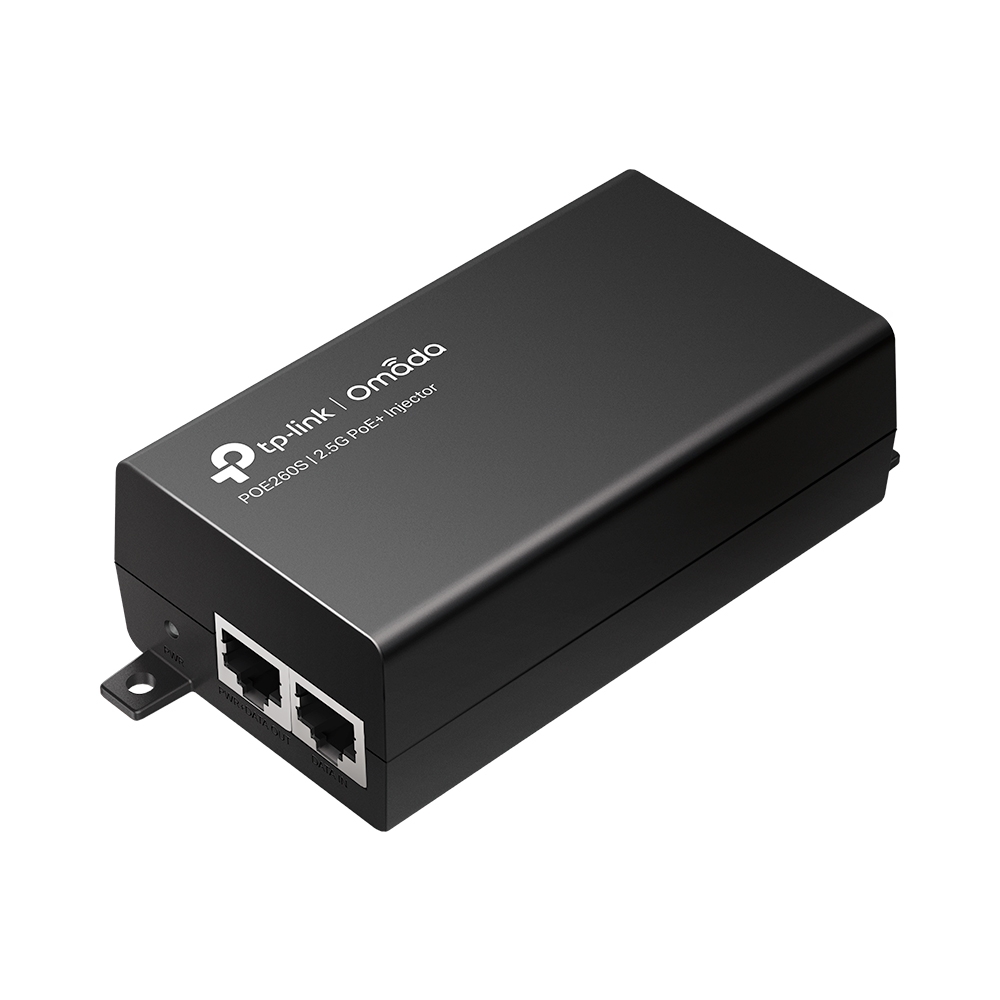

Omada by TP-Link 2.5G PoE+ injector with 30 W, 2 RJ45 ports and wall or desktop mounting

Technical Specifications

• Omada by TP-Link 2.5G PoE+ Injector
• Compatible with IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3af, and IEEE 802.3at
• Ethernet speeds of 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps
• PoE power output up to 30 W
• Automatic detection of IEEE 802.3af/at PD devices
• Automatic adjustment of power output based on device requirements
• PoE power LED indicator

Functionalities

• Simultaneous data and power transmission via Ethernet cable
• Plug & Play with no configuration required

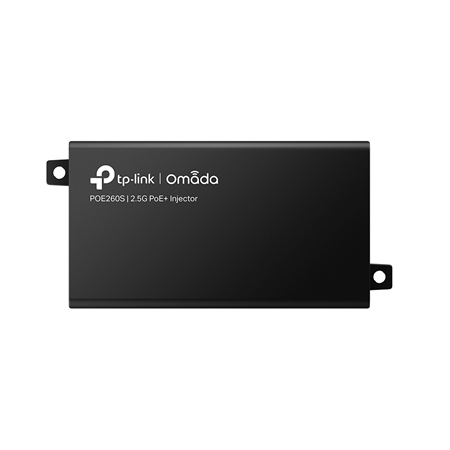

• Wall-mounted or desktop installation
• Built-in power supply

Communication Interface

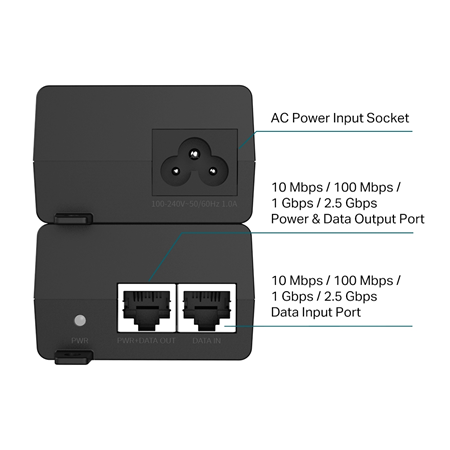

• 1 RJ45 data input port at 10 Mbps / 100 Mbps / 1 Gbps / 2.5 Gbps
• 1 RJ45 data output and power port (10 Mbps / 100 Mbps / 1 Gbps / 2.5 Gbps)
• 1 AC power outlet
• 10BASE-T via Cat. 3, 4, or 5 UTP and 100 Ω EIA/TIA-568 STP, up to 100 m
• 100BASE-TX via Cat. 5 or 5e UTP and 100 Ω EIA/TIA-568 STP, up to 100 m
• 1000BASE-T via Cat. 5, 5e, or 6 UTP, up to 100 m
• 2.5GBASE-T over Cat. 5e or higher UTP, up to 100 m

Power

• Input: 100–240 V AC, 50/60 Hz
• Output with automatic power detection up to 30 W

Environmental

• Operating temperature: 0 °C to +40 °C
• Operating humidity: 10%–90% RH, non-condensing
• Storage temperature: -40 °C to +70 °C
• Storage humidity: 5%–90% RH, non-condensing

Physical Characteristics

• Dimensions: 125 × 59.4 × 36.8 mm

Contents

• Omada by TP-Link TPLINK-324 (POE260S) 2.5G PoE+ Injector
• Power cable
• RJ45 Cable
• Installation Guide
• Wall-mount kit

Certifications and Standards

• FCC
• CE
• RoHS
