cudy

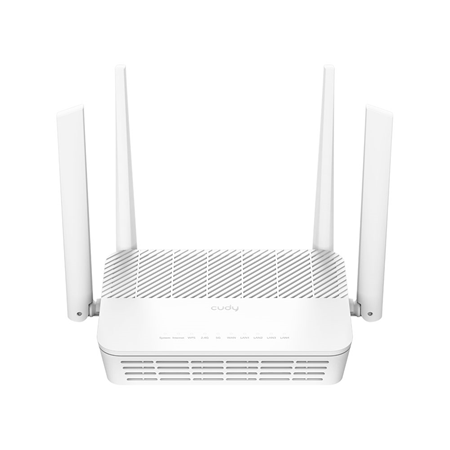

CUDY-83 | AX3000 2.5G Mesh Wi-Fi 6 PoE Router
CUDY-83WR3000PAX3000 2.5G Mesh Wi-Fi 6 PoE Router
CUDY-83
CUDY-83_B
CUDY-83_C

AX3000 2.5G Mesh Wi-Fi 6 PoE Router

CUDY-83

WR3000P

Main features

  • Dual band WiFi 6 router with AX3000 speed
  • 2.5G WAN port with PoE
  • Four Gigabit LAN ports
  • Coverage up to 130 m²
  • Dual-core CPU 1.3 GHz
  • 512 MB RAM
  • EasyMesh function
  • Control by app or web
  • VPN and VLAN support

Specifications

  • AX3000 Dual Band WiFi 6 Router with EasyMesh function
  • WiFi speed: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
  • 1.3 GHz dual-core ARM Cortex-A53 CPU
  • Memory: 512 MB DDR4 RAM / 128 MB NAND Flash
  • Wireless Technologies: MU-MIMO, OFDMA, BSS Coloring, Beamforming
  • Antennas: 4 external fixed antennas (2T2R + additional stream)
  • Maximum gain: 5.3 dBi (2.4 and 5 GHz)
  • WiFi 6 with 160 MHz channel
  • Coverage: up to 130 m² / Supports up to 200 connected devices
  • Operating Modes: Router, Access Point, Repeater, WISP, Client
  • Ports: 1 RJ45 2.5G WAN (PoE IN), 4 RJ45 Gigabit LAN, 1 USB-A 2.0
  • Power: 12 VDC 1.5 A / 802.3af/at PoE / Passive PoE 48-57 V
  • Maximum power consumption: 9 W
  • VPN client/server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
  • Advanced features: SPI Firewall, NAT, DoS, IGMP Proxy/Snooping, Port Forwarding, QoS, Parental Controls
  • Management: Local web, Cudy App, remote control in the cloud, TR-069
  • Updating via web, app or remote (OTA)
  • IPv4 and IPv6 support (DHCP, PPPoE, Static, Relay, MAP-E, DS-Lite, etc.)
  • IPTV/VLAN support per port
  • LED indicators: System, Internet, 2.4 GHz, 5 GHz, WAN, LAN, USB
  • Physical buttons: Power, Reset, WPS
  • Operating temperature: 0 °C to +40 °C (32 °F to +40 °C)
  • Storage temperature: -40 °C to +70 °C (-40 °C to +70 °C)
  • Operating humidity: 10 %-90 % (non-condensing)
  • Storage humidity: 5 %-95 % (non-condensing)
  • Installation: Tabletop or wall mounting
  • Dimensions: 173 × 123.8 × 33 mm
  • Certifications: CE, FCC
REFERENCE / MODEL CUDY-83 / WR3000P
Special Protection No
Technology IP || WIFI
PoE PoE || PoE+
Frequency 2.4/5 GHz (AX)
Installation environment Indoor
Bandwidth 3 Gbps
Installation Desktop || Wall
WiFi Generation WiFi 6
Mesh Yes
