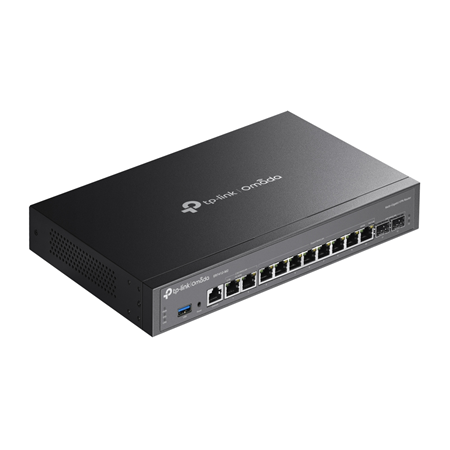

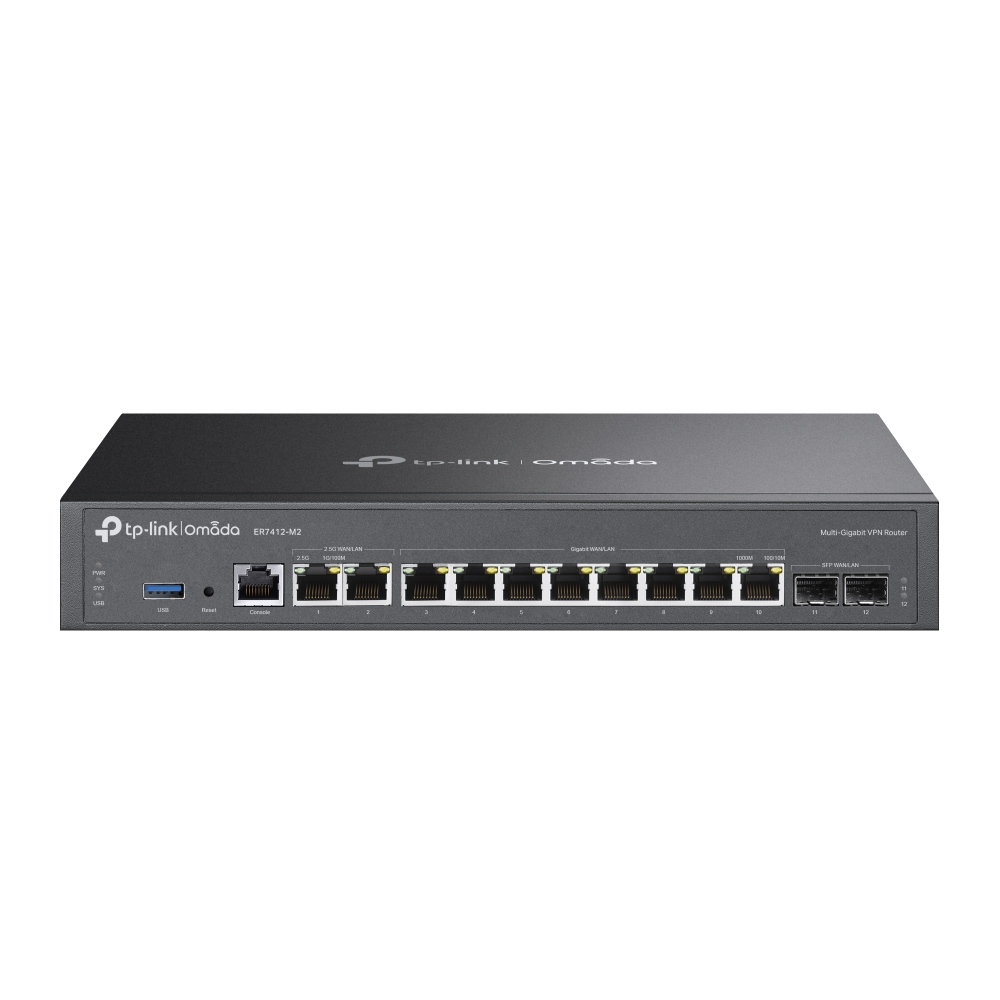

Omada Multi-Gigabit VPN Router

TPLINK-145

ER7412-M2

Main features

High performance Omada VPN Router
2.5G + 1G ports
1 WAN/LAN 2.5G, 2 WAN/LAN Gigabit, 1 WAN/LAN SFP and 2 LAN ports
Full support for advanced VPN
Deep Inspection Service (IPS) engine, intrusion prevention, bandwidth control
Management from Omada SDN

Specifications

High performance router for professional network
1 × 2.5G WAN/LAN RJ45 port
2 × Gigabit WAN/LAN RJ45 ports
1 × 1G WAN/LAN SFP 1G port
2 × Gigabit RJ45 LAN ports
Support for up to 4 simultaneous WAN connections (1 SFP + 3 RJ45)
Load balancing, WAN backup and multi-port NAT features
Maximum NAT throughput: up to 6 Gbps
IPSec VPN throughput: up to 950 Mbps
Simultaneous VPN tunnels:
- IPSec: 300
- PPTP/L2TP: 100
- OpenVPN: 100
- SSL VPN: 100
- GRE: 100
VPNs supported: IPSec, OpenVPN, SSL VPN, PPTP, L2TP, GRE
IPS (Intrusion Prevention System) and Threat Detection Functionality
Advanced firewall with IP/MAC/port/protocol filtering
Bandwidth control by IP or application
Access control lists, captive portal, customized portal
DoS security, IP-MAC binding, ARP inspection
Support for 802.1Q VLAN, DHCP server/relay, NAT, ALG
Management: Omada SDN platform, local controller, mobile app, CLI
Dual stack IPv4/IPv6 support
Memory: 8 GB eMMC + 1 GB DDR4
Power supply: 12 V / 1.5 A
Maximum power consumption: 11.7 W
Operating temperature: 0 °C to 40 °C
Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Operating humidity: 10-90 % non-condensing
Storage humidity: 5-90 % non condensing
Surge protection: 6 kV
Fanless design
Dimensions: 226 × 131 × 35 mm
Certifications: CE, FCC, RoHS

REFERENCE / MODEL	TPLINK-145 / ER7412-M2
Special Protection	No
Technology	IP
PoE	No
Fiber Ports	1 (Gigabit)
Installation environment	Indoor
Material	Metal
Managed	Browser \|\| Cloud
Installation	Desktop
Fan	No
Sub-brand	Omada by TP-Link
