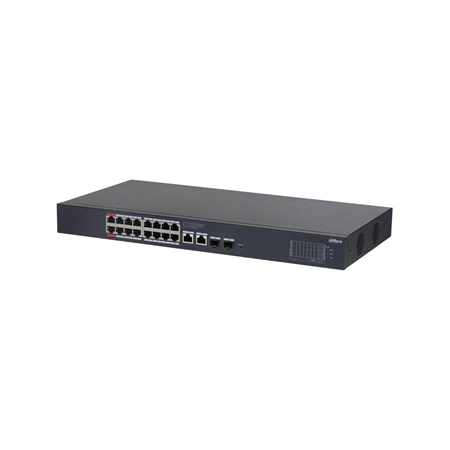

Dahua Gigabit PoE Switch cloud-manageable CS4000 Series

DAHUA-4969

DH-CS4220-16GT-240-V2

View previous model

18-port L2 Managed Cloud Switch with 16 PoE ports DAHUA-4250

Main features

Dahua PoE Switch CS4000 Series
20 Gigabit ports, 16 of them PoE with a total budget of 240 W
Local management via web or cloud with DoLynk Care
Compatible with PoE 802.3af/at/bt and Hi-PoE
Includes PoE Watchdog, VLAN, STP/RSTP and loop protection
PoE transmission up to 250 m
Metal design for desktop or rack installation

Specifications

Technical Features

Dahua CS4000 Series Gigabit PoE Gigabit PoE switch
16 Gigabit PoE ports
2 uplink RJ45 Gigabit ports
2 Gigabit SFP uplink ports
40 Gbps switching capacity
29.76 Mpps forwarding rate
4 Mbit buffering
8K MAC table
Jumbo Frame up to 15K bytes

PoE

240 W total budget
Ports 1-2 up to 90W, ports 3-16 up to 30W
Protocols IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
PoE transmission up to 250 m (extended mode)
Power management and automatic shutdown in case of overload
Pin assignment: 1,2,4,5 (V+), 3,6,7,8 (V-)

Functions

PoE Watchdog with automatic port restart
Loop and broadcast storm protection
STP/RSTP for network redundancy
Port-based VLAN
IEEE 802.3x flow control

Management

Local management via web interface
Cloud management via DoLynk Care platform
Supported mobile application
Logs and fault alarms

Power supply

Internal power supply 100-240 V AC, 47-63 Hz, 4 A max.
Standby power consumption ≤8.3 W, at full load 265 W

Environmental

Operating temperature: -10 °C ~ +55 °C
Humidity: 5%-95% non-condensing
Shock protection: 8 kV air, 6 kV contact
Lightning protection: common mode 4 kV, differential mode 2 kV

Physical characteristics

Material: sheet metal
Rack or tabletop installation
Dimensions: 440 × 220 × 44 mm
Net weight: 2.37 kg
Gross weight: 3.02 kg

Contents

DAHUA-4969 Gigabit Cloud Managed PoE Switch (DH-CS4220-16GT-240-V2)

Certifications

CE, FCC, RoHS

REFERENCE / MODEL	DAHUA-4969 / DH-CS4220-16GT-240-V2
Range	250m
Special Protection	No
Technology	Cloud \|\| FIBER \|\| IP \|\| POE \|\| Watchdog
PoE	16 PoE \|\| 16 PoE+ \|\| Hi-PoE \|\| PoE++
CCTV Mode	Yes
Fiber type	SFP port
Fiber Ports	2 (Gigabit)
RJ45 Ports	20 Gigabit
Installation environment	Indoor
Material	Metal
Managed	Browser \|\| Cloud \|\| DOLINK Cloud \|\| L2
Ring	RSTP \|\| STP
PoE budget	201-250W
Installation	Desktop \|\| Rackable
Fan	No
Uplink Ports	2 RJ45 Gb \|\| 2 SFP Gb
Switch Type	Access
Power Input	Power Supply Included

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
