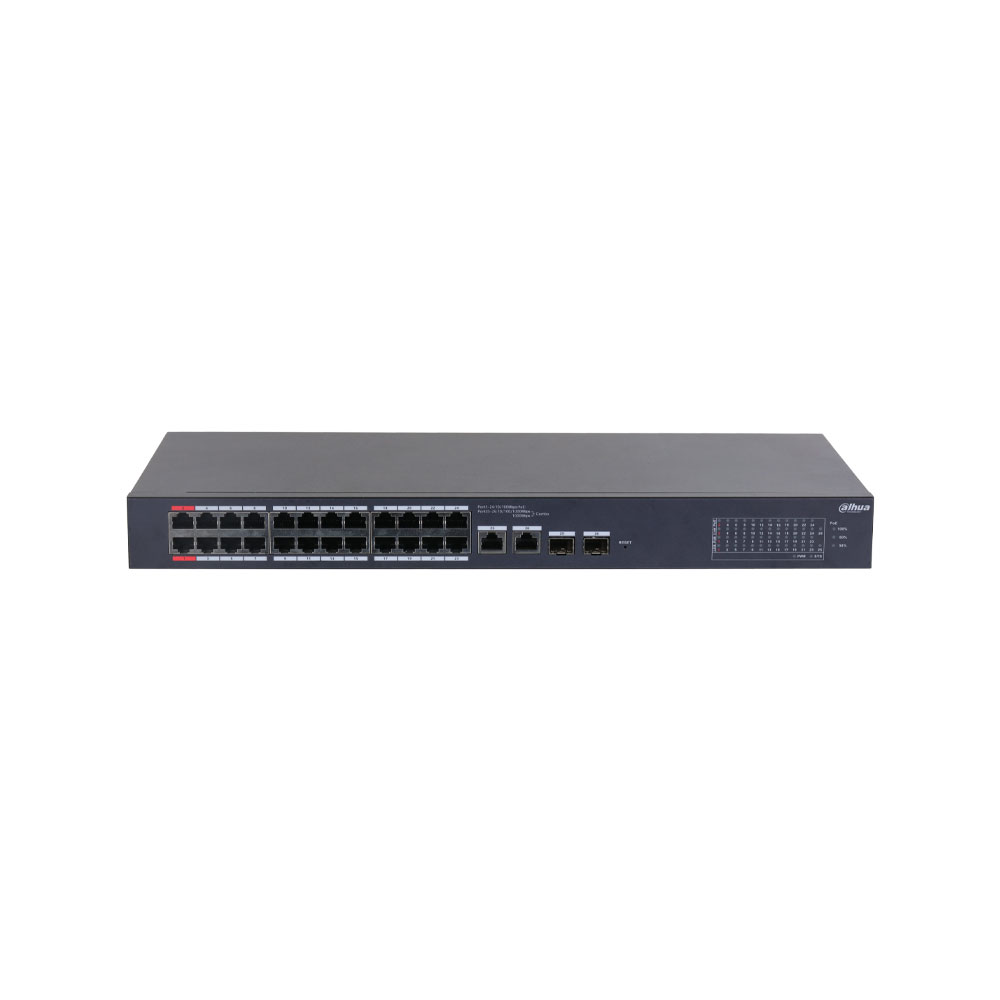

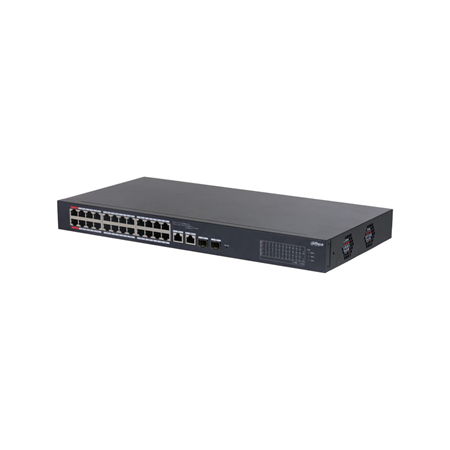

Dahua 26-Port Cloud Managed Switch with 24-Port PoE

Technical features

• Dahua Managed Cloud Switch
• 24 RJ-45 10/100 Mbps PoE ports
• 2 combo RJ-45 10/100/1000 Mbps + SFP 1000 Mbps ports
• IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z compliant
• IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt support
• 8.8 Gbps switching capacity
• 6.55 Mpps forwarding rate
• 15K Byte Jumbo Frame Size
• 8K MAC table
• 32 VLANS

Features

• Cloud management through DoLynk Care (app and web)
• Topology visualization via LLDP
• Intelligent PoE with power management
• PoE Watchdog with automatic restart of PoE ports
• Long Distance PoE up to 250 m
• Loop protection with automatic alarm and elimination
• IEEE 802.3x flow control
• DHCP client

Power supply

• Internal power supply 100-240 VAC, 47-63 Hz
• Standby power consumption ≤ 8.5 W
• Maximum power consumption 400 W
• Total PoE power ≤ 375 W
• PoE ports 1-2 up to 90 W; ports 3-24 up to 30 W

Environmental

• Operating temperature -10 °C to +55 °C (-10 °C to +55 °C)
• Operating humidity 5%-95% (non-condensing)
• Storage temperature -40 °C to +70 °C (-40 °C to +70 °C)
• ESD protection by air discharge 8 kV and contact 6 kV
• Lightning protection in common mode 4 kV and differential mode 2 kV

Physical characteristics

• Metal housing
• Tabletop or rackmount installation
• Dimensions 440 × 220 × 44 mm
• Net weight: 2.62 kg
• Gross weight: 3.22 kg

Contents

• DAHUA-4993 26-Port PoE Managed Cloud Switch (DH-CS4226-24ET-375-V2)
