dahua

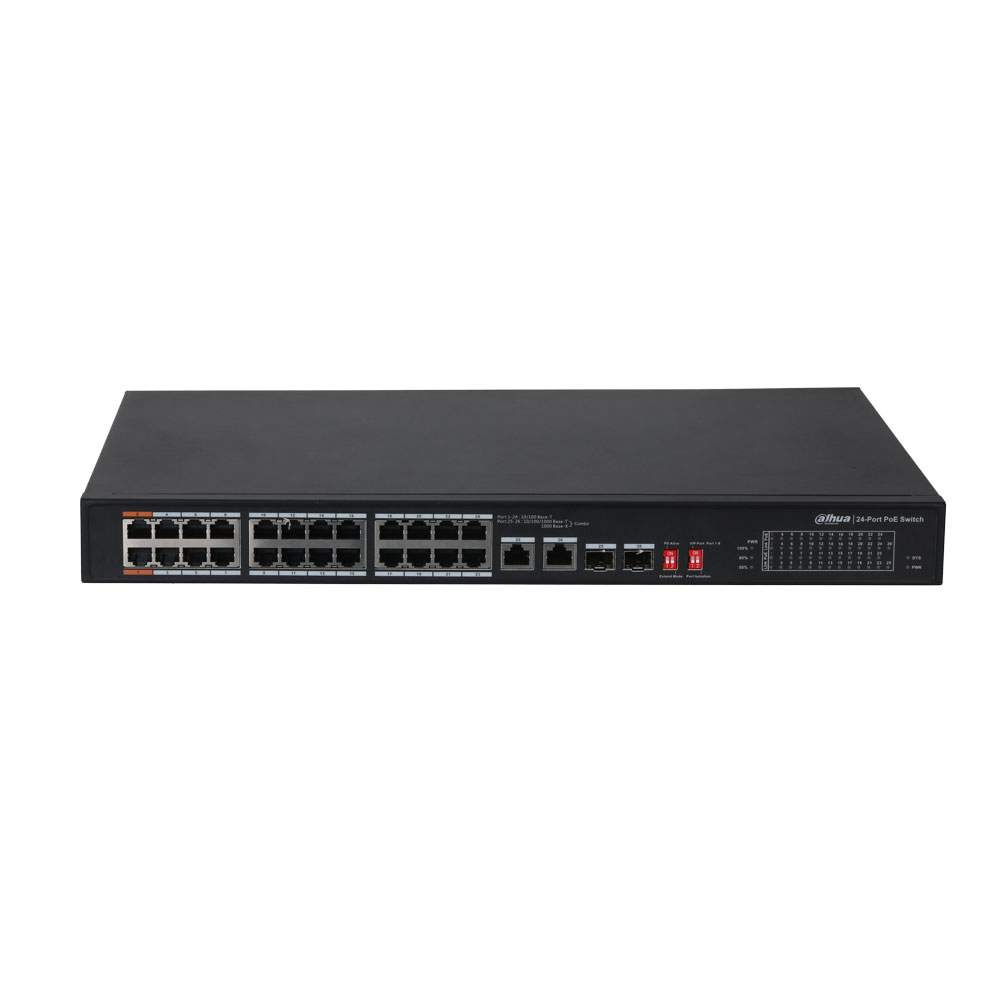

DAHUA-2843 | SWITCH DAHUA FAST ETHERNET OF 24 POE 240W + 2 UPLINK + 2 SFP COMBO
DAHUA-2843PFS3226-24ET-240SWITCH DAHUA FAST ETHERNET OF 24 POE 240W + 2 UPLINK + 2 SFP COMBO

SWITCH DAHUA FAST ETHERNET OF 24 POE 240W + 2 UPLINK + 2 SFP COMBO

DAHUA-2843

PFS3226-24ET-240

This product is discontinued
It is replaced by the new version DAHUA-4244

Main features

  • Dahua L2 unmanageable PoE switch
  • 24 PoE Fast Ethernet ports
  • 2 Gigabit RJ45 Uplink ports
  • 2 SFP Combo Gigabit ports
  • Smart PoE
  • PoE Watchdog
  • PoE consumption up to 240W
  • Smooth transmission
  • It supports IEEE802.3af, IEEE802.3at, Hi-PoE and IEEE802.3bt standards
  • Smooth transmission
  • 8K MAC address capacity
  • Plug & Play

Specifications

DAHUA

specs

     24 10 / 100M PoE RJ45 ports
     2 10/100 / 1000M RJ45 uplink ports
     2 SFP combo ports (1000M)
     PoE consumption: ≤60W ports 1 and 2, ≤30W ports 3 to 24, ≤240W in total
     PoE protocols: IEEE802.3af (PoE), IEEE802.3at (PoE +) and Hi-PoE
     8.8Gbps switching capacity
     6.5472Mpps packet transfer rate
     Packet buffer memory: 4MB
     MAC addresses: 8K
     Standards: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
     Power supply: 100V ~ 240V AC
     Consumption: 5W ~ 240W
     Operating temperature: -10 ° C ~ + 55 ° C
     10% ~ 90% operating humidity
     Storage humidity 5% ~ 95%
     Dimensions: 440 (W) x 44 (H) x 300 mm



Documentation

Language Name Type Action
EN
Manufacturer's Data Sheet

Comments

There are no comments for the product DAHUA-2843.
