Mercusys 8-Port Fast Ethernet Switch

TPLINK-196

MS108

Main features

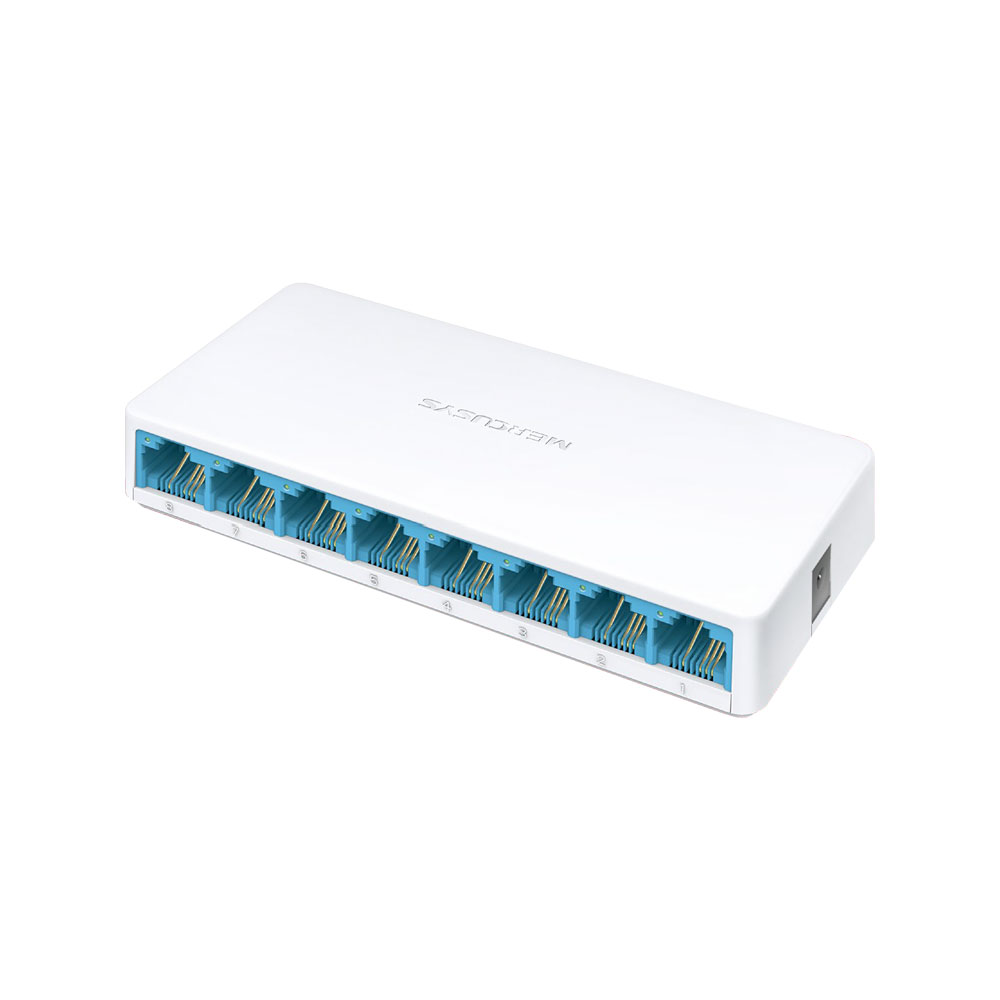

Mercusys MS108 Switch
8 ports 10/100 Mbps
Plug & Play, no configuration required
Auto MDI/MDIX
Compact and fanless housing
Ideal for offices, homes or residences
LED per port
External power supply

Specifications

Unmanageable desktop switch with 8 10/100 Mbps RJ45 ports
Auto-Negotiation and Auto MDI/MDIX support
Port speeds: 10/100 Mbps in half duplex, 20/200 Mbps in full duplex
Standards and protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x (CSMA/CD)
Switching capacity: 1.6 Gbps
Buffer size: 768 KB
Transfer method: Store and Forward
Jumbo frame: 2 KB
LEDs: 8 Ethernet ports + Power LEDs
External power supply: 5 V / 0.6 A (adapter included)
Fanless, silent and energy-saving design
Mounting: desktop
Dimensions: 127 × 60.2 × 22 mm
Package contents:
- MS108 switch
- Power adapter
- Quick installation guide

REFERENCE / MODEL	TPLINK-196 / MS108
Special Protection	No
Technology	IP
PoE	No
RJ45 Ports	8 (Fast Ethernet)
Installation environment	Indoor
Material	Plastic
Installation	Desktop
Fan	No
Switch Type	Access
Power Input	Power Supply Included
Sub-brand	Mercusys

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
