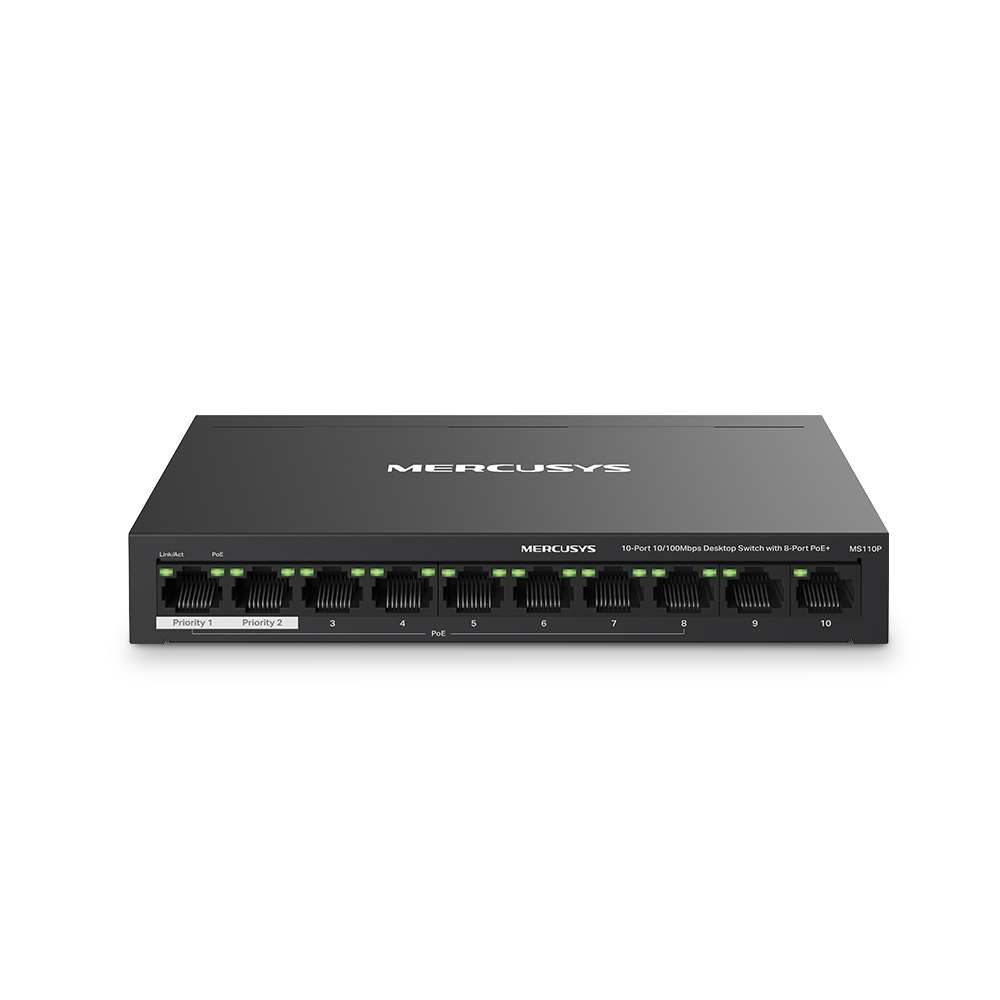

TPLINK-203 | Mercusys 10-port Fast Ethernet Switch with 8 PoE+ ports
TPLINK-203MS110PMercusys 10-port Fast Ethernet Switch with 8 PoE+ ports
Volver a Switching
Products
Networking
Switching
Unmanaged
TPLINK-203
TPLINK-203
TPLINK-203_B
TPLINK-203_C
TPLINK-203_D

Mercusys 10-port Fast Ethernet Switch with 8 PoE+ ports

TPLINK-203

MS110P

Main features

  • Mercusys MS110P PoE Switch
  • 10 10/100 Mbps RJ45 ports, 8 with PoE+ delivery up to 30 W per port (65 W total)
  • Extend and Isolation modes for greater reach and segmentation
  • 2 Gbps switching capacity
  • 2K MAC table
  • Fanless
  • Compact housing
  • Plug & Play

Specifications

  • Unmanaged desktop switch with compact enclosure
  • 10 RJ45 10/100 Mbps ports with Auto-Negotiation and Auto MDI/MDIX
  • 8 ports with PoE+ delivery up to 30 W per port
  • Total PoE delivery: up to 65 W
  • Compatible with IEEE 802.3af/at compliant PD devices
  • Switching capacity: 2 Gbps
  • MAC address table: 2K with self-learning and self-aging
  • Forwarding method: Store and Forward

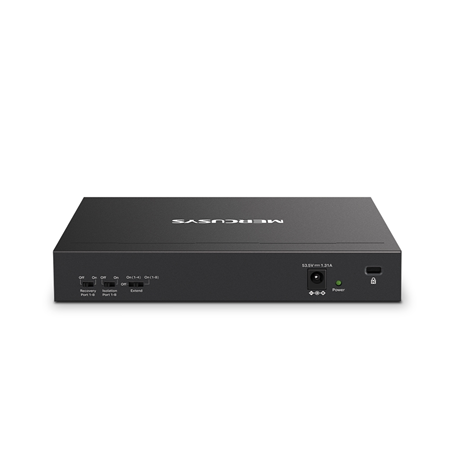

  • Advanced Modes: Extend Mode (PoE up to 250 m), Isolation Mode, Recovery Mode
  • Flow Control: Yes
  • Standards and protocols: IEEE 802.3i, 802.3u, 802.3x
  • Cabling type:
    • 10BASE-T: UTP/STP Cat.3 or higher (≤100 m)
    • 100BASE-TX: UTP/STP Cat.5 or higher (≤100 m)
  • LEDs: power, link/activity, PoE status
  • PoE power supply per pin: Power+ (3/6), Power- (1/2)
  • Maximum power consumption:
    • Without PD connected: 2.96 W
    • With 65 W PD connected: 77.52 W
  • Thermal dissipation:
    • Without PD connected: 10.064 BTU/h
    • With 65 W PD connected: 263.568 BTU/h
  • Operating temperature: 0 °C to 40 °C
  • Storage temperature: -40 °C to +70 °C (-40 °F to +70 °C)
  • Operating humidity: 10-90 % non-condensing
  • Storage humidity: 5-90 % non-condensing
  • Fanless design
  • Mounting: benchtop
  • Dimensions: 171 × 98 × 27 mm
  • Certifications: CE, RoHS
REFERENCE / MODEL TPLINK-203 / MS110P
Special Protection No
Technology IP || POE
PoE 8 PoE+
CCTV Mode Yes
RJ45 Ports 10 (Fast Ethernet)
Installation environment Indoor
PoE budget 51-100W
Installation Desktop
Fan No
Switch Type Access
Sub-brand Mercusys
