TPLINK-204 | Mercusys 6-port Fast Ethernet Switch with 4 PoE+ ports
TPLINK-204MS106LPMercusys 6-port Fast Ethernet Switch with 4 PoE+ ports
Volver a Switching
Products
Networking
Switching
Unmanaged
TPLINK-204
TPLINK-204
TPLINK-204_B
TPLINK-204_C
TPLINK-204_D

Mercusys 6-port Fast Ethernet Switch with 4 PoE+ ports

TPLINK-204

MS106LP

Main features

  • Mercusys MS106LP PoE Switch
  • 6 10/100 Mbps ports, 4 with PoE+ delivery up to 30 W per port
  • Total delivery of 40 W

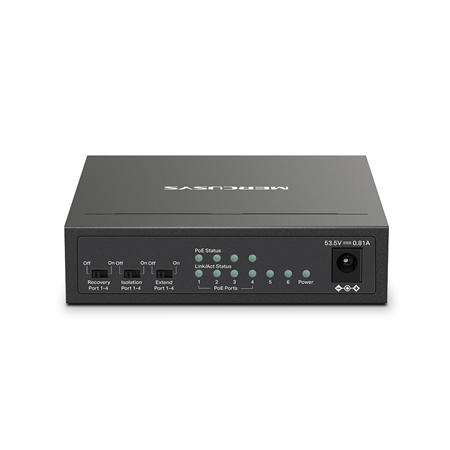

  • Extend, Isolation and Recovery modes
  • 2K MAC table
  • 1.2 Gbps switching capacity
  • Compact and fanless housing
  • Plug & Play

Specifications

  • Unmanaged desktop switch with 6 10/100 Mbps RJ45 ports
  • 4 ports with PoE+ delivery up to 30 W per port
  • Total PoE delivery: up to 40 W
  • Compatible with IEEE 802.3af/at compliant PD devices
  • Auto-Negotiation and Auto MDI/MDIX
  • Switching capacity: 1.2 Gbps
  • MAC address table: 2K with self-learning and self-aging
  • Forwarding Method: Store and Forward
  • Advanced Modes: Extend Mode (PoE range up to 250 m), Isolation Mode, Recovery Mode
  • Standards and protocols: IEEE 802.3i, 802.3u, IEEE 802.3x
  • Cabling type:
    • 10BASE-T: UTP/STP Cat.3 or higher (≤100 m)
    • 100BASE-TX: UTP/STP Cat.5 or higher (≤100 m)
  • LEDs: power, link/activity, PoE status
  • PoE power per pin: Power+ on 3/6, Power- on 1/2
  • Max. power consumption:
    • Without PD connected: 1.87 W
    • With 40 W PD connected: 44.8 W
  • Thermal dissipation:
    • Without PD connected: 6.34 BTU/h
    • With 40 W PD connected: 152.32 BTU/h
  • Operating temperature: 0 °C to 40 °C
  • Storage temperature: -40 °C to +70 °C (-40 °C to +70 °C)
  • Operating humidity: 10-90 % non-condensing
  • Storage humidity: 5-90 % non-condensing
  • Dimensions: 99.8 × 98 × 25 mm (99.8 × 98 × 25 mm)
  • Fanless design
  • Mounting: desktop
  • Certifications: CE, RoHS
REFERENCE / MODEL TPLINK-204 / MS106LP
Special Protection No
Technology IP || POE
PoE 4 PoE+
CCTV Mode Yes
RJ45 Ports 6 (Fast Ethernet)
Installation environment Indoor
PoE budget 0-50W
Installation Desktop
Fan No
Switch Type Access
Sub-brand Mercusys
