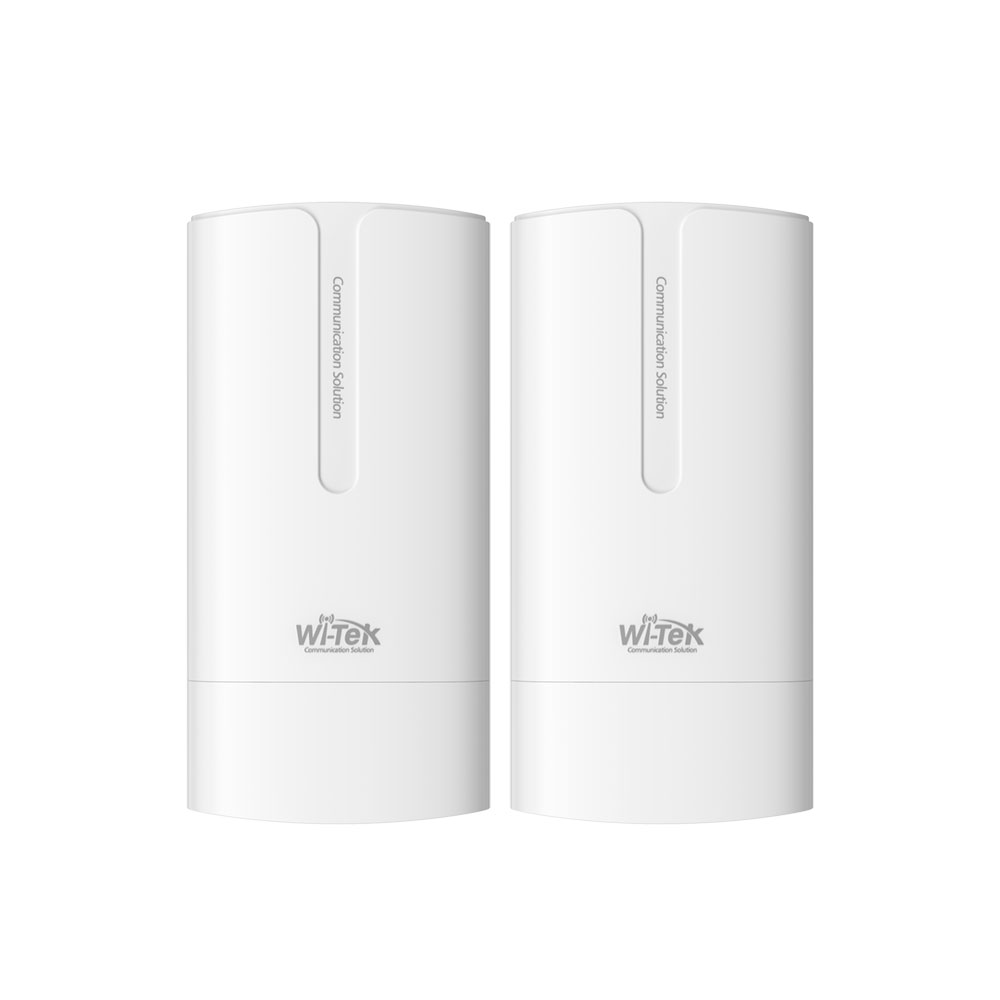

Wi-Tek 5 GHz outdoor WiFi transmission kit for CCTV up to 3 km

WITEK-0169

WI-CPE511H-KIT V2

Main features

  • Wi-Tek kit for point-to-point or multipoint transmission
  • 5 GHz band up to 867 Mbps
  • 12 dBi directional antenna
  • Range up to 3 km
  • Includes 2 units with 24 V passive PoE
  • IP65 housing
  • Local and cloud management

Specifications

  • Wireless IP CCTV Transmitter Kit (2 pcs.)
  • Frequency band: 5,150 ~ 5,850 GHz (channels 36~165)
  • Wireless speed up to 867 Mbps
  • Standards: IEEE 802.11a/n/ac (2×2 MU-MIMO)
  • Supported Modes: Point-to-Point (PTP), Point-to-Multipoint (PTMP), CPE, Repeater, WISP
  • Range up to 3 km
  • Integrated 12 dBi directional antenna
  • Aperture: 33° horizontal / 33° vertical
  • Transmit power: up to 19 dBm (adjustable)

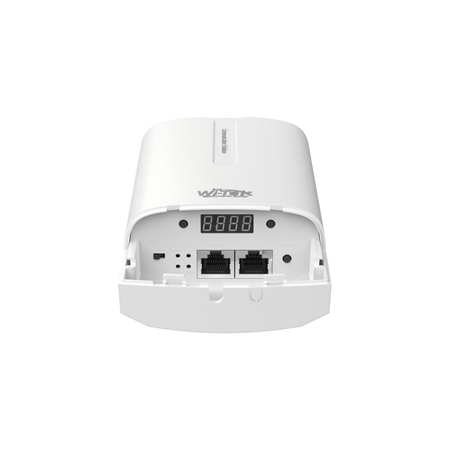

  • Quick configuration without software, with DIP switch, LED display and + / - buttons
  • WAN PoE IN port and LAN port: RJ45 10/100 Mbps
  • Management: local web interface and cloud Wi-Tek
  • Passive PoE power supply 24 V (0.5 A)
  • Maximum power consumption: <5 W
  • Operating temperature: -40 °C to +70 °C (-40 °C to +70 °C)
  • Storage temperature: -40 °C to +85 °C (-40 °C to +85 °C)
  • Operating humidity: 5 %-95 % (non-condensing).
  • Protections:
    • ESD: ±8 kV (air) / ±6 kV (contact)
    • Lightning protection: 2 kV

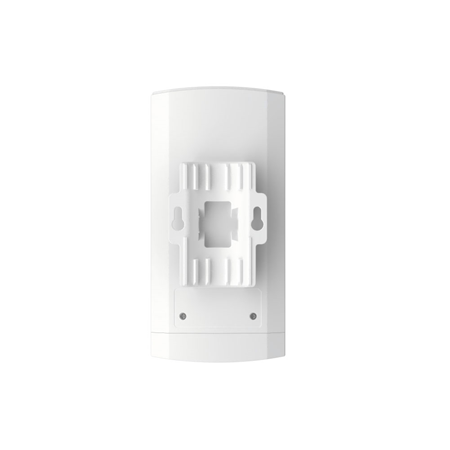

  • Wall or pole installation
  • UV stabilized plastic housing, protection IP65
  • Dimensions per unit: 180 × 88 × 59 mm
  • Unit weight: 0.26 kg
  • Packing dimensions: 260 × 190 × 100 mm
  • Gross weight: 1.06 kg
  • Kit contents:
    • 2 WI-CPE511H devices
    • 2 PoE 24 V PoE adapters
    • 2 Ethernet cables
    • 2 fixing accessories
    • 1 quick guide
REFERENCE / MODEL WITEK-0169 / WI-CPE511H-KIT V2
Range 3 km
Ingress protection IP65
Special Protection No
Technology WIFI
PoE 24V passive
Frequency 5GHz (AC)
RJ45 Ports 2 (Fast Ethernet)
Installation environment Outdoor
Bandwidth 900 Mbps
Managed Browser || Cloud
Installation Pole || Wall
