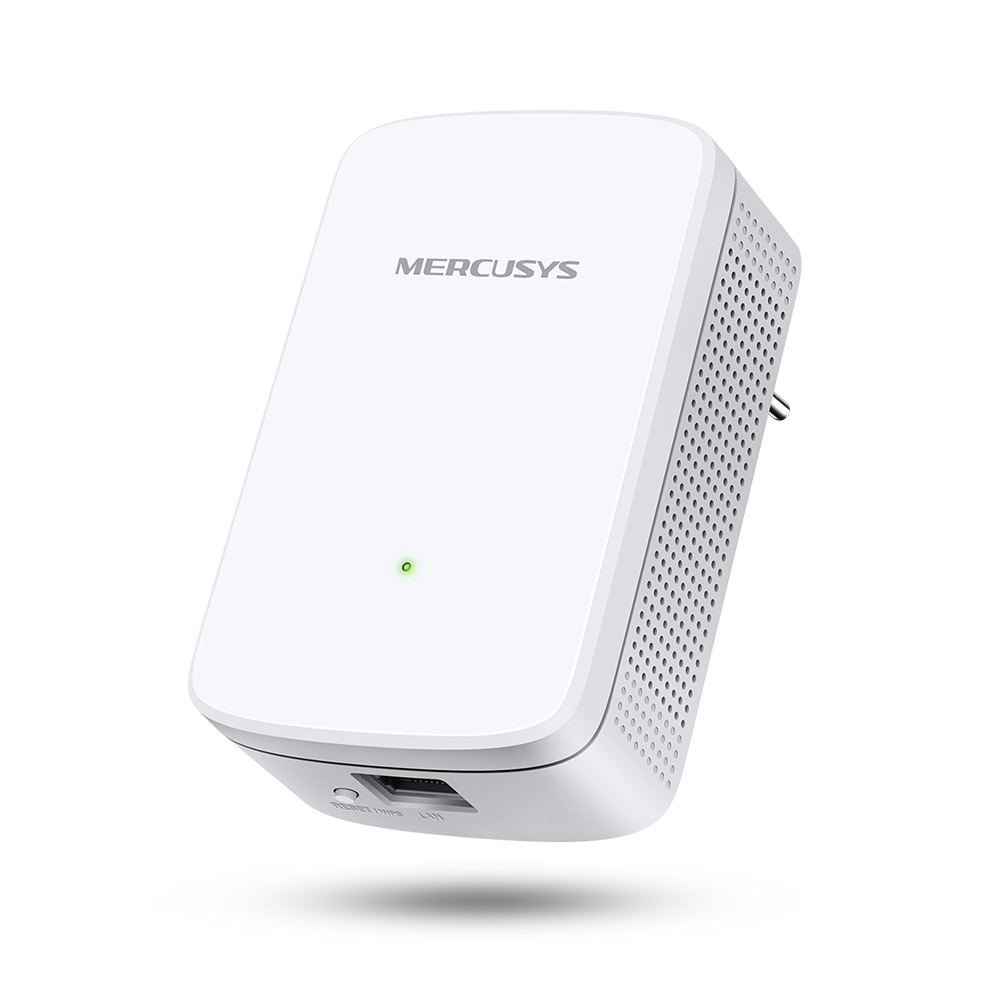

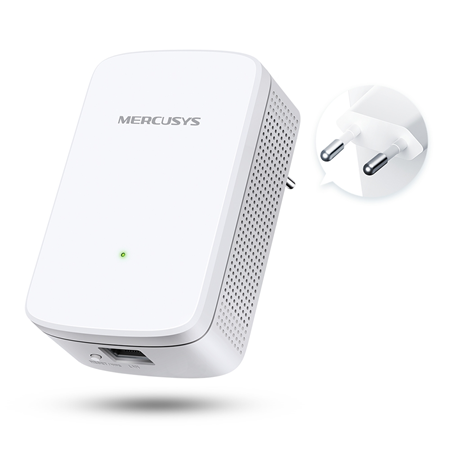

Mercusys 300Mbps Wi-Fi N Range Extender

TPLINK-188

ME10

Main features

Mercusys N300 Wi-Fi network extender
Single band 2.4 GHz with speed up to 300 Mbps

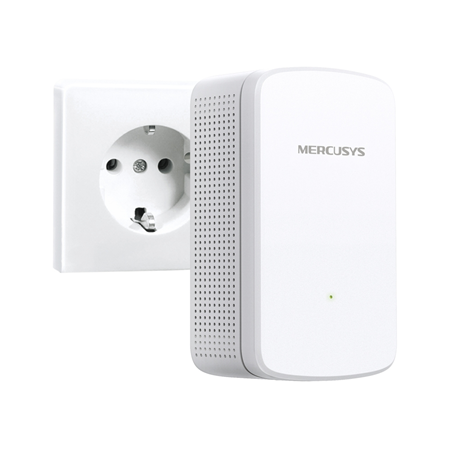

Wall mountable
WPS button
Fast Ethernet port
Access point mode
WPA2 security
Compact design and Plug & Play

Specifications

Wireless standards: IEEE 802.11b/g/n (2.4 GHz)
Frequency: 2.4 - 2.5 GHz
Wireless speed: up to 300 Mbps
Transmit power: ≤ 20 dBm
Receive sensitivity:
- 11B 1M: < -94 dBm
- 11N HT40 MCS7: < -72 dBm
Antennas: Internal (not specified)
Ethernet Port: 1 × 10/100 Mbps RJ45
Physical button: Reset / WPS
Operating modes: Network extender, Access point
Wireless Security: WPA-PSK / WPA2-PSK
Installation: Plug & Play, wall mount
Maximum power consumption: ≤ 3.2 W
Dimensions: 101 × 60 × 36 mm
Operating temperature: 0 °C to 40 °C
Operating relative humidity: 10-90 % non-condensing.
Certifications: RoHS

REFERENCE / MODEL	TPLINK-188 / ME10
Special Protection	No
Technology	WIFI
Frequency	2,4GHz
RJ45 Ports	1 (Fast Ethernet)
Installation environment	Indoor
Bandwidth	300 Mbps
Installation	Wall
Sub-brand	Mercusys

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
