TPLINK-189 | Mercusys 300Mbps Wi-Fi N Extender
TPLINK-189MW300REMercusys 300Mbps Wi-Fi N Extender
TPLINK-189
TPLINK-189_B

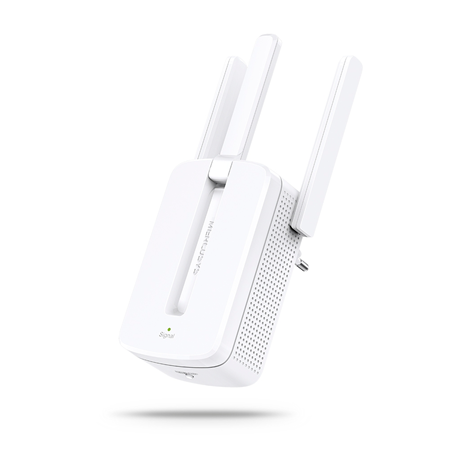

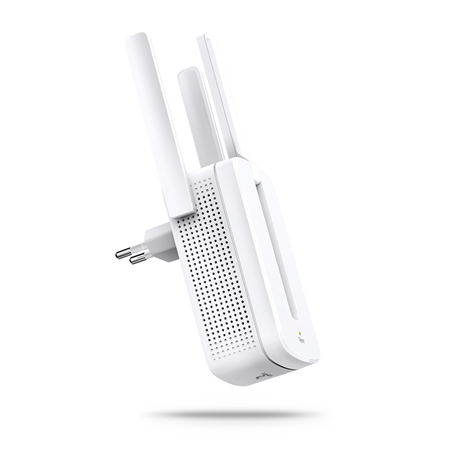

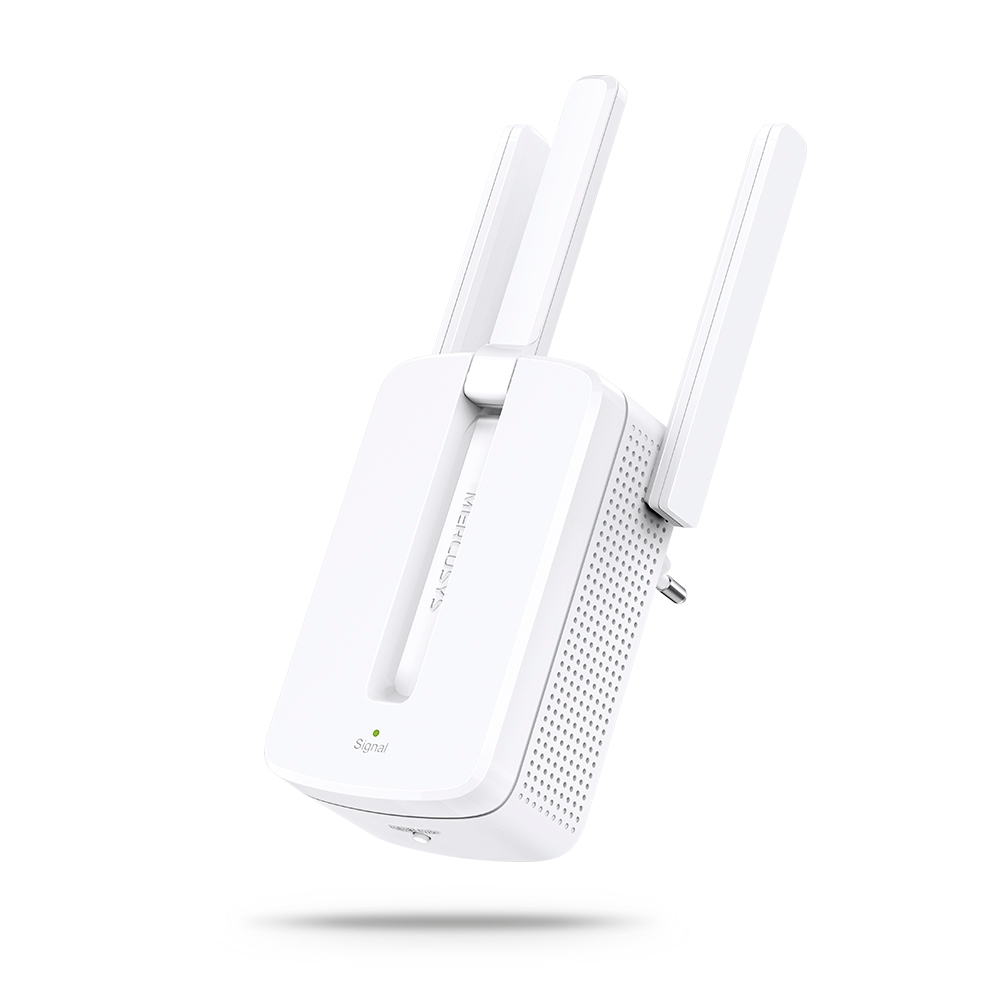

Mercusys 300Mbps Wi-Fi N Extender

TPLINK-189

MW300RE

Main features

  • Mercusys N300 Wi-Fi Extender
  • 2.4 GHz single band with speed up to 300 Mbps
  • 3 external antennas
  • WPS button
  • Multicolor LED signal indicator
  • Wall installation
  • WPA2 security
  • Plug & Play
  • Compact design

Specifications

  • Wireless standards: IEEE 802.11b/g/n
  • Frequency: 2.4 - 2.5 GHz
  • Wireless speed: up to 300 Mbps
  • Transmit power (EIRP): < 20 dBm
  • Receive sensitivity:
    • 11g 54M: -79 dBm
    • HT20 MCS7: -76 dBm
    • HT40 MCS7: -72 dBm
  • Antennas: 3 external adjustable
  • Ethernet port: not available
  • Physical button: WPS / Reset
  • Multicolor LED signal indicator for optimal location
  • Operating Modes: Range extender
  • Wireless security: WPA-PSK / WPA2-PSK
  • Maximum power consumption: 3.0 W
  • Operating temperature: 0 °C to 40 °C
  • Storage Temperature: -40°C to +70°C (-40°F to +70°F)
  • Operating relative humidity: 10-90 % non-condensing
  • Storage Humidity: 5-90 % non-condensing
  • Mounting: Wall-mounted
  • Dimensions: 101 × 74.8 × 75.8 mm
  • Certifications: CE, RoHS
REFERENCE / MODEL TPLINK-189 / MW300RE
Special Protection No
Technology WIFI
Frequency 2,4GHz
RJ45 Ports No
Installation environment Indoor
Bandwidth 300 Mbps
Installation Wall
Sub-brand Mercusys
