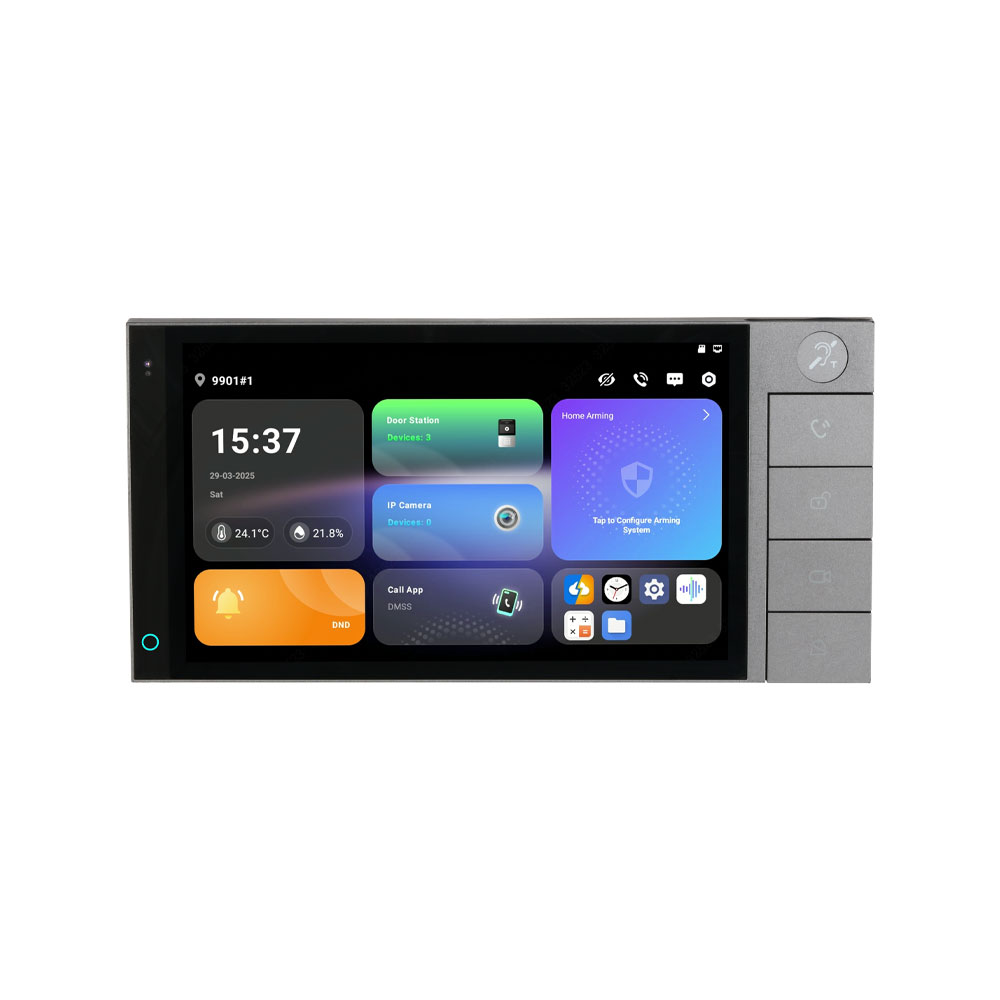

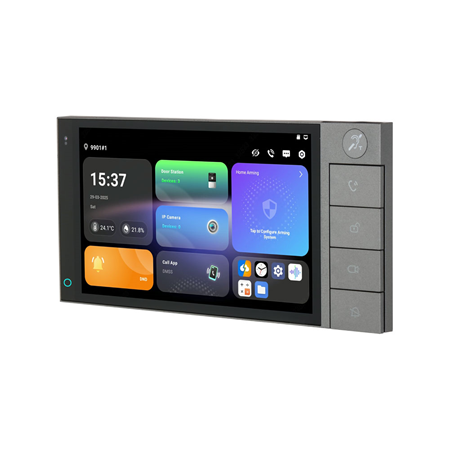

Dahua 7" 2-wire IP smart control panel with Android 14, Wi-Fi, Bluetooth and Zigbee

Technical Specifications

• Dahua 2-Wire IP Smart Control Panel
• Integrated processor
• Android 14 operating system
• 4 GB of RAM and 16 GB of ROM
• Supports installation of APK files to expand third-party applications
• 7" IPS capacitive touchscreen
• Screen resolution of 1024×600
• Multitouch technology
• Viewing angle of up to 80° horizontally and vertically
• Removable and replaceable mechanical buttons with customizable functions
• Multicolor indicators with breathing light effect
• Built-in light sensor for automatic screen brightness adjustment
• Built-in temperature and humidity sensors
• Automatic activation when a person approaches
• Compatible with magnetic loop systems for hearing aids

Functionalities

• Video doorphone, video surveillance, and wireless alarm functions
• Fully digital and 2-wire digital communication
• Reception and display of information broadcast from the management center
• Elevator control for calling the resident’s floor
• Allows users to leave video messages using an SD card inserted into the indoor monitor or door station
• "Do Not Disturb" mode with configurable duration
• Configuration for a villa: 1 main VTH and up to 9 extensions
• Configuration for an apartment: 1 main VTH and up to 4 extensions
• Doorbell function via an alarm input

Audio

• 2 audio input channels
• Built-in speaker
• Two-way audio
• G.711a, G.711u, and PCM compression
• Echo cancellation and digital noise reduction
• 16 kHz, 16-bit audio

Storage

• MicroSD slot supporting up to 512 GB (card not included)

Alarms

• 8 alarm inputs
• 1 alarm output

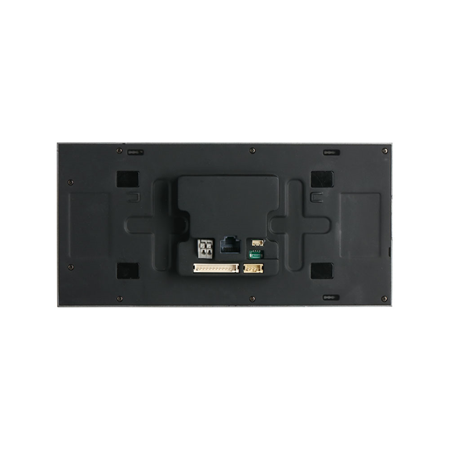

Communication Interface

• 1 RS-485 port
• 1 USB port
• 1 power output: 12 V, 200 mA
• 1 10/100 Mbps Ethernet port

Network

• IPv4, RTSP, UDP, DNS, FTP, RTP, TCP, and SIP protocols
• Wi-Fi IEEE 802.11b/g/n at 2.4 GHz
• Maximum Wi-Fi transmission power ≤20 dBm at 2400–2483.5 MHz
• Bluetooth BR/EDR/BLE at 2400–2483.5 MHz
• Maximum Bluetooth transmission power: ≤20 dBm
• Zigbee IEEE 802.15.4 at 2400–2483.5 MHz
• Zigbee 3.0 reserved for third-party access
• Maximum Zigbee transmission power ≤10 dBm
• Sub-1 GHz at 868–868.6 MHz using FSK/GFSK modulation
• Maximum Sub-1 GHz transmission power: 14 dBm

Power Supply

• 48 V DC power supply, 0.5 A
• Standard PoE
• Optional power adapter
• Power consumption: ≤10 W in standby and ≤14 W in operation

Environmental

• Indoor use
• Operating temperature: −10 °C to +55 °C
• Operating humidity: 10%–95% RH, non-condensing
• Operating altitude: less than 3,000 m
• Storage temperature: 0 °C to +40 °C
• Storage humidity: 30%–75%

Physical Characteristics

• PC + ABS housing
• Color: gray
• Flush mounting
• Dimensions: 210.2 × 103.1 × 32.2 mm
• Gross weight: 1,250 g

Contents

• Dahua DAHUA-5545 Smart Control Panel (DHI-SCP3022B-IBZ)
• RS-485 cable and power output cable
• Mount
• Alarm cable

Certifications and Standards

• CE
