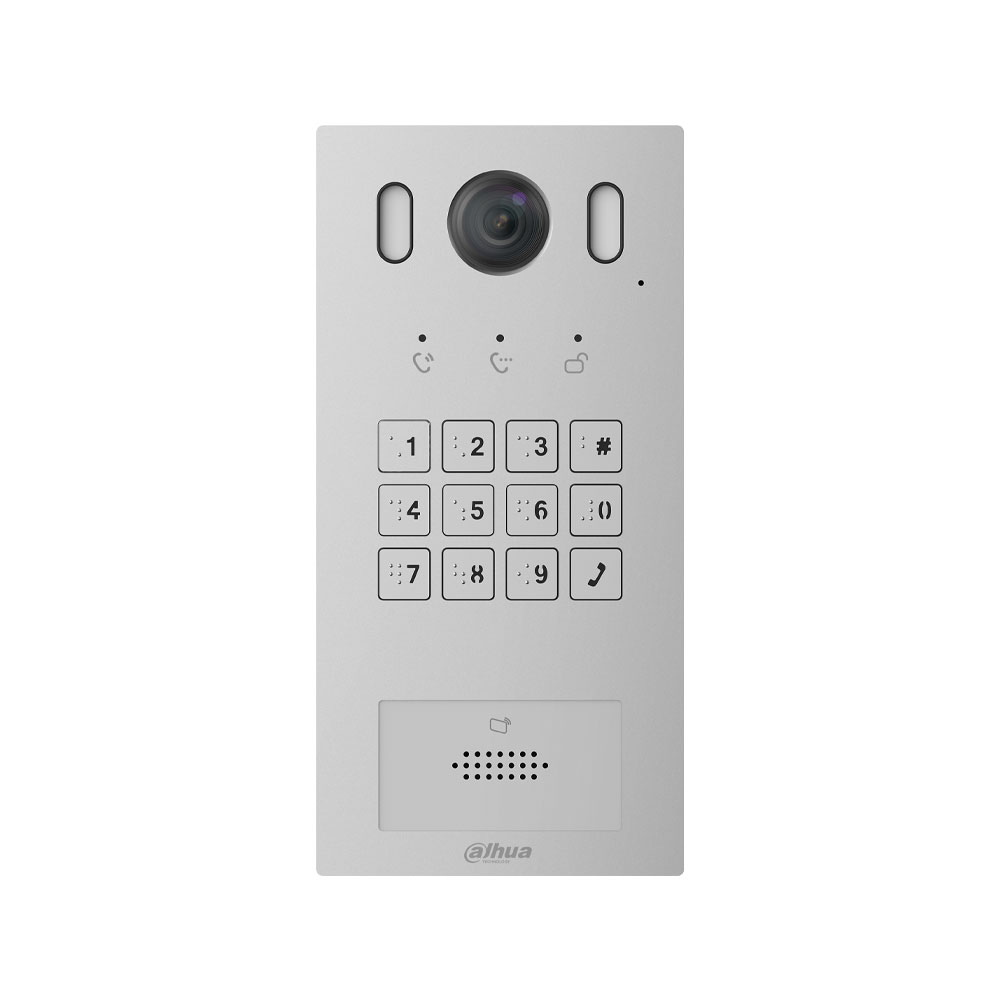

Outdoor IP Video Door Station

DAHUA-3486

DHI-VTO3221E-P

This product is discontinued

It is replaced by the new version DAHUA-4437

Main features

Dahua Villa IP video door entry system
Mechanical keypad with Braille
2MP camera with white light
Two-way audio with built-in microphone and speaker
Mifare card reader (13.56MHz)
Tamper tamper
1 alarm input / 1 alarm output
1 Wiegand input
MicroSD slot
IP55 and IK08 protection
12V DC / PoE

Specifications

2MP

Embedded microprocessor
Embedded Linux operating system
Keyboard with mechanical buttons with braille
H.264 video compression
2 megapixel 1/2.9" CMOS image sensor
Supplementary white light illumination
Colour mode
2 mm fixed optics
Angle of view: 138°(H), 78°(V), 158°(D)
G.711 audio compression
Bi-directional audio
Built-in omni-directional microphone
Built-in speaker
Mifare card reader (13.56MHz)
1 alarm input / 1 alarm output
Door control: 1 Relay output, 1 RS485, 1 Feedback, 1 Exit button
1 Wiegand input
MicroSD card slot up to 64GB (reserved for software)
Tamper tamper
10M/100Mbps Ethernet network interface
Network protocol: TCP/IP
Power: 12V DC, 2A / PoE (802.3af)
Power consumption: ≤2W (standby), ≤7W (operation)
IP55 degree of protection
Vandal resistant IK08
Aluminium housing
Surface or flush mount installation
Operating temperature from -40C ~ +60°C
Relative humidity 20% ~ 95% (non-condensing)
Dimensions: 98 (W) x 200 (H) x 32 mm
Weight: 1.5 kg

Documentation

	Language	Name	Type	Action
	ES,EN,FR,PT,IT,DE,NL,PL		Software
