HYUNDAI 2-wire analog video door entry system

HYU-1059

HYU-1059

This product is discontinued

Main features

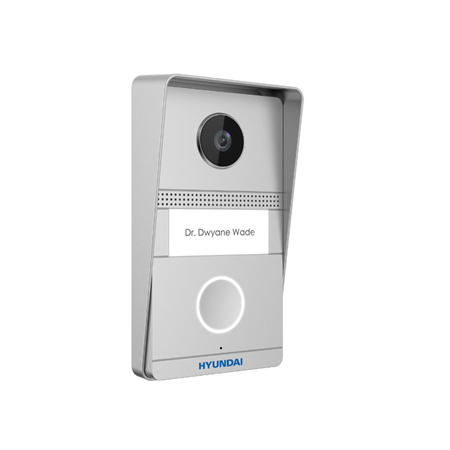

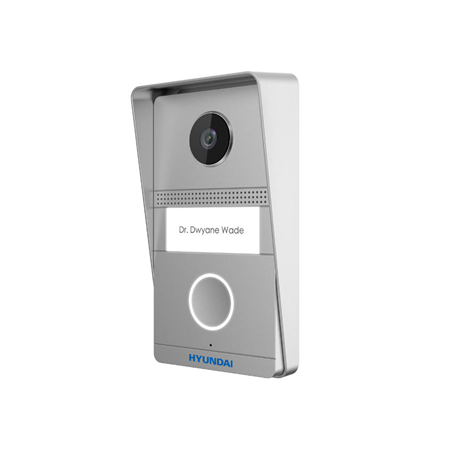

Outdoor 2-wire video door entry station
2MP camera, color vision, even in the dark
One call button
2 lock relays
Power supply for one electric lock (up to 12V /1A)
IP65 and IK07 protection
Surface mounting

Specifications

Integrated analog operating system
1 call button
2 megapixel low illumination camera with white light supplement
Viewing angle: 100°(H), 69°(V)
Stream 1: 1920 x 1080
Stream 2: 720x480
Image modes: WDR
Built-in omni-directional microphone and speaker (>85 dB within 20 cm)
Adjustable volume via screwdriver
2 lock relays (max. 30V DC / 2A)
2 door contact inputs
4 DIP switches
Power supply: 48V DC, 0.5A
Power consumption: ≤12W
Operating temperature from -30°C ~+60°C
Relative humidity 10% ~ 90%
IP65 degree of protection
Vandal protection IK07
Dimensions: 82 (W) x 150 (H) x 23,5 mm
Net weight: 345 g
Gross weight: 498 g
Surface mount with protective screen
