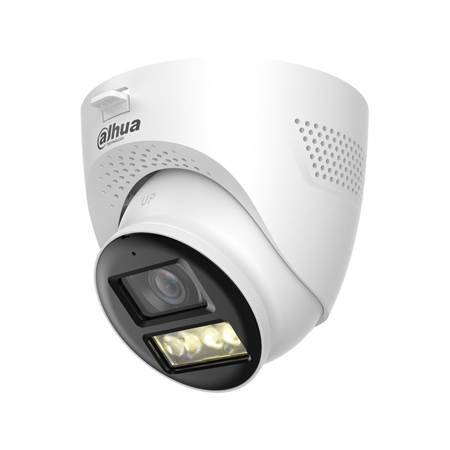

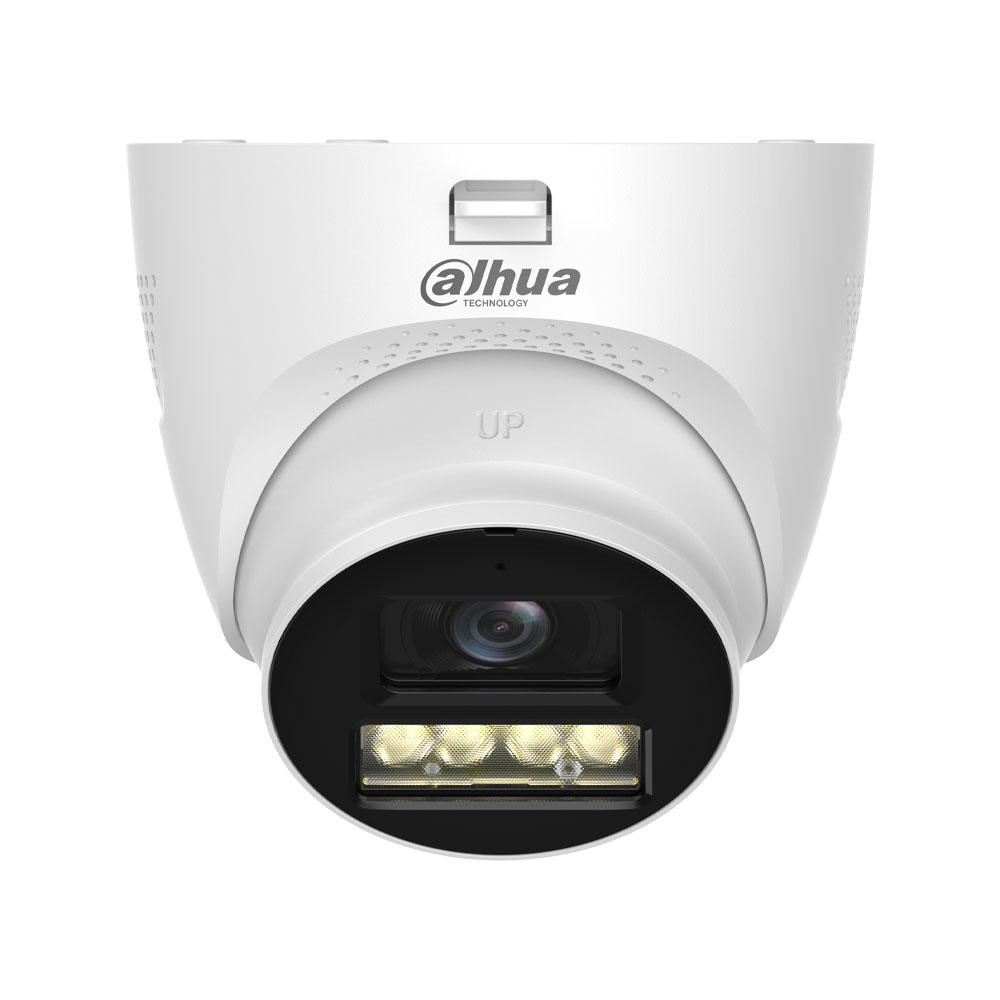

Dahua Lite Series 2MP 4-in-1 Dome with Smart Dual Light

Technical features

• Dahua brand 4-in-1 Dome, Lite series
• 2 MP CMOS sensor (1920 × 1080)
• ICR, Day/Night auto, color, B/W
• Minimum illumination of 0.01 lux (color), 0.001 lux (B/W), 0 lux with illuminator
• IR and white light illumination up to 40 m (131 ft)
• Illuminators: 4 x 2.8 mm multicore LEDs
• Fixed lens 2.8 mm multicore LEDs
• Viewing angle: Horizontal 111.3°, vertical 60.8°, diagonal 134.2°.

Video

• Resolution: 1080P (1920×1080), 960H
• Frames per second: 1080P@25ips (PAL), 1080P@30ips (NTSC)
• Video output switchable CVI/TVI/AHD/CVBS via DIP switch

Features

• DWDR, BLC, HLC
• Auto white balance, manual/automatic gain control
• 3D Noise Reduction (3DNR)
• Illumination modes: IR, WL, Smart IR&WL
• Smart Light+ for precise illumination

Intelligent functions

• Bidirectional audio via mobile app

Audio

• Integrated microphone (up to 8 m)
• Integrated speaker (up to 8 m)
• Coaxial audio transmission (CVI, TVI)

Communication interface

• BNC port with CVI/TVI/AHD/CVBS selection (via DIP switch)

Power supply

• 12 VDC (±30%)
• Maximum power consumption: 9.37 W (with IR on)

Environmental

• Operating temperature -40°C to +60°C (-40°F to +40°F)
• Relative humidity <95% non-condensing
• IP67 protection

Physical characteristics

• Metal and plastic housing
• Wall, ceiling or pole installation
• Dimensions: Φ109,9 × 105,9 mm
• Net weight: 0.32 kg
• Gross weight: 0.44 kg
• 3AXIS: Pan 0°~360°, Tilt 0°~78°, Rotation 0°~360°

Contents

• DAHUA-4891 Dome (DH-HAC-HDW1200TQP-IL-T-0280B-DIP)

Certifications

• CE-LVD: EN 62368-1
• CE-EMC: EN 55032, EN 55035
