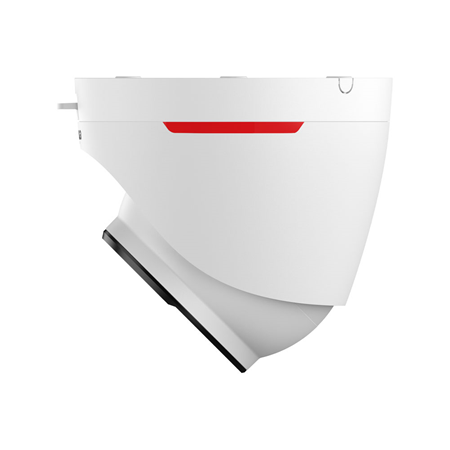

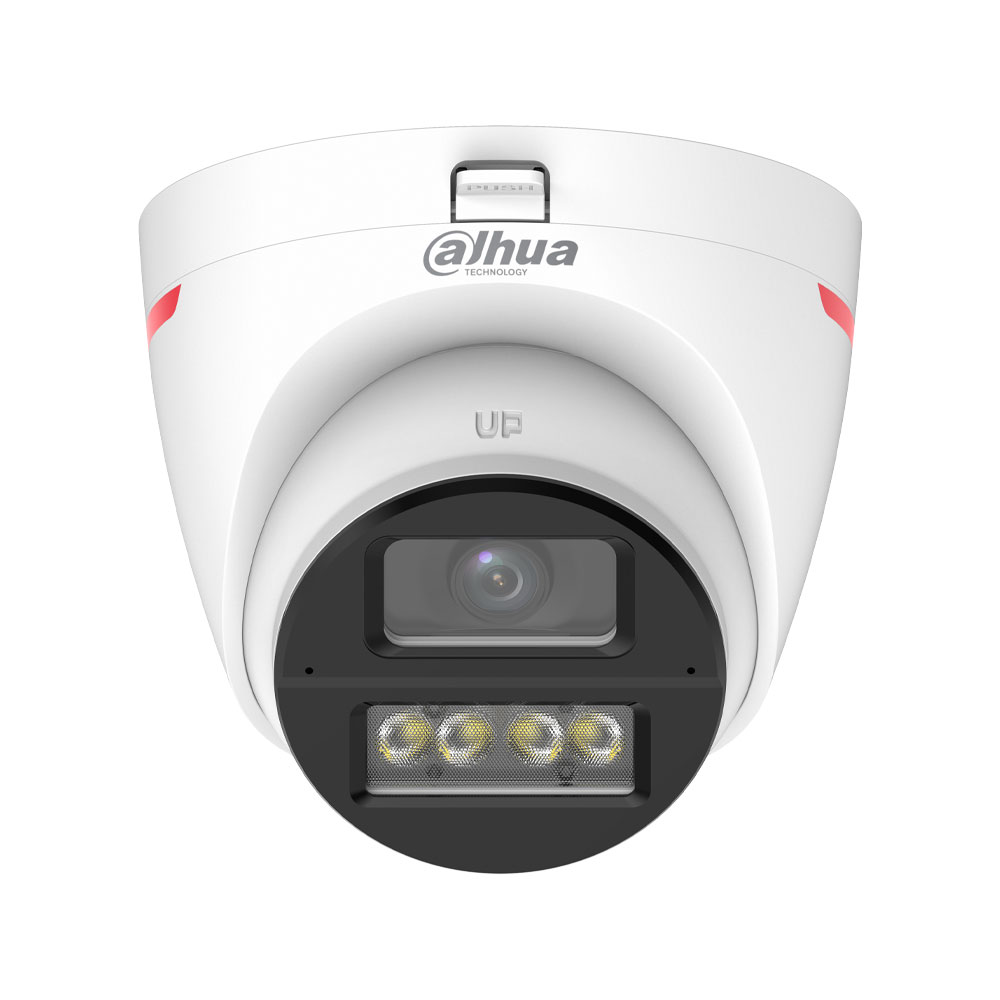

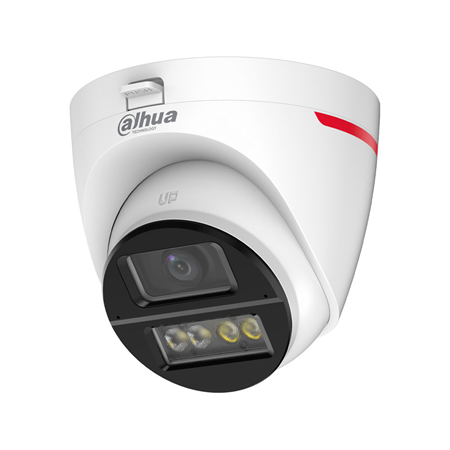

4 in 1 2MP WizColor Dome with Smart Dual Light Dahua Lite Series

Technical features

• Dahua brand 4-in-1 dome, Lite series
• 2 MP CMOS sensor (1920 × 1080)
• ICR, day/night auto, color, B/W
• Minimum illumination 0.0001 lux (color), 0.00001 lux (B/W), 0 lux with illuminator
• IR illumination and white light up to 50 m (164 ft)
• Illuminators: 4 x 2.8 mm multicore LEDs
• Fixed lens 2.8 mm multicore LEDs
• Viewing angle: horizontal 101.8°, vertical 54.4°, diagonal 122.1°.

Video

• Resolution: 1080P (1920×1080), 960H
• Frames per second: 1080P@25ips (PAL), 1080P@30ips (NTSC)
• Video output switchable CVI/TVI/AHD/CVBS via DIP switch

Features

• DWDR, automatic white balance, automatic gain control
• 3D Noise Reduction (3DNR)
• Motion detection and illumination modes (via XVR)
• Smart Dual Light and Smart Light+
• WizColor technology with AI-ISP and distortion correction
• Super Adapt for intelligent image adjustment

Audio

• Integrated dual microphone
• Coaxial audio transmission (CVI)
• Pickup range up to 12 m (40 ft)

Communication interface

• BNC port with CVI/TVI/AHD/CVBS selection (via DIP switch)

Power supply

• 12 VDC (±30%)
• Maximum power consumption: 5.6 W (with LED on)

Environmental

• Operating temperature -40°C to +60°C (-40°F to +40°F)
• Relative humidity <95% non-condensing
• IP67 protection

Physical characteristics

• Metal and plastic housing
• Wall, ceiling or pole installation
• Dimensions: Φ109,9 × 102,2 mm
• Net weight: 0.33 kg
• Gross weight: 0.45 kg
• 3AXIS: Pan 0°~360°, Tilt 0°~78°, Rotation 0°~360°

Contents

• DAHUA-4894 Dome (DH-HAC-HDW1249XP-IL-A-PRO-0280B-DIP)

Certifications

• CE-LVD: EN 62368-1
• CE-EMC: EN 55032, EN 55035
