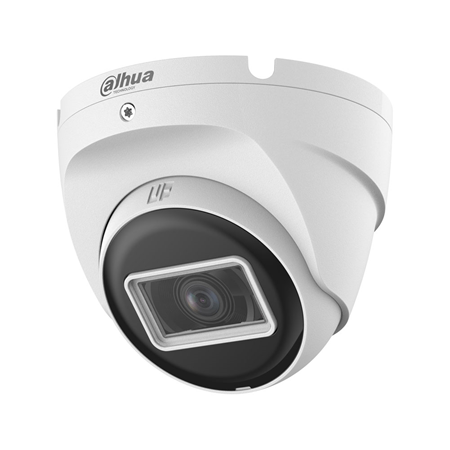

Dahua Cooper Series 5MP 4-in-1 Dome

Technical Features

• Dahua Cooper Series 4-in-1 Dome
• 5 MP CMOS Sensor
• Maximum resolution of 2880 × 1620
• Minimum illumination 0.02 lux@F2.0 (color), 0.002 lux@F2.0 (B/W), 0 lux (IR on)
• 30 m IR illumination distance
• Smart IR with 3 x 2.8 mm IR LEDs
• Fixed lens 2.8 mm IR LEDs
• Viewing angle: 105.5° (H) × 56.5° (V) × 125.3° (D)

Video

• CVI/TVI/AHD/CVBS signal selectable via DIP Switch
• Supported Resolution: 5M (2880 × 1620), 4M (2560 × 1440), 1080p (1920 × 1080), 960H (960 × 576)
• Frames per second: up to 25 fps @ 5MP (16:9)
• Day/Night mode: Auto (ICR)/Color/B&W
• BLC, HLC and DWDR
• Auto white balance and gain
• 2D NR noise reduction
• Privacy masking (8 areas)

Communication interface

• BNC video output (CVI/TVI/AHD/CVBS selectable by DIP Switch)

Power supply

• 12 V DC (±30 %)
• Max. power consumption 3.5 W (IR on)

Environmental

• Operating temperature: -40 °C ~ +60 °C
• Relative humidity: < 95 % (non-condensing)
• IP67 protection

Physical characteristics

• Metal housing
• Wall, ceiling or vertical pole installation
• Dimensions: Φ94 × 77.9 mm
• Net weight: 0.30 kg
• Gross weight: 0.36 kg
• 3AXIS: Pan 0°~360°, Tilt 0°~78°, Rotation 0°~360°

Contents

• 5MP 4-in-1 Dome DAHUA-4976 (DH-HAC-T2A51P-U-0280B-S3-DIP)

Certifications

• CE-LVD (EN 62368-1)
• CE-EMC (EN 55032, EN 55035)
