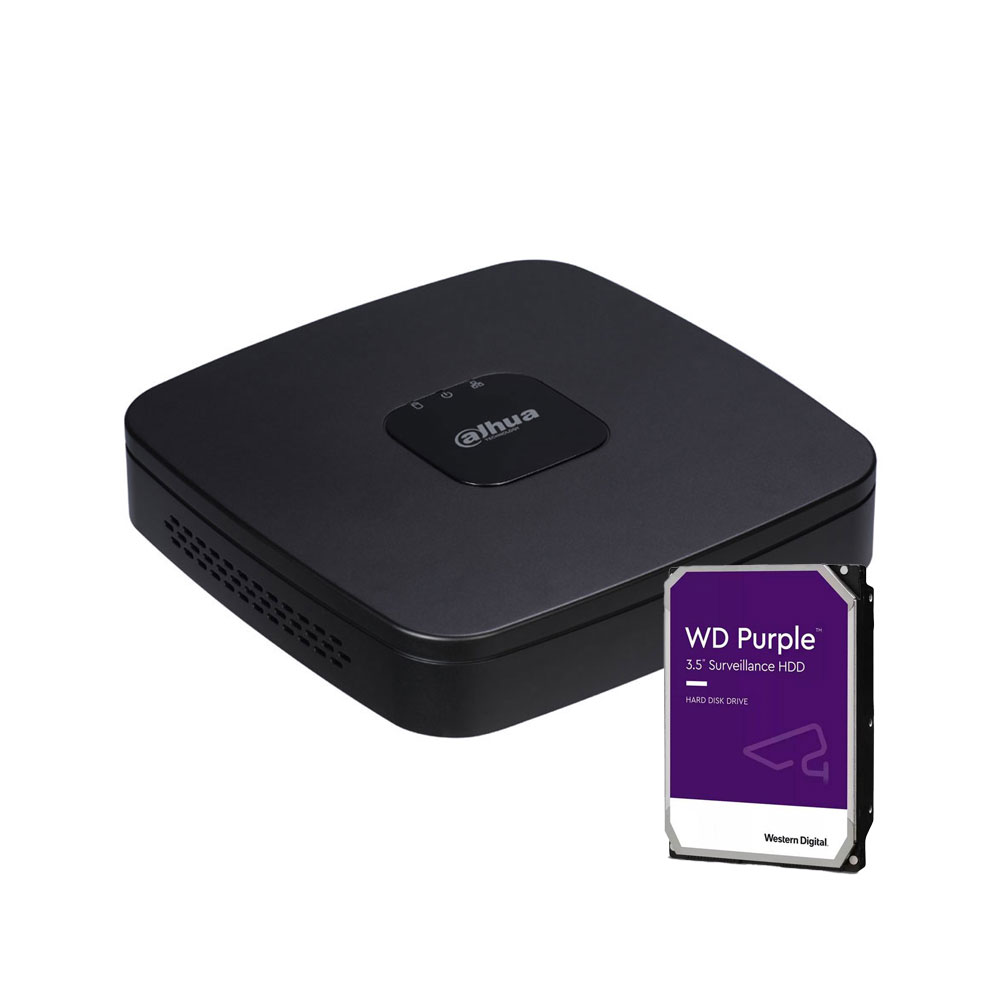

DAHUA-2955-2TB | XVR Dahua 2M-N 8 channels
DAHUA-2955-2TBXVR4108C-I-BL-2TBXVR Dahua 2M-N 8 channels
Volver a Analog Recorders HD/CVBS
Products
CCTV
Analog Recorders HD/CVBS
Analog Recorders
DAHUA-2955-2TB

XVR Dahua 2M-N 8 channels

DAHUA-2955-2TB

XVR4108C-I-BL-2TB

Main features

  • XVR 5 in 1 Dahua 8-channel HDCVI/HDTVI/AHD/CVBS + 2 IP 6MP channels (in addition to BNC inputs)
  • BNC inputs can be converted to IP
  • Formato AI/H.265+/H.265/H.264+/H.264
  • Bidirectional audio
  • 8-channel playback
  • 32 Mbps
  • Recording 1080N/720P (25 fps channel 1, 15 fps rest), 960H, D1, CIF (25 fps)
  • HDMI output (1080P) and VGA output (1080P)
  • 8-channel SMD Plus
  • Includes 1 SATA HDD 2TB
  • RJ45 Fast Ethernet
  • Onvif, CGI, P2P, DDNS
  • 2 USB 2.0
  • 12V DC
  • Desktop

Specifications

  • 5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras with automatic signal recognition
  • 8 BNC 1080N channels (BNC inputs can be converted to IP)
  • 2 IP channels at 6MP (added to BNC inputs).
  • Video compression: AI, H.265+, H.265, H.264+, H.264
  • HDMI video output (1080P) and VGA output (1080P)
  • Output Division: 1, 4, 8, 9 (IP mode off); 1, 4, 8, 9, 16 (IP mode on)
  • 1 RCA inputs / 1 RCA audio output
  • Bi-directional audio via RCA channel
  • Audio compression: G.711a, G.711u, PCM
  • Recording resolution: 1080N, 720P, 960H, D1, HD1, BCIF, CIF
  • Maximum incoming bandwidth of 32 Mbps
  • Main stream: Channel 1 at 1080N or 720P (1~25 fps) + all other channels at 1080N or 720P (1~15 fps), all channels at 960H, D1 or CIF (1~25 fps)
  • Secondary stream: CIF (1~7 fps)
  • Recording modes: manual, schedule, video detection, video loss, tampering, alarm, stop
  • Recording intervals (1~60 min.), pre-recording (1~30 sec.) and post-recording (10~300 sec.)
  • Independent configurable video sensor per camera (selectable 22x18 grid), video loss detection and masking, diagnostics
  • Playback of up to 8 channels
  • SMD Plus: 8 channels, person/vehicle classification
  • Internal capacity for 1 SATA HDD up to 6TB(includes a special 2TB HDD for video surveillance)
  • Multi-language on-screen menu with new improved graphic interface
  • Possibility to update DAHUA camera firmware from the recorder itself
  • Software and hardware watchdog
  • Watermark to preserve video integrity
  • RJ45 Fast Ethernet network port (100M)
  • ONVIF 16.12 and CGI compatible
  • Remote access from web browser and iPhone, iPad, Android devices (EVO and TTS App)
  • Sending of eMails with attached photo in alarm
  • Sending to FTP programmed or in alarm
  • Possibility to send alarm and be connected to alarm receiving software (C.R.A.) through free software AlarmSpace
  • Possibility of fixed or dynamic IP via DDNS Evolution service
  • Communication ports: 2 USB 2.0 ports
  • Power supply: 12V DC, 1.5A (<7W, excluding disks)
  • Storage temperature of -20°C ~ +70°C
  • Operating temperature from -10°C ~ +45°C
  • Relative humidity 0%~90%.
  • Dimensions: 204.6 (W) 45.6 (H) x 210.9 mm
  • Weight: 500 g
  • Tabletop installation
REFERENCE / MODEL DAHUA-2955-2TB / XVR4108C-I-BL-2TB
Resolution 1080N
Audio 1 input / 1 output
Technology 5 in 1
Analog Channels 8ch
Codec AI || H.264 || H.264+ || H.265 || H.265+
Smart Search No
IP Channels 2ch
Capacity 1 HDD || 2TB HDD included
Monitor Output HDMI + VGA
Alarm channels No
AI Series WizSense
