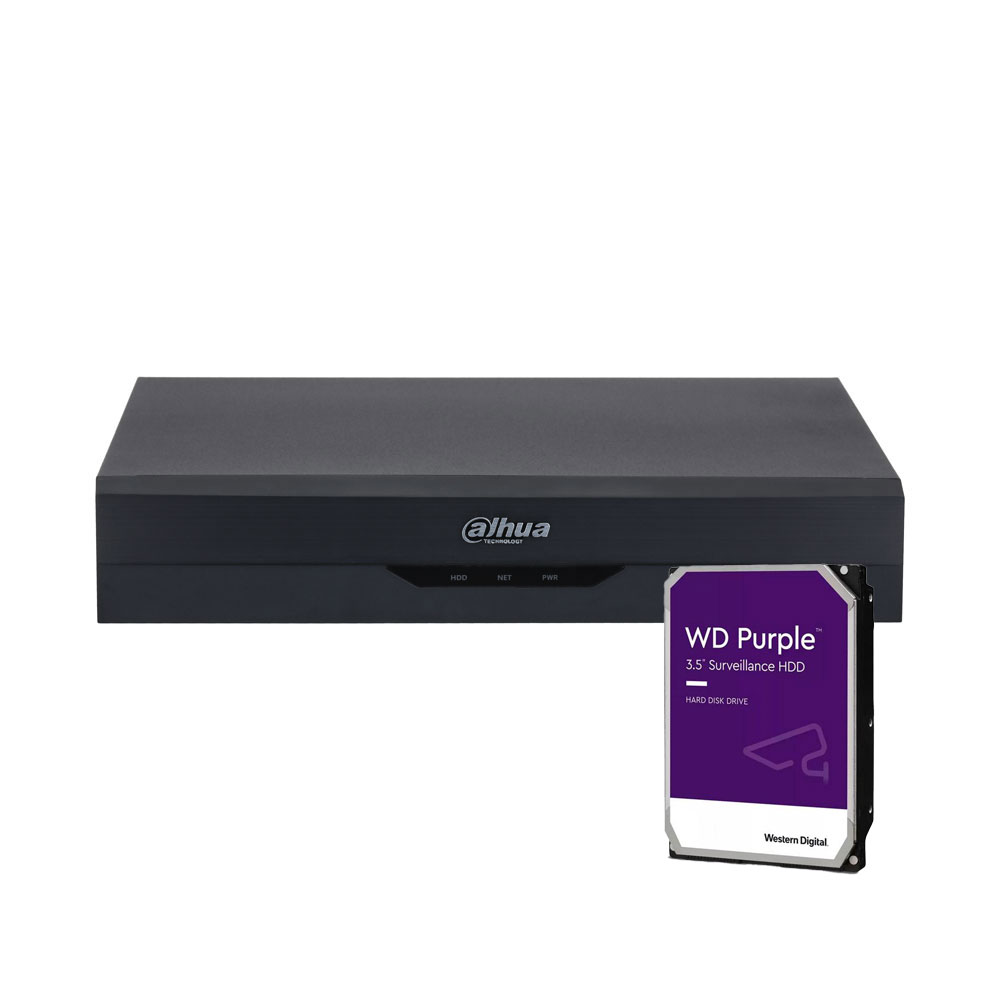

DAHUA-3257-3TB

16-channel 5-in-1 XVR 5MP

DAHUA-3257-3TB

DH-XVR5116HS-I3-3TB

Main features

  • XVR 5 in 1 Dahua 16 channels 5MP
  • AI/H.265+/H.265 formats
  • 16 channels BNC HD + 8 channels IP
  • 5M-N@10ips recording
  • Incoming bandwidth of 128 Mbps
  • HDMI 4K and VGA 1080P outputs
  • Bidirectional audio
  • Audio over coaxial
  • Perimeter protection, SMD Plus, facial recognition, IoT and POS
  • Includes 1 HDD 3TB, 1 RJ45, 2 USB, 1 RS485.

Specifications

  • 5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras with automatic signal recognition
  • 16 BNC channels up to 5MP (BNC inputs can be converted to IP)
  • 8 IP channels to 6MP (added to BNC inputs).
  • Video compression: AI, H.265+, H.265, H.264+, H.264
  • HDMI (4K) and VGA (up to 1080P) video outputs
  • Output split: 1, 4, 8, 8, 9, 16 (IP mode off); 1, 4, 8, 9, 16, 25 (IP mode on)
  • Bi-directional audio: 1 RCA input / 1 RCA audio output
  • 16 audio inputs via coaxial cable
  • Audio Compression: G.711a, G.711u, PCM
  • Recording resolution: 6MP (IP), 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
  • Maximum incoming bandwidth of 128 Mbps
  • Primary stream: 5M-N (1~10 ips), 4M-N/1080P (1~15 ips), 1080N/720P/960H/D1/CIF (1~25 ips)
  • Secondary stream: D1/CIF (1~15 ips)
  • Manual, calendar, video detection, video loss, tampering, alarm, stop, stop recording modes
  • Playback up to 16 channels
  • Perimeter protection: 2 channels
  • Face detection: 2 channels, each channel detects up to 12 faces, up to 10 databases and 20 000 face images
  • SMD Plus: 16 channels, person/vehicle classification
  • Internal capacity for 1 SATA HDD up to 16TB(includes a special 3TB hard disk for video surveillance)
  • Multi-language on-screen menu with new improved graphical interface
  • Possibility to upgrade DAHUA camera firmware from the recorder itself
  • Software and hardware watchdog
  • Watermark to preserve video integrity
  • RJ45 Gigabit Ethernet network port (10/100/1000 Mbps)
  • ONVIF 16.12 and CGI support
  • Remote access from web browser and iPhone, iPad, Android devices (EVO and TTS App)
  • Sending of eMails with attached photo in alarm
  • Sending to FTP programmed or in alarm
  • Possibility to send alarm and be connected to alarm receiving software (C.R.A.) through free software AlarmSpace
  • Possibility of fixed or dynamic IP via DDNS Evolution service
  • Communication Ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS485 port (for PTZ control)
  • Power supply: 12V DC, 2A (<12W, excluding disks)
  • Storage temperature from -20°C ~ +70°C
  • Operating temperature from -10°C ~ +55°C
  • Relative humidity 10%~90%.
  • Dimensions: 260 (W) 47.6 (H) x 237.6 mm (2.6 in)
  • Weight: 1.17 kg
  • Tabletop installation
REFERENCE / MODEL DAHUA-3257-3TB / DH-XVR5116HS-I3-3TB
Resolution 5M-N
Audio 1 input / 1 output || Audio via coaxial
Technology 5 in 1
Analog Channels 16ch
Codec AI || H.264 || H.264+ || H.265 || H.265+
IP Channels 8ch
Capacity 1 HDD || 1 HDD || 3TB HDD included
Monitor Output HDMI + VGA
AI Series WizSense
