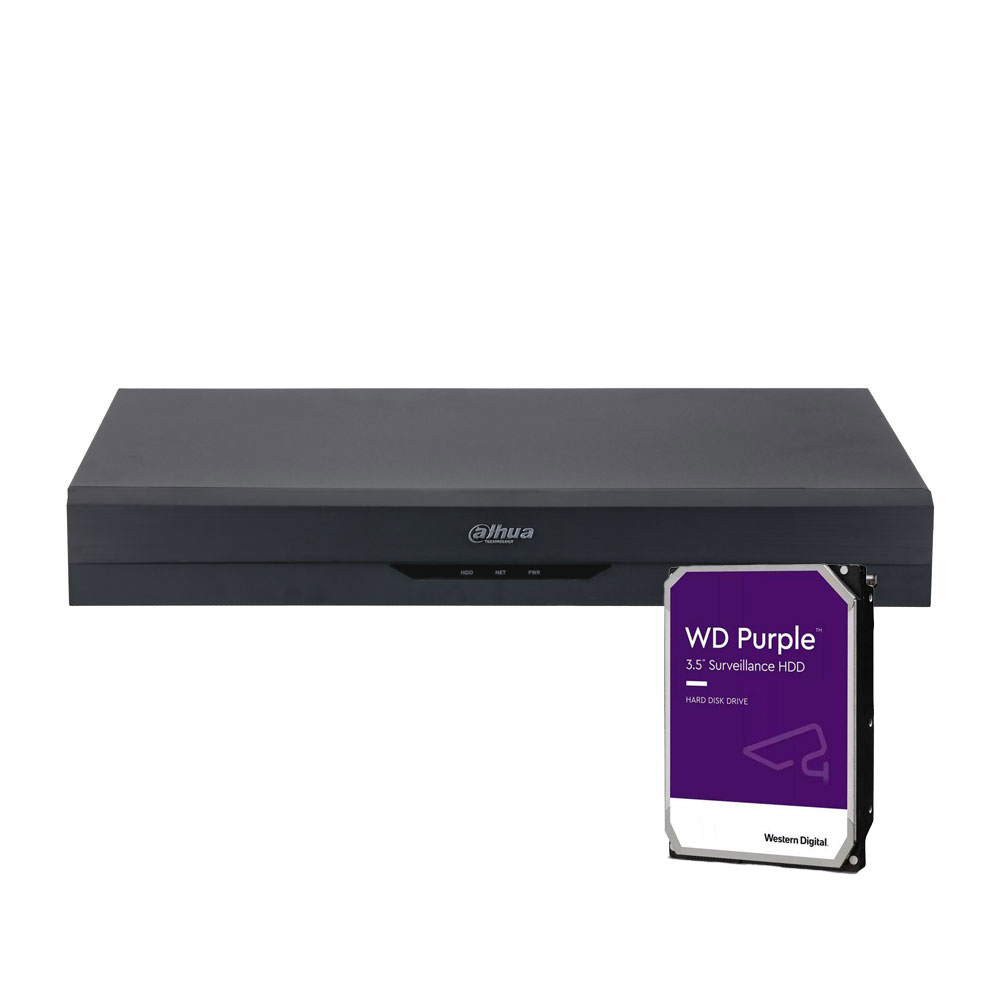

16-channel 5-in-1 XVR

Name: DAHUA-3259-3TB
SKU: DH-XVR5216AN-I3-3TB
Price: 662.852 EUR
Availability: InStock
Rating: 5 (60 reviews)

DAHUA-3259-3TB

DH-XVR5216AN-I3-3TB

Main features

XVR 5 in 1 Dahua 16 channels 5MP
AI/H.265+/H.265 formats
16 channels BNC HD + 8 channels IP
5M-N@10ips recording
Incoming bandwidth of 128 Mbps
HDMI 4K and VGA 1080P outputs
Bidirectional audio
Audio over coaxial
Perimeter protection, SMD Plus, facial recognition, IoT and POS
Supports 2 HDD 16TB (includes 1 HDD 2TB)
1 RJ45, 2 USB, 1 RS485
Rack 1U

Specifications

5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras with automatic signal recognition
16 BNC channels up to 5MP (BNC inputs can be converted to IP)
8 IP channels to 6MP (added to BNC inputs).
Video compression: AI, H.265+, H.265, H.264+, H.264
HDMI (4K) and VGA (up to 1080P) video outputs
Output split: 1, 4, 8, 8, 9, 16 (IP mode off); 1, 4, 8, 9, 16, 25 (IP mode on)
Bi-directional audio: 1 RCA input / 1 RCA audio output
16 audio inputs via coaxial cable
Audio Compression: G.711a, G.711u, PCM
Recording Resolution: 6MP (IP), 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
Maximum incoming bandwidth of 128 Mbps
Primary stream: 5M-N (1~10 ips), 4M-N/1080P (1~15 ips), 1080N/720P/960H/D1/CIF (1~25 ips)
Secondary stream: D1/CIF (1~15 ips)
Manual, calendar, video detection, video loss, tampering, alarm, stop, stop recording modes
Playback up to 16 channels
Perimeter protection: 2 channels
Face detection: 2 channels, each channel detects up to 12 faces, up to 10 databases and 20 000 face images
SMD Plus: 16 channels, person/vehicle classification
Internal capacity for 2 SATA HDD up to 16TB(includes a special 3TB hard disk for video surveillance)
Multilanguage on-screen menu with new improved graphic interface
Possibility to upgrade DAHUA camera firmware from the recorder itself
Software and hardware watchdog
Watermark to preserve video integrity
RJ45 Gigabit Ethernet network port (10/100/1000 Mbps)
ONVIF 16.12 and CGI support
Remote access from web browser and iPhone, iPad, Android devices (EVO and TTS App)
Sending of eMails with attached photo in alarm
Sending to FTP programmed or in alarm
Possibility to send alarm and be connected to alarm receiving software (C.R.A.) through free software AlarmSpace
Possibility of fixed or dynamic IP via DDNS Evolution service
Communication Ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS485 port (for PTZ control)
Power supply: 12V DC, 4A (<12W, excluding disks)
Storage temperature from -20°C ~ +70°C
Operating temperature from -10°C ~ +55°C
Relative humidity 10%~90%.
Dimensions: 375 (W) 53 (H) x 289 mm (1.56 in.) x 289 mm (1.56 kg)
Weight: 1.56 kg
Desktop or 1U rackmount installation

REFERENCE / MODEL	DAHUA-3259-3TB / DH-XVR5216AN-I3-3TB
Resolution	5M-N
Audio	1 input / 1 output \|\| Audio via coaxial
Technology	5 in 1
Analog Channels	16ch
Codec	AI \|\| H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
Size	Compact 1U
IP Channels	8ch
Capacity	2 HDD \|\| 3TB HDD included
AI Series	WizSense

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
