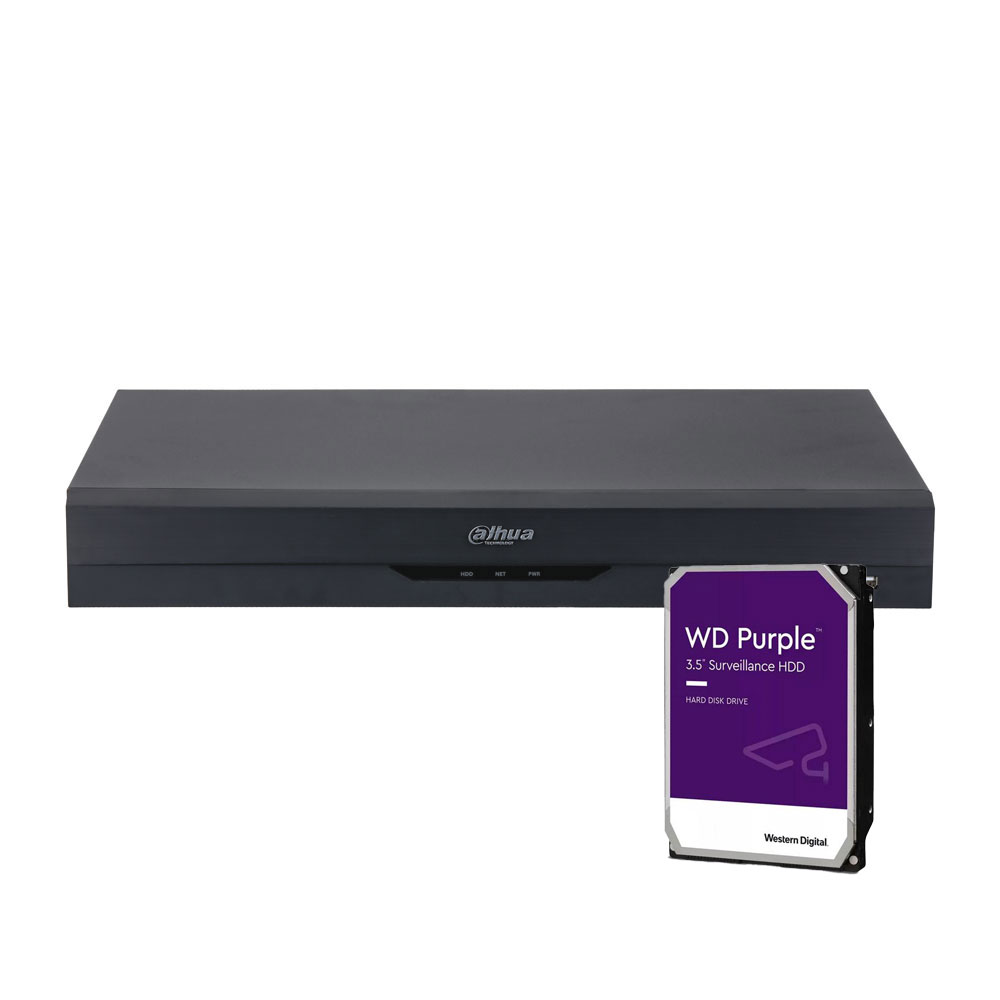

DAHUA-3260-3TB | 16-channel 5-in-1 XVR
DAHUA-3260-3TBDH-XVR5216A-I3-3TB16-channel 5-in-1 XVR
Volver a Analog Recorders HD/CVBS
Products
CCTV
Analog Recorders HD/CVBS
Analog Recorders
DAHUA-3260-3TB

16-channel 5-in-1 XVR

DAHUA-3260-3TB

DH-XVR5216A-I3-3TB

Main features

  • XVR 5 in 1 Dahua 16 channels 5MP
  • AI/H.265+/H.265 formats
  • 16 channels BNC HD + 8 channels IP
  • 5M-N@10ips recording
  • Incoming bandwidth of 128 Mbps
  • HDMI 4K and VGA 1080P outputs
  • Bidirectional audio
  • Audio over coaxial
  • Perimeter protection, SMD Plus, facial recognition, IoT and POS
  • 16 inputs / 3 alarm outputs
  • Supports 2 x 16TB HDD (includes 1 x 3TB HDD), 1 x RJ45, 2 x USB, 1 x RS485
  • 1U Rack

Specifications

  • 5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras with automatic signal recognition
  • 16 BNC channels up to 5MP (BNC inputs can be converted to IP)
  • 8 IP channels to 6MP (added to BNC inputs).
  • Video compression: AI, H.265+, H.265, H.264+, H.264
  • HDMI (4K) and VGA (up to 1080P) video outputs
  • Output division: 1, 4, 8, 8, 9, 16 (IP mode off); 1, 4, 8, 9, 16, 25 (IP mode on)
  • 4 RCA inputs / 1 RCA audio output
  • 16 audio inputs through coaxial cable
  • Audio compression: G.711a, G.711u, PCM
  • Recording Resolution: 6MP (IP), 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
  • Maximum incoming bandwidth of 128 Mbps
  • Primary stream: 5M-N (1~10 ips), 4M-N/1080P (1~15 ips), 1080N/720P/960H/D1/CIF (1~25 ips)
  • Secondary stream: D1/CIF (1~15 ips)
  • Manual, calendar, video detection, video loss, tampering, alarm, stop, stop recording modes
  • Playback up to 16 channels
  • 16 alarm inputs / 3 alarm outputs
  • Perimeter protection: 2 channels
  • Face detection: 2 channels, each channel detects up to 12 faces, up to 10 databases and 20 000 facial images
  • SMD Plus: 16 channels, person/vehicle classification
  • Internal capacity for 2 SATA HDD up to 16TB(includes a special 3TB hard disk for video surveillance)
  • Multi-language on-screen menu with new improved graphical interface
  • Possibility to upgrade DAHUA camera firmware from the recorder itself
  • Software and hardware watchdog
  • Watermark to preserve video integrity
  • RJ45 Gigabit Ethernet network port (10/100/1000 Mbps)
  • ONVIF 16.12 and CGI support
  • Remote access from web browser and iPhone, iPad, Android devices (EVO and TTS App)
  • Sending of eMails with attached photo in alarm
  • Sending to FTP programmed or in alarm
  • Possibility to send alarm and be connected to alarm receiving software (C.R.A.) through free software AlarmSpace
  • Possibility of fixed or dynamic IP via DDNS Evolution service
  • Communication Ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS485 port (for PTZ control)
  • Power supply: 12V DC, 4A (<12W, excluding disks)
  • Storage temperature from -20°C ~ +70°C
  • Operating temperature from -10°C ~ +55°C
  • Relative humidity 10%~90%.
  • Dimensions: 375 (W) 53 (H) x 289 mm
  • Weight: 1.64 kg
  • Desktop or 1U rackmount installation
REFERENCE / MODEL DAHUA-3260-3TB / DH-XVR5216A-I3-3TB
Resolution 5M-N
Audio 4 inputs / 1 output || Audio via coaxial
Technology 5 in 1
Analog Channels 16ch
Codec AI || H.264 || H.264+ || H.265 || H.265+
Size Compact 1U
IP Channels 8ch
Capacity 2 HDD || 3TB HDD included
Alarm channels 16 inputs / 3 outputs
AI Series WizSense
