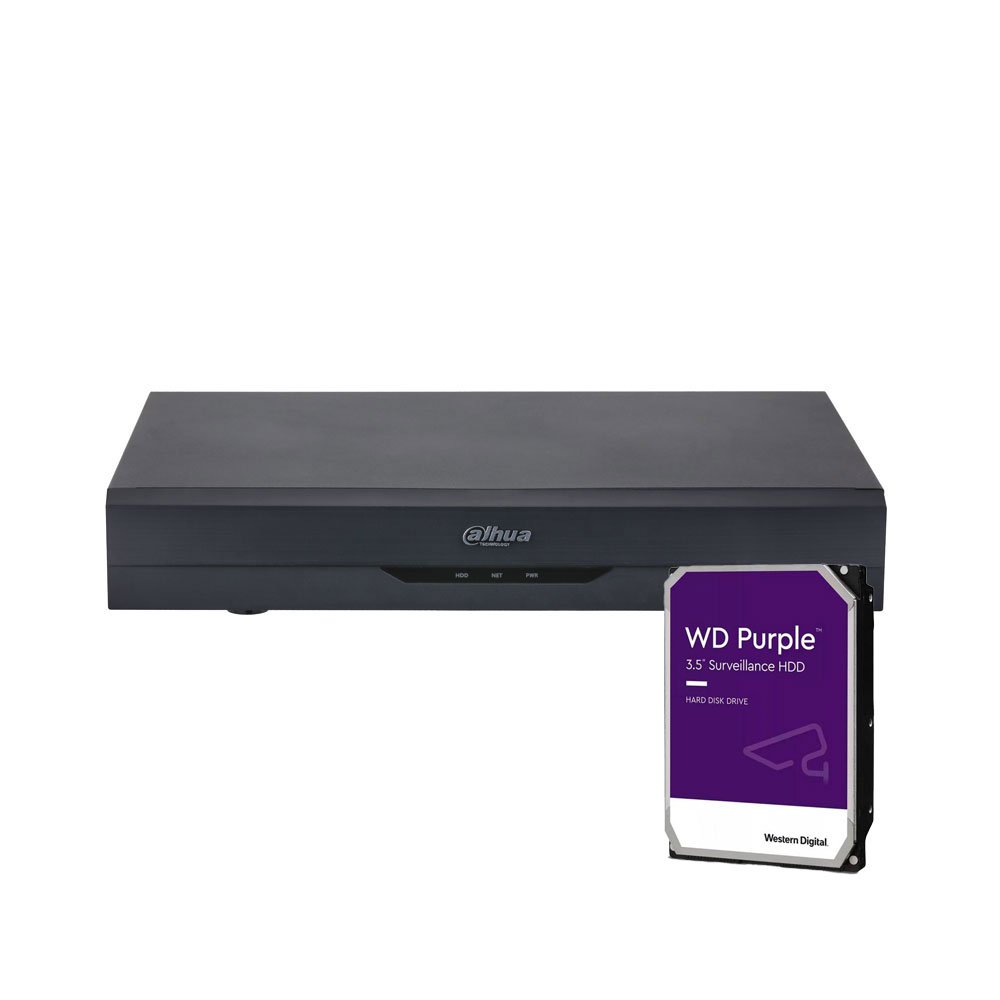

DAHUA-3300-3TB | 16-channel 5-in-1 XVR 8MP
DAHUA-3300-3TBDH-XVR5116H-4KL-I3-3TB16-channel 5-in-1 XVR 8MP
Volver a Analog Recorders HD/CVBS
Products
CCTV
Analog Recorders HD/CVBS
Analog Recorders
DAHUA-3300-3TB

16-channel 5-in-1 XVR 8MP

DAHUA-3300-3TB

DH-XVR5116H-4KL-I3-3TB

Main features

  • XVR 5 in 1 Dahua 16 channels 8MP
  • AI/H.265+/H.265 formats
  • 16 HD BNC channels + 16 IP channels
  • 8MP@7ips recording
  • Incoming bandwidth of 128 Mbps
  • HDMI 4K and VGA 1080P outputs
  • Bidirectional audio
  • Audio over coaxial
  • Perimeter protection, SMD Plus, facial recognition, IoT and POS
  • Includes 1 HDD 3TB, 1 RJ45 Gigabit, 2 USB, 1 RS485.

Specifications

  • 5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras with automatic signal recognition
  • 16 BNC channels up to 8MP/4K (BNC inputs can be converted to IP)
  • 16 IP channels at 8MP/4K (summed with BNC inputs)
  • Video compression: AI, H.265+, H.265, H.264+, H.264
  • HDMI (4K) and VGA video outputs (up to 1080P)
  • Output split: 1, 4, 8, 8, 9, 16 (IP mode off); 1, 4, 8, 9, 16, 25, 36 (IP mode on)
  • Bi-directional audio: 1 RCA input / 1 RCA audio output
  • 16 audio inputs via coaxial cable
  • Audio compression: G.711a, G.711u, PCM
  • Recording resolution: 8MP/4K, 6MP, 5MP, 5MP, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
  • Maximum incoming bandwidth of 128 Mbps
  • Primary stream: 8MP/4K (1~7 fps), 6MP (1~10 fps), 5MP (1~12 fps), 4K-N/4MP/3MP (1~15 fps), 4M-N/1080P/720P/960H/D1/CIF (1~25 fps)
  • Secondary stream: 960H (1~15 ips), D1/CIF (1~25 ips)
  • General, video detection, IVS, alarm, POS recording modes
  • Up to 16 channels playback (IVS and face detection disabled)
  • Perimeter protection: 2 channels, 10 IVS rules per channel
  • Face detection: 2 channels, each channel detects up to 12 faces
  • Facial recognition: 2 channels, up to 10 databases and 20,000 facial images
  • SMD Plus: 16 channels, person/vehicle classification
  • Internal capacity for 1 SATA HDD up to 16TB(includes a special 3TB hard disk for video surveillance)
  • Multi-language on-screen menu with new improved graphical interface
  • Possibility to upgrade DAHUA camera firmware from the recorder itself
  • Software and hardware watchdog
  • Watermark to preserve video integrity
  • RJ45 Gigabit Ethernet network port (10/100/1000 Mbps)
  • ONVIF 21.06 and CGI support
  • Remote access from web browser and iPhone, iPad, Android devices (EVO and TTS App)
  • Sending of eMails with attached photo in alarm
  • Sending to FTP programmed or in alarm
  • Possibility to send alarm and be connected to alarm receiving software (C.R.A.) through free software AlarmSpace
  • Possibility of fixed or dynamic IP via DDNS Evolution service
  • Communication ports: 1 USB 2.0 port, 1 USB 3.0 port, 1 RS485 port (for PTZ control)
  • Power supply: 12V DC, 3A (<15W, excluding disks)
  • Operating temperature from -10°C ~ +55°C
  • Relative humidity 10%~90%.
  • Dimensions: 325 (W) 55 (H) x 256,6 mm
  • Weight: 1.23 kg
  • Desktop installation
REFERENCE / MODEL DAHUA-3300-3TB / DH-XVR5116H-4KL-I3-3TB
Resolution 8MP
Audio Audio via coaxial
Technology 5 in 1
Analog Channels 16ch
Codec AI || H.264 || H.264+ || H.265 || H.265+
Smart Search Yes
Size Compact 1U
IP Channels 16ch
Capacity 1 HDD || 1 HDD || 3TB HDD included
AI Series WizSense
