HiWatch™ 5-in-1 16-channel DVR

Name: HIK-638-3TB
SKU: HWD-6116MH-G4-3TB
Price: 598.93 EUR
Availability: InStock
Rating: 5 (39 reviews)

HIK-638-3TB

HWD-6116MH-G4-3TB

Main features

HIKVISION® HiWatch™ Series 5-in-1 DVR 16-channel
H.265 Pro+/H.265 Pro
16 BNC 4MP channels + 2 IP 6MP channels
4MP Lite@15ips recording
128Mbps bandwidth
HDMI and VGA 1080P outputs
1 input / 1 output RCA audio
16 coaxial audio inputs
Motion detection 2.0

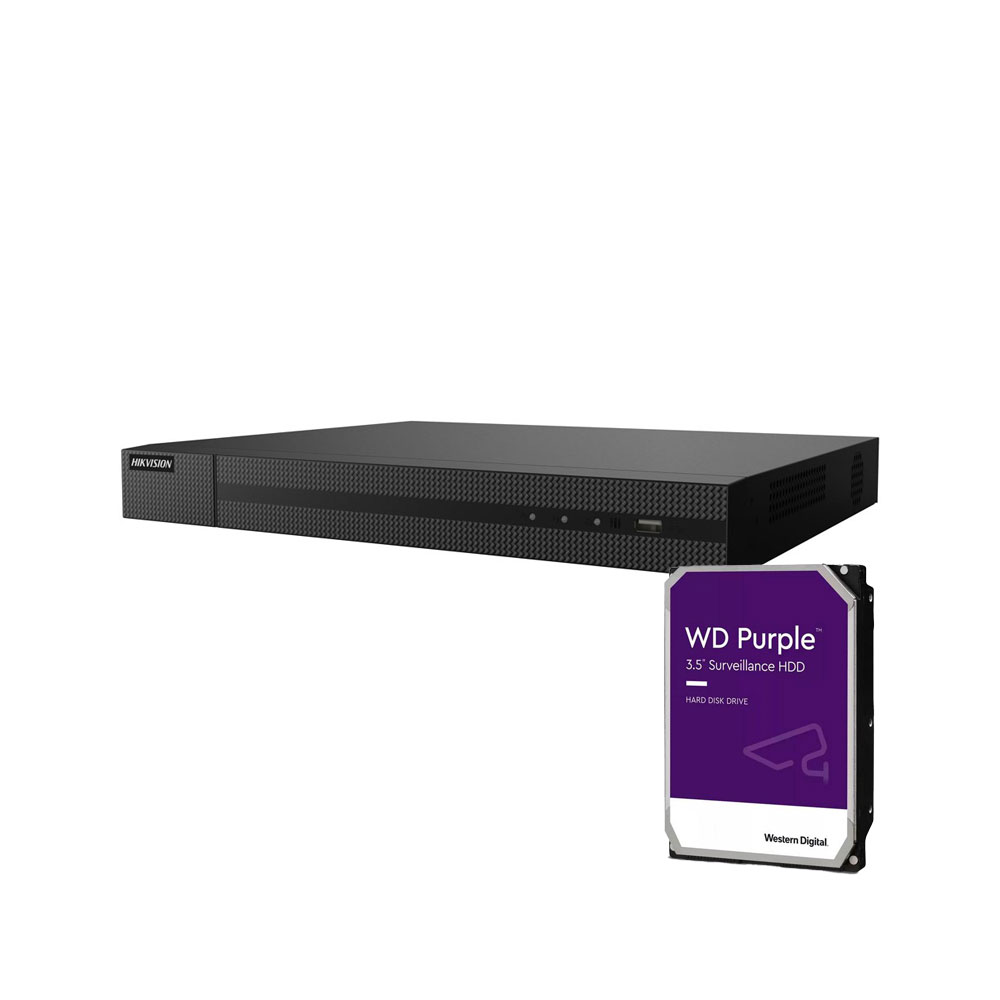

Includes 1 HDD 3TB
1 RJ45 Gigabit, 2 USB

Specifications

5 technologies: IP cameras, HDCVI, HDTVI, AHD and analog CVBS
Connectable to H.265 Pro+ / H.265 Pro / H.265 / H.265 / H.264+ / H.264 IP cameras
16 BNC channels (BNC inputs can be converted to IP) with coax support:
- HDCVI: 4MP, 1080P, 720P
- HDTVI: 3K, 4MP, 3MP, 1080P, 720P
- AHD: 4MP, 1080P, 720P
- Analog CVBS: 960H, PAL/NTSC
2 IP inputs up to 6MP (16+2)
Simultaneous HDMI (1080P) and VGA (1080P) outputs
Bi-directional audio: 1 RCA input / 1 RCA output
16 audio inputs via coaxial cable
Recording resolution: 4MP Lite, 3MP, 1080P, 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF
Stream 1 with 1080P Lite mode off:
- 4MP Lite, 1080P (15 fps), 720P, WD1, 4CIF, VGA, CIF (25 fps).
Stream 1 with 1080P Lite mode enabled:
- 4MP Lite (15 fps), 1080P Lite, 720P Lite, VGA, WD1, 4CIF, CIF (25 fps).
Stream 2: WD1, 4CIF (12 fps), CIF (25 fps)
128Mbps bandwidth
16-channel synchronized playback
Internal capacity for 1 SATA HDD up to 10TB(includes a special 3TB HDD for video surveillance)
Intelligent search
Motion Detection 2.0: Deep learning-based Motion Detection 2.0 can classify people and vehicles and minimize false alarms caused by lights or objects such as leaves.
Self-adaptive RJ45 (10/100/1000M) Ethernet network interface
Network protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS
Remote access for up to 128 users
Onvif support
P2P in the cloud, DDNS DEMES, Push and zero channel
Connections: 2 USB 2.0
Power supply: 12V DC, 1.9A
Power consumption: ≤20W
Operating temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 265 x 225 x 48 mm (desktop)
Weight: ≤1.2 kg

REFERENCE / MODEL	HIK-638-3TB / HWD-6116MH-G4-3TB
Resolution	4M-N
Audio	1 input / 1 output \|\| Audio via coaxial
PoC (Power Over Coax)	No
Technology	5 in 1
Analog Channels	16ch
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
Smart Search	Yes
Size	Compact 1U
IP Channels	2ch
Capacity	1 HDD \|\| 3TB HDD included
Alarm channels	No
Intelligent functions	Motion detection 2.0
