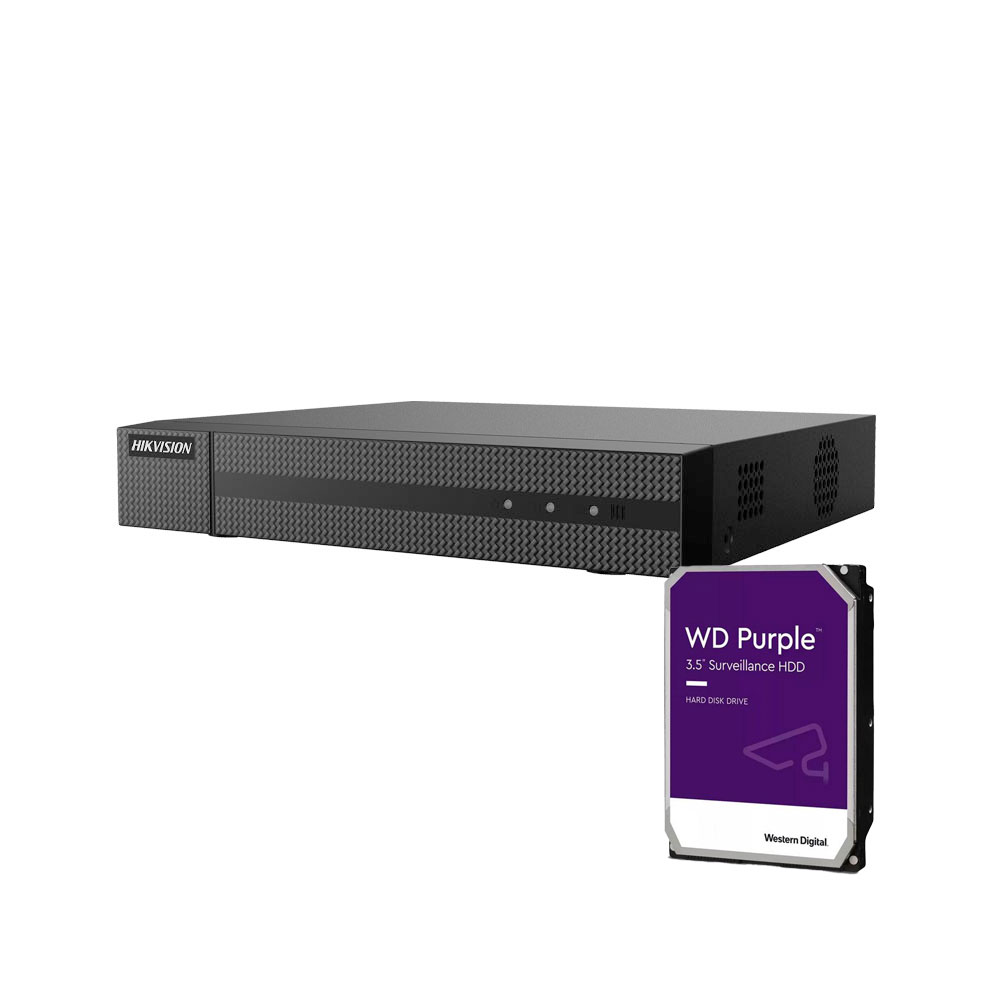

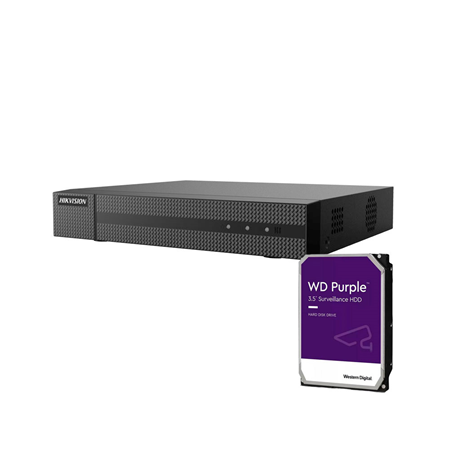

HiWatch™ 5-in-1 16-channel DVR

Name: HIK-698-3TB
SKU: HIK-698-3TB
Availability: InStock
Rating: 5 (99 reviews)

HIK-698-3TB

Main features

HIKVISION® HiWatch™ Series 5-in-1 DVR
H.265 Pro+/H.265 Pro
16 1080P BNC channels + 2 IP 5MP channels
1080P Lite@25ips recording
96Mbps bandwidth
HDMI and VGA 1080P outputs
1 input / 1 output RCA audio
16 coaxial audio inputs
Motion detection 2.0
Includes 1 HDD 3TB
1 RJ45, 2 USB

Specifications

5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras
H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video formats
16 BNC channels up to 4MP (BNC inputs can be converted to IP) with coax support:
- HDCVI: 1080P (25/30 fps), 720P (25/30 fps)
- HDTVI: 1080P (25/30 fps), 720P (25/30 fps)
- AHD: 1080P (25/30 fps), 720P (25/30 fps)
- Analog CVBS: 960H, PAL/NTSC
IP inputs: 2 IP inputs up to 5MP (16+2)
Simultaneous HDMI (1080P) and VGA (1080P) outputs
Bi-directional audio: 1 RCA input / 1 RCA output
16 audio inputs via coaxial cable
G.711u audio format
Recording resolution: 1080P Lite, 720P, 720P Lite, WD1, 4CIF, VGA, CIF
Stream 1:
- 1080P stream: 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF (15 ips)
- 720P stream: 720P, VGA, WD1, 4CIF, CIF (15 fps)
- Standard stream: WD1, 4CIF, VGA, CIF (25/30 fps)
Stream 2:
- 1080P/720P stream: CIF, QVGA (15 fps)
- Standard stream: CIF, QVGA (25 fps)
96Mbps bandwidth
16-channel synchronized playback
Internal capacity for 1 SATA HDD up to 10TB(includes a special 3TB HDD for video surveillance)
Intelligent search by object or event type
Motion Detection 2.0: Deep learning-based Motion Detection 2.0 enables classification of people and vehicles and minimizes false alarms caused by lights or objects such as leaves.
Auto-adaptive RJ45 (10/100M) Ethernet network interface
Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS
Remote access for up to 128 users
Onvif support
P2P in the cloud, DDNS DEMES, Push and zero-channel
Connections: 2 USB 2.0
Power supply: 12V DC, 1.6A
Power consumption: ≤10W
Operating temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 260 x 222 x 45 mm (desktop)
Weight: ≤1.1 kg

REFERENCE / MODEL	HIK-698-3TB / HIK-698-3TB
Resolution	1080N
Audio	1 input / 1 output \|\| Audio via coaxial
PoC (Power Over Coax)	No
Technology	5 in 1
Analog Channels	16ch
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
Smart Search	Yes
Size	Compact 1U
IP Channels	2ch
Capacity	1 HDD \|\| 3TB HDD included
Alarm channels	No
Intelligent functions	Motion detection 2.0

Documentation

	Language	Name	Type	Action
	EN		Self-generated File
