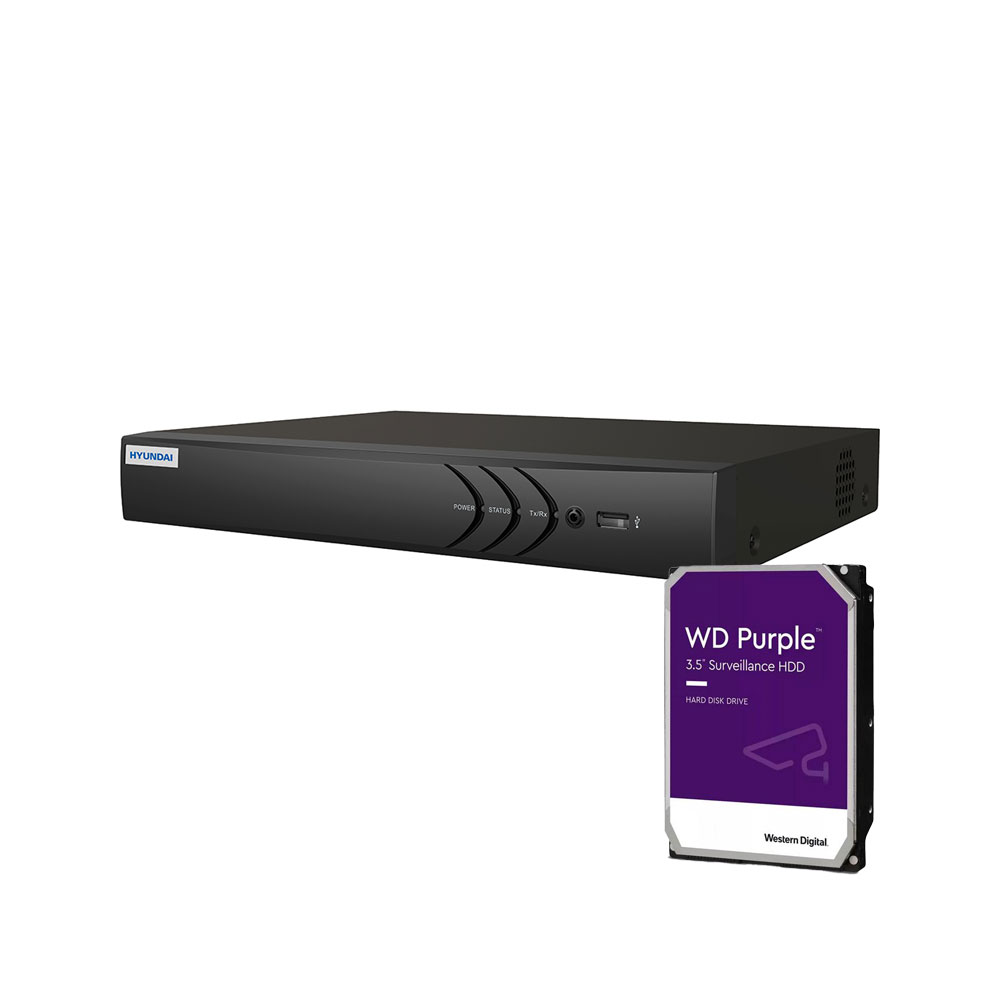

HYUNDAI 5-in-1 4-channel ZVR

Name: HYU-1060-1TB
SKU: HYU-1060-1TB
Availability: InStock
Rating: 5 (61 reviews)

HYU-1060-1TB

Main features

ZVR 5 in 1 HYUNDAI 4 channels
H.265+/H.265 formats
4 BNC channels + 1 IP channel
Recording 1080PLite@25/30ips
Simultaneous HDMI and VGA outputs
Bidirectional audio, coaxial audio
4 inputs / 1 alarm output
Includes 1 HDD 1TB
1 RJ45, 2 USB, 12V DC.

Specifications

ZVR 5 in 1 with 4 HD analog channels + 1 IP channel
5 technologies: IP, HDCVI, HDTVI, AHD and analog CVBS cameras
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264+, H.264 video format
4 BNC inputs (supports coaxitron):
- HDCVI: 1080P, 720P
- HDTVI: 1080P, 720P
- AHD: 1080P, 720P
- analog CVBS: 960H, PAL/NTSC
1 IP input (4+1) 1080P
Simultaneous HDMI (1080P) and VGA (1080P) outputs
Audio channels: 1 RCA audio input / 1 RCA audio output
Bi-directional audio: via RCA audio channel 1
4 audio inputs via coaxial cable
Recording resolution: 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF
Main stream:
- 1080P mode: 1080P Lite, 720P Lite, WD1, 4CIF, VGA, CIF (25/30 ips).
- 720P mode: 720P, WD1, 4CIF, VGA, CIF (25/30 fps)
- Standard mode: WD1, 4CIF, VGA, CIF (25/30 fps)
Secondary stream: 4CIF (15 fps), CIF, QVGA (25/30 fps)
4-channel synchronized playback
Long distance HDTVI transmission: up to 1200 meters at 720P and 800 meters at 1080P
Internal capacity for 1 SATA HDD up to 4TB(includes a special 1TB HDD for video surveillance)
Intelligent search
Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify people and vehicles and minimize false alarms caused by lights or objects such as leaves.
4 alarm inputs / 1 alarm output
Auto-adaptive RJ45 (10/100M) Ethernet network interface
Network protocols: TCP/IP, PPPoE, DHCP, HYU-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Remote access for up to 32 users
P2P in the cloud, DDNS DEMES, Push and zero channel
Connections: 2 USB 2.0
Power supply: 12V DC, 1.5A
Power consumption: ≤16W (excluding HDD)
Operating temperature: -10°C ~ +55°C
Relative humidity: 10~90%.
Dimensions: 260 (W) x 45 (H) x 222 mm (desktop)
Weight: 800 g

REFERENCE / MODEL	HYU-1060-1TB / HYU-1060-1TB
Resolution	1080N
Audio	1 input / 1 output \|\| Audio via coaxial
PoC (Power Over Coax)	No
Technology	5 in 1
Analog Channels	4ch
Codec	H.264 \|\| H.264+ \|\| H.265 \|\| H.265+
Smart Search	Yes
Size	Compact 1U
IP Channels	1ch
Capacity	1 HDD \|\| 1TB HDD included
Alarm channels	4 inputs / 1 output
AI Series	AISense
Intelligent functions	Motion detection 2.0
