DAHUA-4863 | 75" Dahua 4K Interactive Whiteboard with Infrared Touchscreen
DAHUA-4863DHI-LPH75-ST47075" Dahua 4K Interactive Whiteboard with Infrared Touchscreen
DAHUA-4863
DAHUA-4863_B
DAHUA-4863_C
DAHUA-4863_D

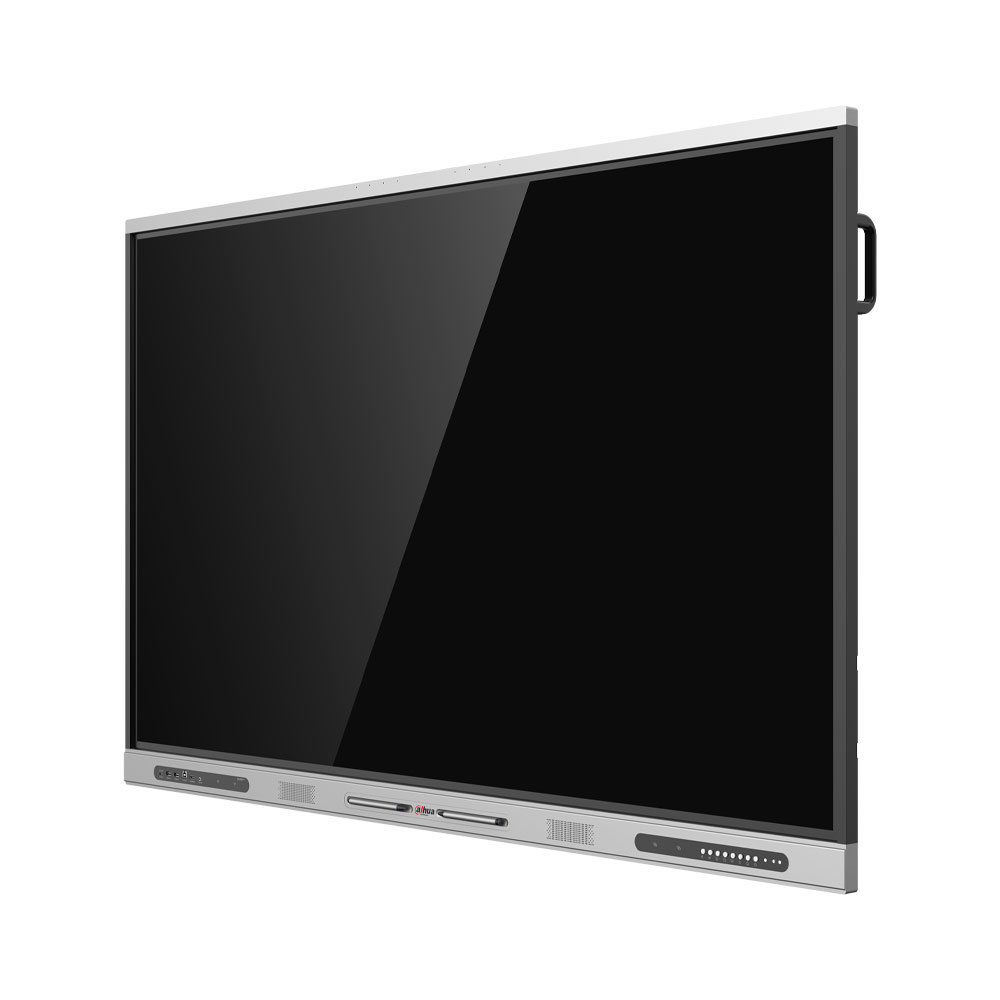

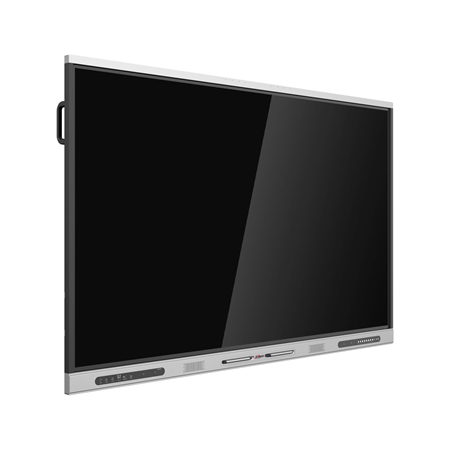

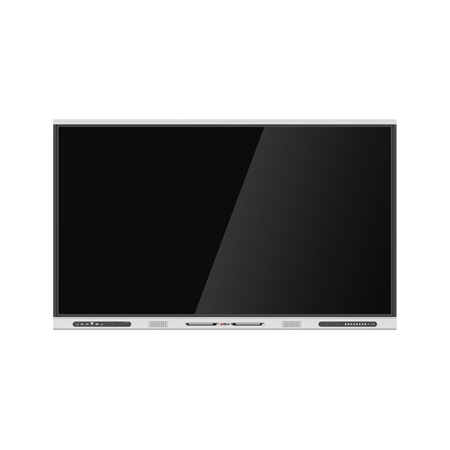

75" Dahua 4K Interactive Whiteboard with Infrared Touchscreen

DAHUA-4863

DHI-LPH75-ST470

Main features

  • 75" 4K digital whiteboard with DLED screen
  • Android 11 system
  • Fluid writing with text and drawing recognition
  • Infrared touch screen with 32/40 points
  • Wireless sharing
  • Optional OPS
  • Tempered glass protection

Specifications

  • 75 " 4K DLED display with Zero Air Gap technology
  • Maximum resolution: 3840 × 2160
  • Aspect ratio: 16:9
  • Brightness: 400 cd/m² / Contrast: 1200:1
  • Viewing angle: 178° (H) / 178° (V)
  • Lifetime: 50,000 hours / Response time: 8 ms
  • Android 11 system with Octa-Core CPU and 8 GB RAM
  • Internal storage: 32 GB (optional 64 GB)
  • Wi-Fi 5 dual-band connectivity (2.4 / 5 GHz) and Bluetooth 5.2
  • Active Wi-Fi hotspot function in conjunction with wireless network
  • Infrared touch input with 32 points (Android) / 40 points (Windows)
  • Touch accuracy ±1 mm, sensing height: 3 mm
  • Writing modes: finger and stylus / Response time: ≤10 ms
  • Artificial intelligence text and geometric figure recognition
  • File sharing via encrypted QR code
  • 8 front buttons: power, home, menu, font, touch lock, curtain, volume, and annotation
  • Inputs: HDMI, USB 3.0, VGA, RS-232, RJ45, Audio, SPDIF, OPS
  • Outputs: HDMI, Audio, SPDIF
  • Built-in speakers: 2 × 15 W front speakers
  • Power supply: 100-240 V AC, 50/60 Hz
  • Power consumption: 150 W (typical) / 300 W (max)
  • Standby power consumption: ≤0.5 W
  • Protection: 4 mm anti-glare tempered glass, 8H hardness
  • Operating temperature: 0 °C to +40 °C / Humidity: 10 % to 90 %.
  • Storage temperature: -10°C to +50°C (-10°F to +50°F)
  • Product dimensions: 1707.5 × 93 × 1050 mm (5.5 × 93 × 1050 mm)
  • Net weight: 52 kg / Gross weight: 65 kg
  • Installation: wall bracket included or mobile bracket (optional).
  • Certifications: CE, Energy Star, RoHS, REACH, WEEE
REFERENCE / MODEL DAHUA-4863 / DHI-LPH75-ST470
Resolution 4K
Audio Speaker
Technology LED || WIFI
Inches >52
Input interface HDMI || RJ45 || RS232 || USB
