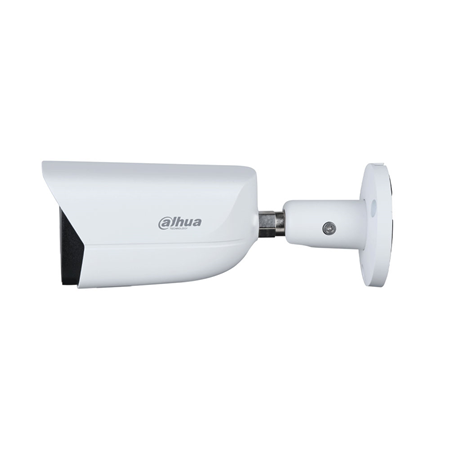

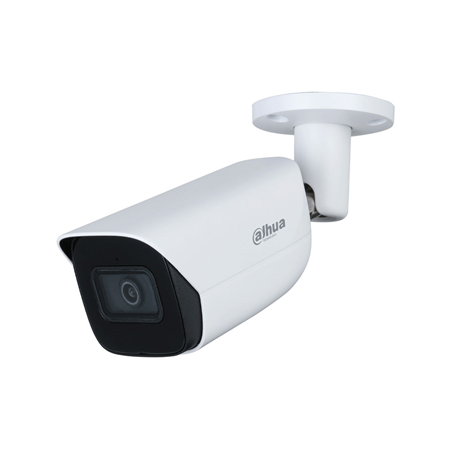

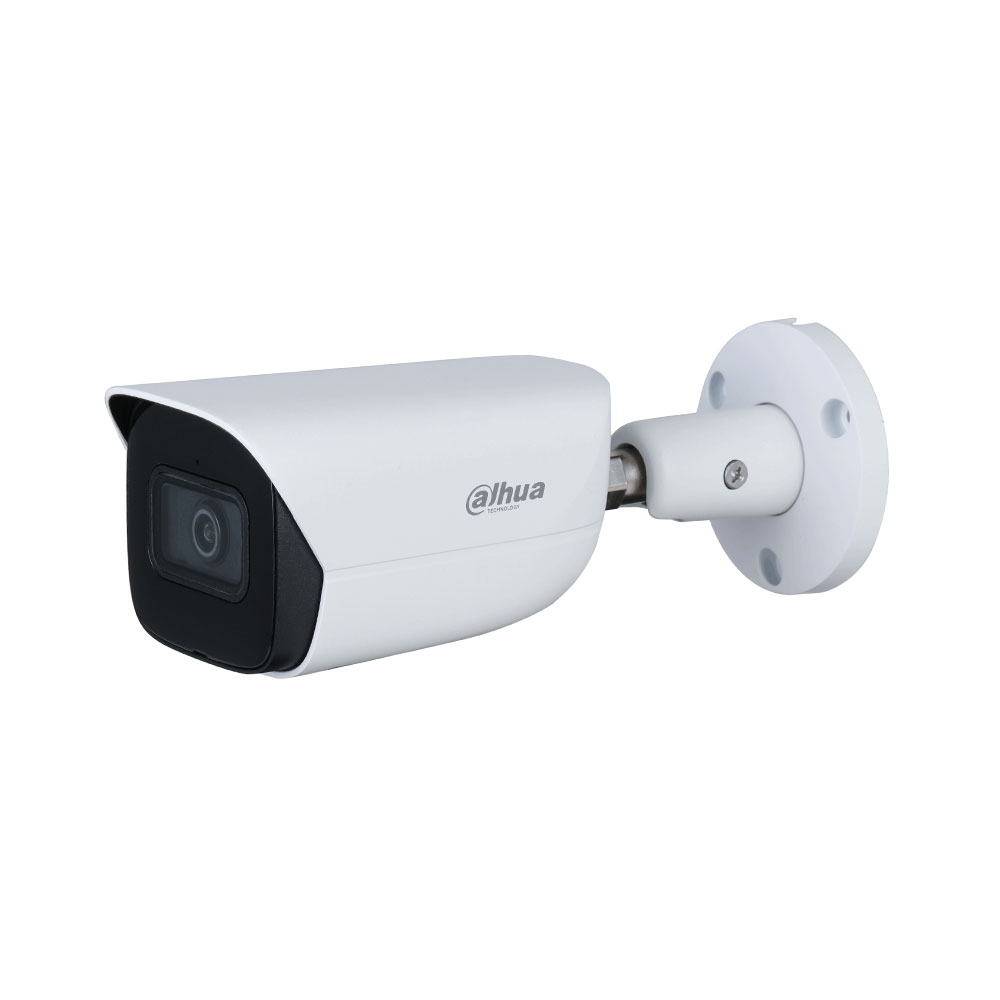

WizSense 5MP outdoor IP camera

Name: DAHUA-039
SKU: DH-IPC-HFW2541EP-S-0280B
Rating: 5 (40 reviews)

DAHUA-039

DH-IPC-HFW2541EP-S-0280B

This product is discontinued

Main features

Dahua WizSense IP Camera
5MP@20ips, Smart H.265+
ICR, 0.005/0.0005 lux, Smart IR 30m
2.8mm fixed optics
WDR 120dB, 3D-NR, 4 ROI
Perimeter protection
Built-in microphone
MicroSD slot, RJ45, Onvif, IP67, 3AXIS, PoE.

Specifications

5-megapixel 1/2.7" CMOS sensor
Compression Formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG
Digital resolution: 5MP (2592x1944), 4MP (2688x1520), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288)
Stream 1: 5MP (1~20 ips), 4MP (1~25/30 ips)
Stream 2: D1 (1~25/30 ips)
Day/night mode with removable mechanical filter
Smart IR: 1 led, range 30 meters
0.005 lux F1.6 (color), 0.0005 lux F1.6 (B/W), 0 lux IR On
2.8 mm fixed optics
Angle of view: 97°(H), 71°(V), 129°(D)
Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror.
White balance with 6 modes
Automatic and manual gain control
Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask
Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification)
SMD Plus
Built-in microphone
MicroSD card slot up to 256GB (not included)
Network interface: RJ45 (10/100 Base-T)
Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
ONVIF (Profile S/G/T), CGI, P2P, Milestone, SDK and API support
Up to 20 users
Remote viewing via IE, Chrome and Firefox browsers
Smart PSS, DSS, DMSS management software
Compatible with IOS and Android mobile devices
Power supply: 12V DC / PoE (802.3af)
Power consumption: 5.5W (12V) / 6.2W (PoE)
Storage temperature from -40°C ~ +60°C
Operating temperature from -40°C ~ +60°C
Relative humidity: ≤95%.
IP67 degree of protection
Metal housing
Dimensions: 70,5 (W) x 66,4 (H) x 192,7 mm
Net weight: 590 g
Gross weight: 780 g
3AXIS: 0°~360°(PAN), 0°~90°(TILT), 0°~360°(Rotation)
