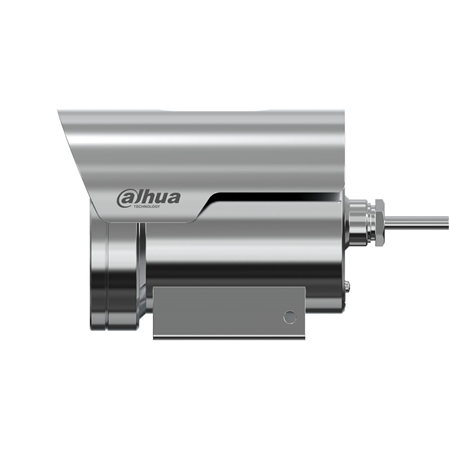

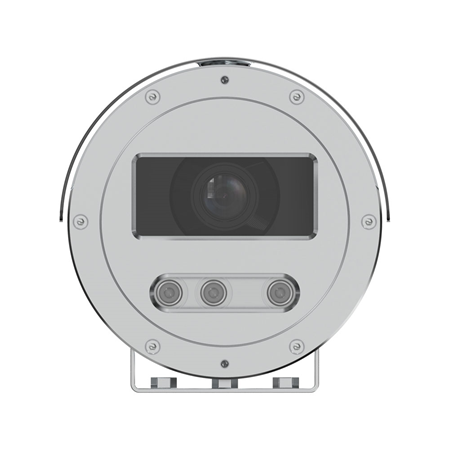

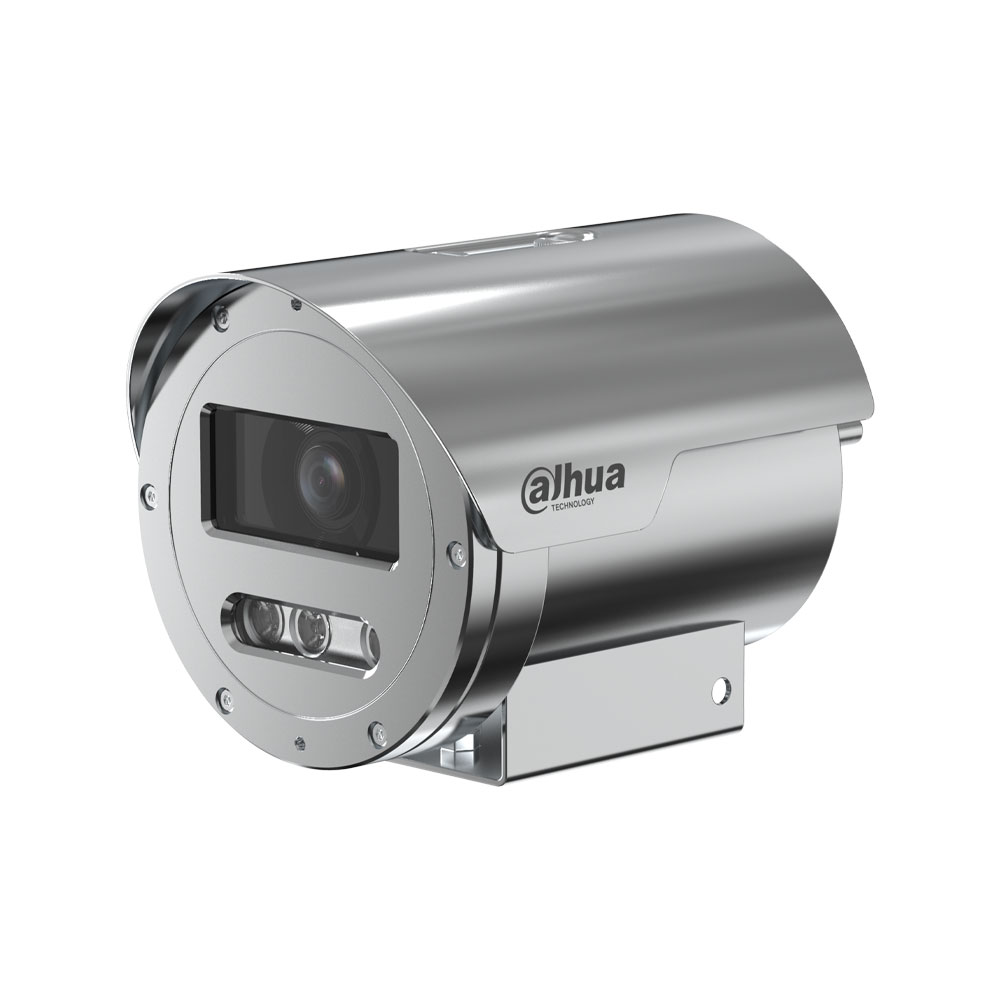

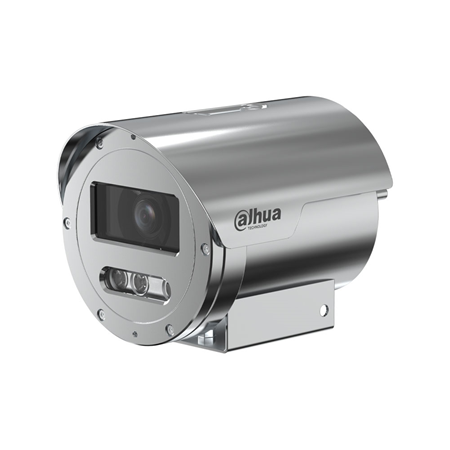

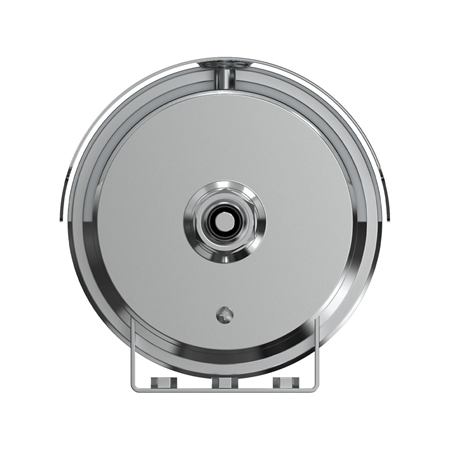

Dahua 8MP explosion-proof IP camera with 2.7~13.5 mm motorised lens and 50 m IR for outdoor use

Technical Specifications

• Dahua 8MP Explosion-Proof IP Camera for Video Surveillance in Industrial Environments
• 1/2.8" CMOS sensor with 8MP resolution (3840x2160)
• Progressive scan system
• Minimum illumination of 0.007 lux in color and 0.0007 lux in black and white at F1.5, 30 IRE
• 0 lux with infrared illumination enabled
• Signal-to-noise ratio greater than 56 dB
• Infrared illumination up to 50 m
• 3 infrared LED illuminators
• Automatic, manual, or zoom-priority illumination control
• Varifocal lens Motorized zoom range of 2.7–13.5 mm
• Maximum aperture F1.5
• Horizontal field of view: 109°–30°, vertical: 56°–17°, and diagonal: 131°–35°
• Fixed iris control
• Minimum focus distance: 0.8 m
• Automatic or manual electronic shutter from 1/3 s to 1/100,000 s

Video stream

• Video compression: H.265, H.264, H.264H, H.264B, and MJPEG in substream
• Smart H.265+ and Smart H.264+ intelligent encoding
• AI H.265 and AI H.264 encoding
• 3 video streams
• Stream 1: 8MP (3840x2160) @ 1–25/30 fps
• Stream 2: D1 (704x576/704x480) @ 1–25/30 fps
• Stream 3: 1080p (1920x1080) @ 1–25/30 fps
• Resolutions: 8MP (3840x2160), 6MP (3072x2048), 5MP (3072x1728/2592x1944), 4MP (2688x1520/2560x1440), 3MP (2048x1536/2304x1296), 1080P (1920x1080), 720P (1280x720), D1 (704x576/704x480), VGA (640x480), and CIF (352x288)
• CBR/VBR bitrate control
• H.264 bit rate: 32–16,384 kbps
• H.265 bit rate: 32–16,384 kbps

Functionalities

• Automatic day/night mode via ICR, color, or black-and-white
• 120 dB true WDR for backlight compensation
• BLC (Backlight Compensation) and HLC (Highlight Compensation)
• 3D NR digital noise reduction
• Intelligent Scene Adaptation (SSA)
• Auto, Natural, Streetlight, Outdoor, Manual, and Region-Specific White Balance
• Automatic gain control
• Electronic Image Stabilization (EIS)
• Defog Function
• Configurable motion detection in 4 areas
• 4 regions of interest (ROI)
• Digital image rotation: 0°, 90°, 180°, and 270°
• Mirror function
• 4-area privacy masking

Smart features

• Perimeter protection via intrusion, line crossing, rapid movement, loitering detection, crowd gathering, and parking
• Intelligent classification of people and vehicles for intrusion, line crossing, and rapid movement detection
• Detection of abandoned and missing objects
• Facial detection with image capture and optimization
• Extraction of 6 facial attributes and 8 expressions
• Real-time facial capture, prioritized by quality and optimized
• People counting based on line crossing and time spent in areas
• Queue management and report generation
• Heat map
• SMD 4.0 with intelligent target classification
• Quick Pick for searching for people and vehicles when combined with compatible smart NVRs
• Smart Search in combination with compatible smart NVRs

Audio

• 1 audio input / 1 audio output via RCA connectors
• Audio compression: G.711a, G.711Mu, PCM, G.726, and G.723

Storage

• MicroSD slot supporting up to 512 GB (card not included)
• Storage via FTP, SFTP, and NAS

Alarms

• 1 alarm input / 1 alarm output
• Alarm input compatible with a wet contact rated at 3–5 V DC and a maximum load of 5 mA
• Alarm output via dry contact up to 1000 mA at 30 V DC or 500 mA at 50 V AC
• Events triggered by motion detection, video tampering, and audio tampering
• Smart events for intrusion, line crossing, abandoned objects, loitering, facial detection, SMD, and people counting
• SD card error detection, missing card, and insufficient space
• Detection of network disconnection, IP conflicts, and unauthorized access

Communication interface

• 1 RS485 interface with a baud rate of 1200–115,200 bps

Network

• 10/100 Mbps RJ45 Ethernet port
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, and P2P
• ONVIF Profile S, G, and T compatibility
• Interoperability via CGI
• Up to 20 users with a total bandwidth of 80 Mbps
• Compatible with Smart PSS, DSS, and DMSS
• Access from iOS and Android mobile devices
• Cybersecurity features including HTTPS, IP/MAC filtering, account locking, security logs, X.509 certificates, and trusted boot

Power

• 12V DC or PoE power supply
• Typical power consumption of 3.96 W at 12V DC and 4.95 W via PoE
• Maximum power consumption of 9.2 W at 12V DC and 11.5 W via PoE with intelligence, WDR, IR illumination, and autofocus enabled

Environmental

• Operating temperature range: -30°C to +60°C
• Operating humidity up to 95%
• Storage temperature: -40°C to +60°C
• IP68 protection against dust and water
• 2000V TVS lightning protection
• Protection against overvoltage and voltage transients

Physical Characteristics

• Explosion-proof IP camera design for industrial installations
• SUS304 stainless steel housing
• 2-meter connection cable

Contents

• Dahua 8MP explosion-proof IP camera with 2.7–13.5 mm motorized Varifocal lens, model DAHUA-5401 (DH-IPC-HFE8841RP-Z-27135-304)

Certifications and Standards

• EU Declaration of Conformity from the manufacturer for the Electromagnetic Compatibility Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU, and the Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
• Compliance with EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4, EN 55035, EN IEC 62368-1, and EN IEC 63000
