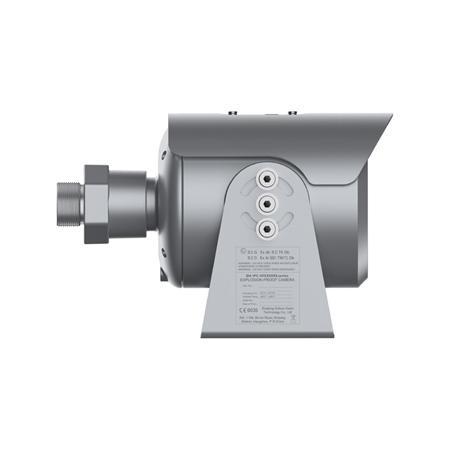

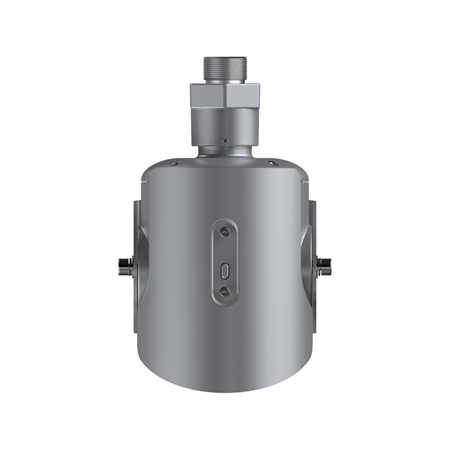

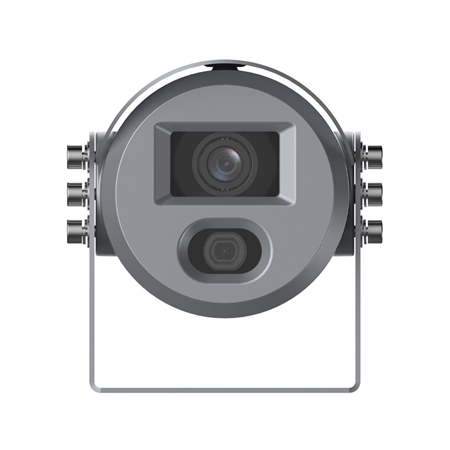

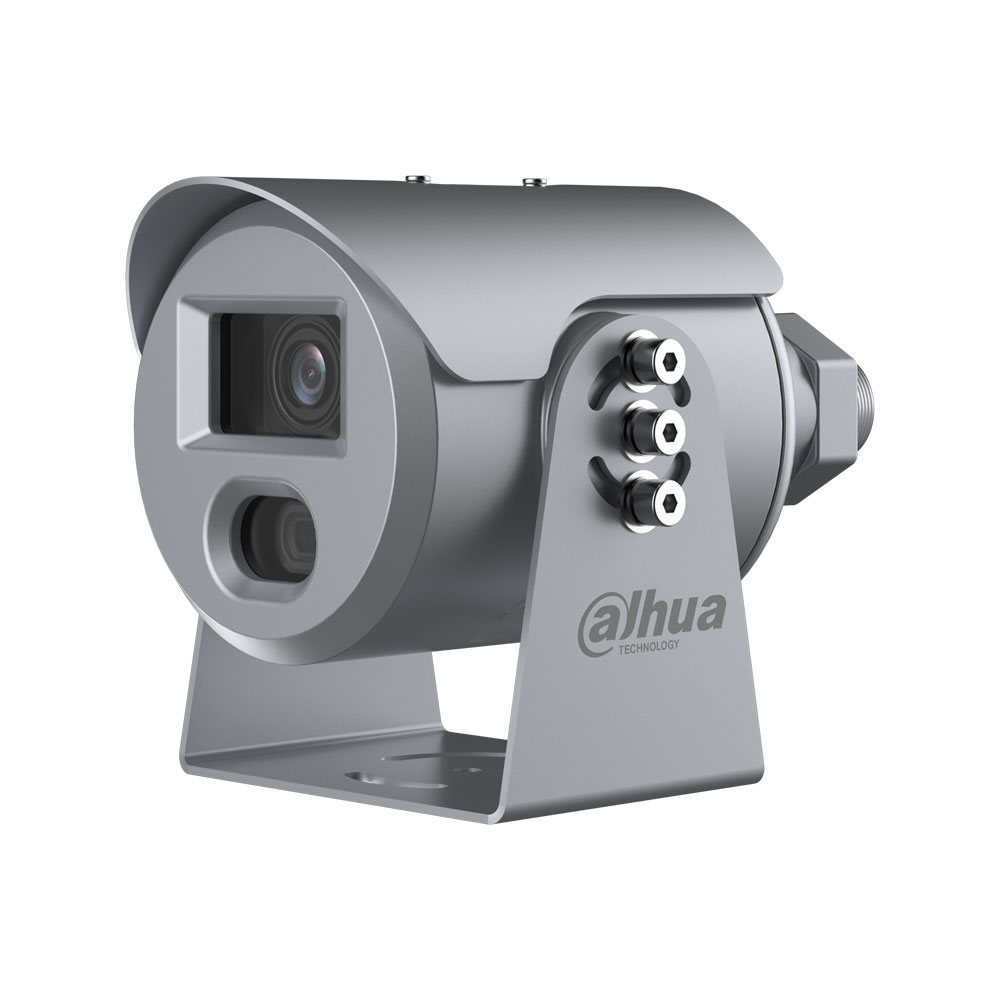

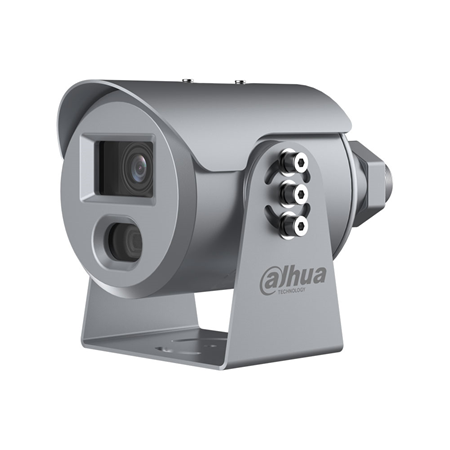

Dahua Explosion-proof Series 4MP explosion-proof IP camera with AcuPick, 3.6 mm lens and 50 m IR

Technical Specifications

• Dahua Explosion-Proof WizMind Series 4MP IP Camera for Industrial Video Surveillance
• 1/3" CMOS sensor with a maximum resolution of 4MP (2688x1520)
• Progressive scan system
• 512 MB ROM and 1 GB RAM
• Minimum illumination of 0.005 lux in color and 0.0005 lux in black and white at F1.6, 30 IRE
• 0 lux with infrared illumination enabled
• Signal-to-noise ratio greater than 56 dB
• Infrared illumination with a range of up to 50 m
• 1 infrared LED illuminator with automatic or manual control
• Fixed lens 3.6 mm with M12 mount
• Maximum aperture F1.6
• Horizontal field of view of 83.9°, vertical field of view of 43°, and diagonal field of view of 100.4°
• Fixed iris
• Minimum focus distance of 1.7 m
• Automatic or manual electronic shutter from 1/3 s to 1/100,000 s
• DORI distances for the 3.6 mm Lens: detection 85.4 m, observation 34.2 m, recognition 17.1 m, and identification 8.5 m

Video stream

• Video compression: H.265, H.264, H.264H, H.264B, and MJPEG in the secondary stream
• Smart H.265+ and Smart H.264+ intelligent encoding
• AI H.265 and AI H.264 encoding
• 3 configurable video streams
• Stream 1: 4MP (2688x1520)@25/30 fps
• Stream 2: D1 (704x576)@25 fps or D1 (704x480)@30 fps
• Stream 3: 1080p (1920x1080) @ 25/30 fps
• Resolutions: 4MP (2688x1520/2560x1440), 3MP (2048x1536/2304x1296), 1080P (1920x1080), 1.3MP (1920x960), 720P (1280x720), D1, VGA, and CIF
• VBR, CBR, and ABR bitrate control
• H.264 and H.265 bit rates from 3 to 16,384 kbps

Functionalities

• Automatic day/night mode via ICR, color, or black-and-white
• 120 dB true WDR for backlight compensation
• Backlight compensation (BLC) and high-light compensation (HLC)
• 3D NR digital noise reduction
• AI SSA (Intelligent Scene Adaptation) using deep learning algorithms
• AFSA (Automatic Flicker Adaptation) function
• Auto, Natural, Streetlight, Outdoor, Manual, and Region-Specific Custom White Balance
• Automatic Gain Control
• Defog function
• Configurable motion detection in 4 rectangular areas
• 4 Regions of Interest (ROI)
• Digital image rotation: 0°, 90°, 180°, and 270°
• Mirror function
• Privacy masking for up to 4 areas
• Digital watermark to protect video integrity

Smart features

• Perimeter protection via intrusion, line crossing, rapid movement, loitering detection, crowd gathering, and parking
• Smart classification of people and vehicles in intrusion, line-crossing, and rapid movement detection
• Detection of abandoned and missing objects
• AcuPick for intelligent search and location of people and vehicles using compatible recording devices
• Facial detection with tracking, capture, image optimization, and enhancement
• Extraction of 6 facial attributes and 8 expressions
• Real-time facial capture, prioritized by quality and optimized
• People counting based on line crossing and time spent in areas
• Queue management with up to 4 configurable rules
• Generation and export of daily, weekly, monthly, and annual people-counting reports
• Heat map
• SMD 4.0 with intelligent target classification to reduce false alarms
• Smart Search combined with compatible smart NVRs for refined search and event extraction

Audio

• 1 audio input / 1 audio output via connection terminals
• Audio compression: PCM, G.711a, G.711Mu, G.726, and G.723

Storage

• MicroSD card slot supporting up to 512 GB (card not included)
• Storage via FTP, SFTP, and NAS

Alarms

• 1 alarm input / 1 alarm output
• Alarm input via wet contact with 3–5 V DC and 5 mA load
• Alarm output via wet contact, 12V DC, 300 mA
• Events triggered by motion detection, video tampering, and audio anomalies
• Smart events for intrusion, line crossing, rapid movement, abandoned or missing objects, loitering, crowd gathering, and parking
• Alarms for facial detection, SMD, and people counting
• Alarms for number of people and wait times in lines
• Detection of missing SD card, full SD card, and storage errors
• Detection of network disconnection, IP conflicts, and unauthorized access
• Scene change detection, voltage anomalies, and security exceptions

Network

• 10/100 Mbps RJ45 Ethernet port
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, and P2P
• ONVIF compatibility with profiles S, G, T, and M
• Interoperability via CGI, SDK, and API
• Up to 20 users with a total bandwidth of 80 Mbps
• Compatible with Smart PSS Lite, DSS, DMSS, and DoLynk Care
• Access from iOS and Android mobile devices
• Cybersecurity features via HTTPS, 802.1X, IP/MAC filtering, account locking, X.509 certificates, and security logs
• Trusted boot, execution, and updates

Power

• 12V DC (±30%) or PoE (IEEE 802.3af) power supply
• Typical power consumption of 4.3 W at 12V DC and 4.9 W via PoE
• Maximum power consumption of 6.2 W at 12V DC and 8 W via PoE with H.265+, smart features, WDR, and IR illumination enabled

Environmental

• Operating temperature range: -40°C to +60°C
• Operating humidity up to 95%, non-condensing
• Storage temperature: -40°C to +60°C
• Storage humidity up to 95%, non-condensing
• IP68 protection against dust and water
• Moderate corrosion protection via a heavy-duty coating

Physical Characteristics

• Explosion-proof IP camera design for industrial installations
• Aluminum alloy housing with anti-corrosion coating
• Dimensions: 200.6 x 127 x 136 mm
• Net weight: 2.1 kg
• Gross weight: 2.5 kg

Contents

• Dahua Explosion-Proof Series 4MP IP Camera with 3.6 mm Fixed lens, Model DAHUA-5408 (DH-IPC-HFE8441SP-AS-0360B-AL)

Certifications and Standards

• Certifications declared by the manufacturer for the documented technical family
• CE-LVD in accordance with EN 62368-1
• CE-EMC in accordance with the Electromagnetic Compatibility Directive 2014/30/EU
• ATEX Certification TÜV 24 ATEX 9126 X
• IECEx Certification TUR 24.0026X
• Explosion-proof marking II 2 G Ex db IIC T6 Gb and II 2 D Ex tb IIIC T80°C Db
• UL 50E NEMA Type 4X for corrosion resistance
