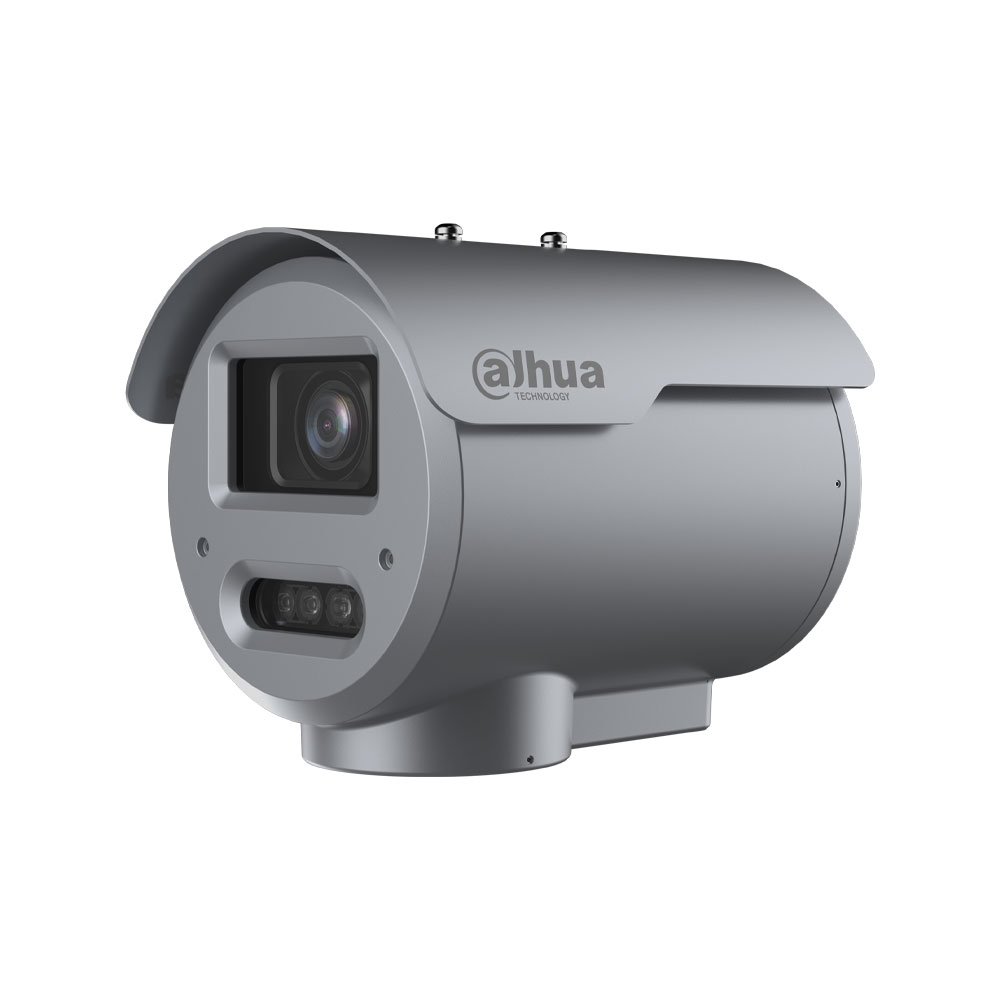

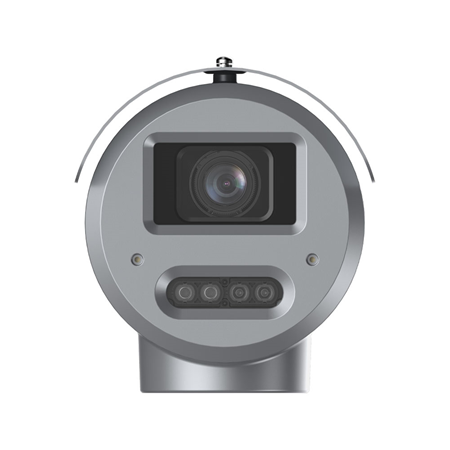

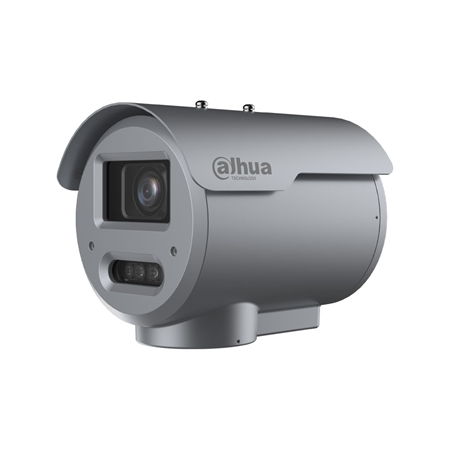

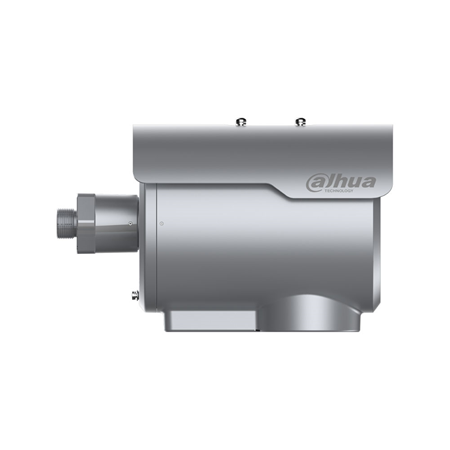

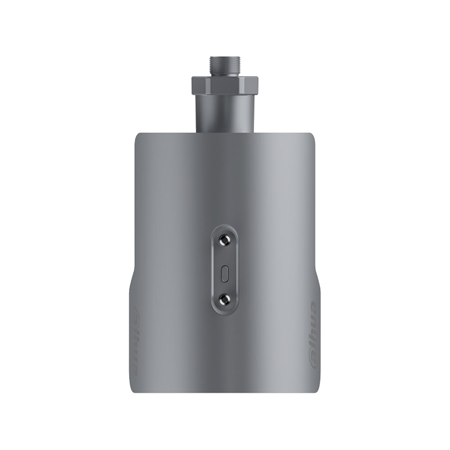

Dahua Explosion-proof Series 8MP ATEX IP camera with Smart Dual Light, active deterrence and 100–240V AC

Technical Specifications

• Dahua Explosion-Proof WizMind Series 8MP IP Camera with Active Deterrence and AC Power Supply
• 1/1.8" CMOS sensor with a maximum resolution of 8MP (3840x2160)
• Progressive scan system
• 512 MB ROM and 2 GB RAM
• Minimum illumination of 0.003 lux in color and 0.0003 lux in black and white at F1.2, 30 IRE
• 0 lux with illumination enabled
• Signal-to-noise ratio greater than 56 dB
• Infrared illumination with a range of up to 50 m
• Warm light illumination with a range of up to 50 m
• 2 infrared LED illuminators and 2 warm light illuminators
• Automatic or manual lighting control
• Varifocal lens Motorized zoom of 2.7–12 mm
• Ø16 mm Lens
• Maximum aperture F1.2
• Horizontal field of view: 96°–48°, vertical: 51°–27°, and diagonal: 114°–56°
• Automatic DC-Iris control
• Minimum focus distance: 0.16 m
• Automatic or manual electronic shutter from 1/3 s to 1/100,000 s
• DORI ranges in wide-angle mode: detection 98 m, observation 39.2 m, recognition 19.6 m, and identification 9.8 m
• DORI ranges in telephoto mode: detection 186.6 m, observation 74.6 m, recognition 37.3 m, and identification 18.7 m

Video stream

• Video compression: H.265, H.264, H.264H, H.264B, and MJPEG in the secondary stream
• Smart H.265+ and Smart H.264+ intelligent encoding
• AI H.265 and AI H.264 encoding
• 3 configurable video streams
• Stream 1: 8MP (3840x2160) @ 1–25/30 fps
• Stream 2: D1 (704x576)@1–25 fps or D1 (704x480)@1–30 fps
• Stream 3: 1080P (1920x1080) @ 1–25/30 fps
• Resolutions: 8MP (3840x2160), 6MP (3200x1800), 5MP (3072x1728), 4MP (2688x1520/2560x1440), 3MP (2304x1296), 1080P (1920x1080), 720P (1280x720), D1, VGA, and CIF
• VBR, CBR, and ABR bitrate control
• H.264 and H.265 bitrate: 3–16,384 kbps

Functionalities

• Smart Dual Light technology with infrared illumination and warm light
• Active deterrence via audible alerts and flashing lights during alarm events
• One-touch disarm to simultaneously disable light, sound, and email notification alarm actions
• Day/night mode in color or black-and-white
• 120 dB WDR for backlight compensation
• Backlight Compensation (BLC) and High-Light Compensation (HLC)
• 3D NR digital noise reduction
• Electronic image stabilization (EIS)
• AI SSA (Intelligent Scene Adaptation) using deep learning algorithms
• AFSA (Automatic Flicker Adaptation) function
• Defog function
• Lens heating system to remove water, ice, snow, and fog
• Auto, Natural, Streetlight, Outdoor, Manual, and Region-Specific Custom White Balance
• Automatic gain control
• Configurable motion detection in 4 rectangular areas
• 4 regions of interest (ROI)
• Digital image rotation: 0°, 90°, 180°, and 270°
• Mirror function
• Privacy masking for up to 4 areas

Smart features

• Perimeter protection via intrusion, line crossing, rapid movement, loitering detection, crowd gathering, and parking
• Smart classification of people and vehicles in intrusion, line-crossing, and rapid movement detection
• Detection of abandoned and missing objects
• AcuPick for smart search and location of people and vehicles using compatible devices
• Facial detection with tracking, capture, image optimization, and enhancement
• Extraction of 6 facial attributes and 8 expressions
• Real-time facial capture, prioritized by quality and optimized
• Detection of personal protective equipment (PPE), including helmets, masks, gloves, reflective vests, footwear, and work clothing
• Detection of compliance or non-compliance with configured PPE requirements
• Self-learning to recognize different colors and styles of work clothing
• Automatic license plate recognition (ANPR/LPR) with tracking, capture, and prioritization of targets
• Identification of license plate number, vehicle type, and vehicle color
• Lists of up to 10,000 authorized license plates and 10,000 blocked license plates
• Vehicle license plate recognition at speeds of up to 60 km/h
• People counting via line crossing and dwell time in areas
• Queue management with up to 4 configurable rules
• Generation and export of daily, weekly, monthly, and annual people-counting reports
• Heat map
• SMD 4.0 with intelligent target classification to reduce false alarms
• Smart Search combined with compatible smart NVRs for refined search and event extraction

Audio

• 2 built-in microphones with adaptive noise reduction
• Built-in large-diameter Hi-Fi speaker
• Two-way audio
• 1 audio input / 1 audio output via connection terminals
• Audio compression: PCM, G.711a, G.711Mu, G.726, and G.723

Storage

• MicroSD card slot supporting up to 512 GB (card not included)
• Storage via FTP, SFTP, and NAS

Alarms

• 1 alarm input / 1 alarm output
• Alarm input via wet contact with 3–5 V DC and 5 mA load
• Alarm output via wet contact, 12V DC, 300 mA
• Events triggered by motion detection, video tampering, and audio anomalies
• Smart events for intrusion, line crossing, rapid movement, loitering, abandoned and missing objects, crowd gathering, and parking
• Alarms for facial detection, license plate recognition, PPE detection, and SMD 4.0
• Alarms for people counting, number of people in lines, and wait times
• Detection of missing SD card, full SD card, and storage errors
• Detection of network disconnection, IP conflicts, and unauthorized access
• Scene change detection and security exceptions

Communication interface

• 1 RS485 interface with a speed of 1200–115,200 bps

Network

• 10/100 Mbps RJ45 Ethernet port
• Protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, and P2P
• ONVIF compatibility: Profiles S, G, T, and M
• Interoperability via CGI, SDK, and API
• Up to 20 users with a total bandwidth of 80 Mbps
• Compatible with Smart PSS Lite, DSS, DMSS, and DoLynk Care
• Access from iOS and Android mobile devices
• Cybersecurity features via HTTPS, 802.1X, IP/MAC filtering, account locking, X.509 certificates, and security logs
• Trusted boot, execution, and updates

Power

• 100–240 V AC at 50/60 Hz or PoE+ (IEEE 802.3at)
• Basic power consumption of 4.2 W with 100–240 V AC power supply and 6.3 W via PoE
• Maximum power consumption of 12.18 W with 100–240 V AC power supply and 16.1 W via PoE with H.265+, smart features, WDR, IR illumination, and autofocus enabled

Environmental

• Operating temperature: -30°C to +60°C
• Operating humidity up to 95%, non-condensing
• Storage temperature: -40°C to +60°C
• Storage humidity up to 95%, non-condensing
• IP68 protection against dust and water
• Moderate corrosion protection via a heavy-duty coating

Physical Characteristics

• Explosion-proof IP camera design for industrial and outdoor installations
• Aluminum alloy metal housing with anti-corrosion coating
• Dimensions: 276.5 x 154.5 x 173 mm
• Net weight: 4.19 kg
• Gross weight: 4.86 kg

Contents

• Dahua Explosion-Proof Series 8MP IP Camera with 2.7–12 mm Motorized lens, active deterrence, and AC power supply DAHUA-5410 (DH-IPC-HFE8849FP-Z-PV-2712-AC220V-AL)

Certifications and Standards

• ATEX Certification TÜV 24 ATEX 9121 X
• IECEx Certification TUR 24.0021X
• Explosion-proof marking: II 2 G Ex db IIC T6 Gb and II 2 D Ex tb IIIC T80°C Db
• CE-LVD in accordance with EN 62368-1
• CE-EMC in accordance with the 2014/30/EU Electromagnetic Compatibility Directive
• UL 50E NEMA Type 4X for corrosion resistance
