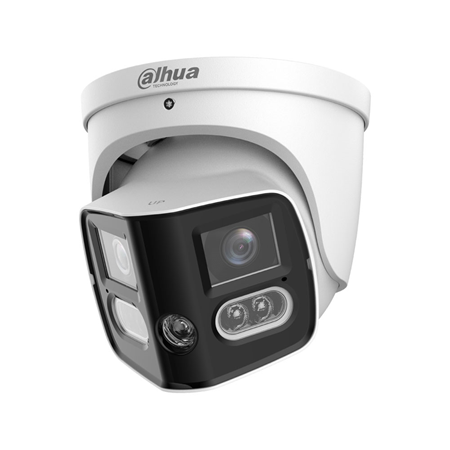

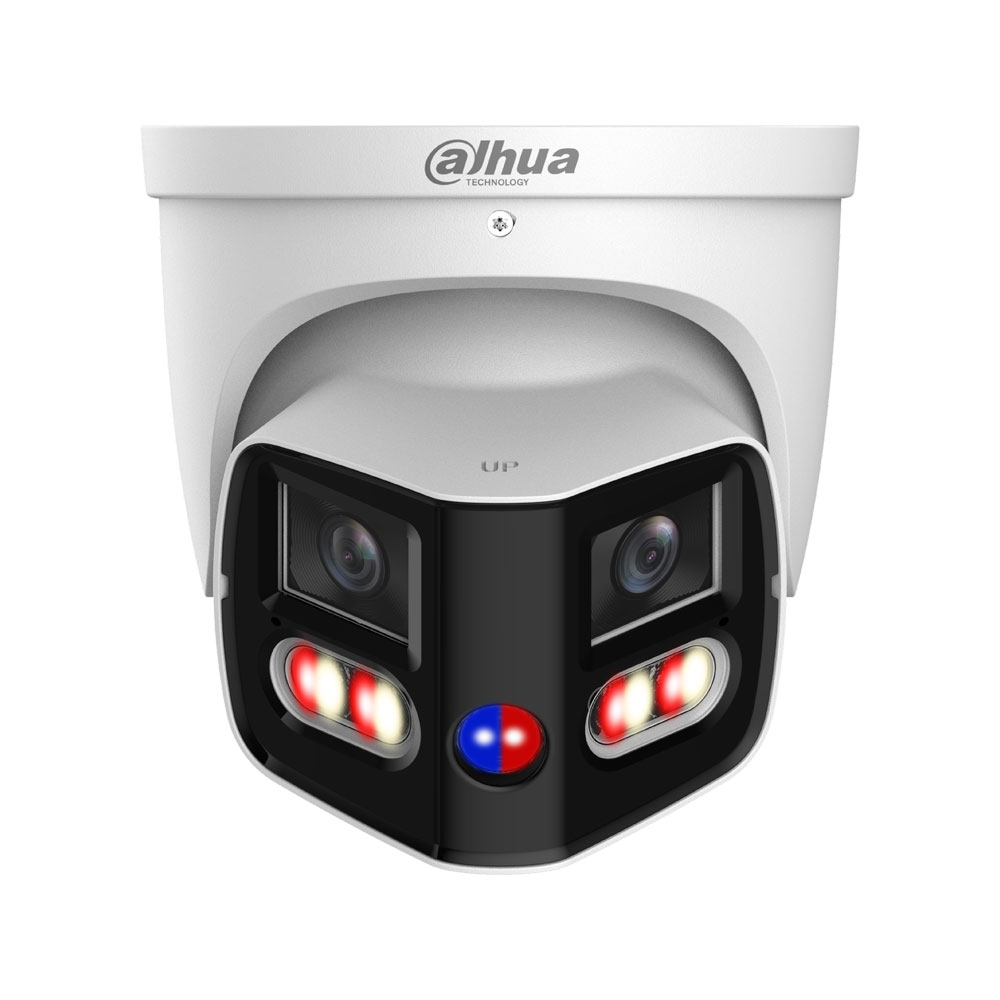

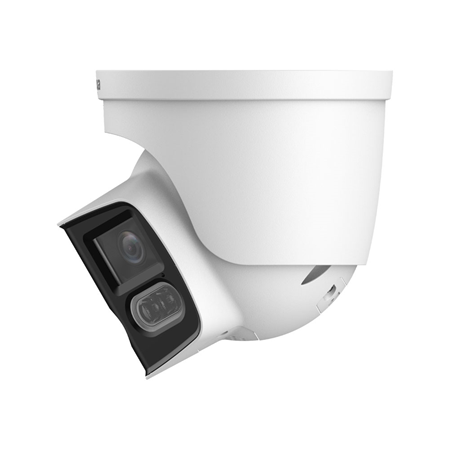

Dahua WizSense 3 8MP panoramic IP mini-dome with 180° view for outdoor use

Technical Specifications

• Dahua WizSense 3 Panoramic IP Mini-Dome with 2x4MP System and 180° Image Fusion
• 1/2.7" CMOS sensor with a maximum resolution of 8MP (4320×1944)
• Minimum illumination of 0.003 lux@F1.4 in color, 0.0003 lux@F1.4 in B/W, and 0 lux with active illuminator
• 4 multi-core illumination elements with IR and warm light
• IR range up to 30 m and warm light range up to 30 m
• Fixed lens 2.8 mm with maximum aperture F1.4
• 180° horizontal and 72° vertical field of view
• Minimum focus distance of 0.8 m
• DORI with detection at 50.6 m, observation at 20.2 m, recognition at 10.1 m, and identification at 5.1 m

Video stream

• H.265, H.264, H.264H, H.264B, and MJPEG compression in substream
• AI H.264 and AI H.265 encoding with Smart H.264+ and Smart H.265+
• Stream 1: 8MP (4320×1944)@20 fps
• Stream 2: 1200×536@20 fps
• Stream 3: 1920×860@20 fps
• 3-stream capability
• Resolutions: 8MP (4320×1944/4096×1860), 1920×860, 1200×536, 960×432, and D1
• VBR, CBR, and ABR bitrate control, from 6 to 16,384 kbps for H.264 and H.265

Functionalities

• Smart Dual Light technology with IR illumination and warm light
• TiOC technology with active deterrence via red and blue lights and an audible alarm
• Steady or flashing light alert for 5–30 seconds at high, medium, or low frequency
• 11 built-in audible alarms and the ability to import custom sounds, with volume ranging from 0 to 100 and 1 to 10 repetitions
• Armed and disarmed with a single press
• Auto Day/Night Mode (ICR), Color, and B/W
• 120 dB WDR, BLC, HLC, and 3D-NR noise reduction
• SSA Automatic Scene Adaptation
• Smart Illumination
• Motion detection configurable in 4 rectangular areas
• Configurable ROI in 4 areas
• Defog and privacy mask in 8 areas
• Digital watermark

Smart Features

• Xinghan Vision large-scale AI models for intelligent on-device processing
• Perimeter protection via intrusion, line crossing, loitering, and loitering detection
• Intrusion and line-crossing with classification and detection of people and vehicles
• SMD 4.0 for target classification and false alarm filtering
• AcuPick for locating people, animals, and vehicles in live and recorded video in conjunction with compatible devices
• Full-frame facial detection with capture, snapshot optimization, and face exposure
• Smart Search combined with a smart NVR for refined searches, event extraction, and video grouping
• EPTZ for zooming in on and electronically tracking targets detected by smart alarms

Audio

• Built-in dual microphone
• Integrated speaker system with a maximum sound level of 110 dB at 10 cm
• Two-way audio
• 1 audio input and 1 audio output via RCA
• PCM, G.711a, G.711Mu, G.726, and G.723 compression

Storage

• MicroSD slot supporting up to 512 GB (card not included)
• Storage via FTP, SFTP, and NAS

Alarms

• 1 alarm input compatible with wet contact up to 5 mA at 3–5 V DC and dry contact
• 1 alarm output via dry contact up to 1,000 mA at 30 V DC or 500 mA at 50 V AC
• Alarms for absence, full capacity, or SD card error; network disconnection; IP conflict; and unauthorized access
• Alarms for motion, video tampering, line crossing, intrusion, loitering, lingering, facial detection, scene change, audio, voltage, defocus, SMD, and security exceptions

Network

• 10/100/1000 Base-T Ethernet RJ45 port
• SDK and API
• IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Bonjour, and Auto Registration
• Compatible with ONVIF profiles S, G, T, and M, and CGI
• Up to 20 users with a total bandwidth of 64 Mbps
• Compatible with IE, Chrome, and Firefox
• Management software: Smart PSS Lite, DSS, DMSS, and DoLynk Care
• Mobile client for iOS and Android
• Security features include Digest, WSSE, account locking, security logs, IP/MAC filtering, X.509 certificates, syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade, and session security

Power

• 12 V DC (±30%) or PoE+ (802.3at) power supply
• Dual power backup when using both a power adapter and PoE simultaneously
• Basic power consumption of 4.1 W at 12 V DC and 5.6 W via PoE
• Maximum power consumption of 12.2 W at 12 V DC and 14.8 W via PoE

Environmental

• Operating temperature: −40 °C to +60 °C
• Operating humidity: ≤95% RH, non-condensing
• Storage temperature: −40 °C to +60 °C
• Storage humidity: ≤95% RH, non-condensing
• IP67 protection

Physical Characteristics

• Metal housing
• Dimensions: 135.2 mm × Φ122.0 mm
• Net weight: 0.99 kg
• Gross weight: 1.15 kg
• 3AXIS: Pan 0°–355°, Tilt 0°–77°, and Rotation 0°–355°
• Can be mounted on a ceiling, wall, pole, or junction box using optional accessories

Contents

• Dahua WizSense 3 Panoramic IP Mini-Dome DAHUA-5543 (DH-IPC-PDW3859P-A180-E2-AS-PV-0280B)

Certifications and Standards

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
