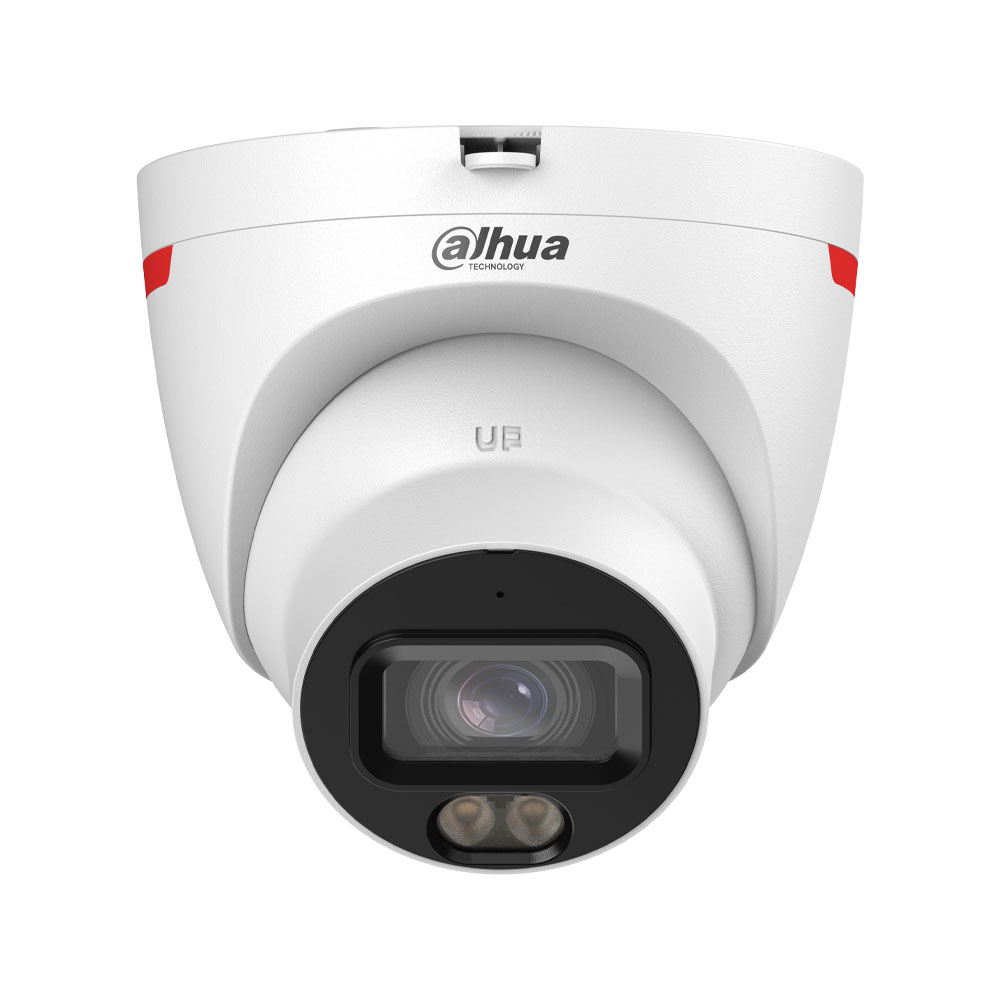

DAHUA-4842 | 4MP WizColor IP Dome for outdoor use
DAHUA-4842DH-IPC-HDW2449TP-S-LED-0280B-PRO4MP WizColor IP Dome for outdoor use
Volver a Network Cameras
Products
CCTV
Network Cameras
Mini-Dome
DAHUA-4842
DAHUA-4842
DAHUA-4842_B

4MP WizColor IP Dome for outdoor use

DAHUA-4842

DH-IPC-HDW2449TP-S-LED-0280B-PRO

Main features

  • 4MP Dahua IP dome with 2.8mm Fixed lens
  • 0.0005 lux
  • Warm illumination up to 30 m
  • H.265+ compression
  • WizColor technology
  • WDR 120 dB
  • Perimeter protection and SMD Plus
  • Built-in microphone
  • MicroSD slot
  • PoE or 12 VDC power supply
  • IP67 protection

Specifications

  • 1/1.8" progressive scan CMOS sensor
  • Maximum resolution: 2688 × 1520 (4MP)
  • Fixed lens 2.8 mm
  • Angle of view: 112° (H), 60° (V), 134° (D)
  • Aperture: F1.0
  • Day/Night Mode: Color / B/W, with ICR Filter
  • Minimum illumination: 0.0005 lux (F1.0)
  • Warm illumination: up to 30 m
  • WDR 120 dB, BLC, HLC, 3D NR, ROI, Smart Illumination, LDC
  • Compression: H.265+, H.265, H.264+, H.264, MJPEG (substream)
  • Stream 1: 2688 × 1520 (1~20 fps), 2560 × 1440 (1~25/30 fps)
  • Stream 2: 704 × 576 (1~25 fps), 704 × 480 (1~30 fps)
  • Supported resolutions: 4MP, 3MP, 1080P, 1.3MP, 720P, D1, VGA, CIF
  • Built-in microphone
  • Audio: G.711a/u, PCM, G.726
  • Intelligent detection: line crossing, intrusion (with classification of people and vehicles)
  • Smart features: SMD Plus, Smart Search (requires compatible NVR).
  • Events: motion, tampering, audio, SD failure, network disconnection, illegal access, IP conflict, voltage
  • Privacy masks: up to 4 zones
  • Storage: MicroSD slot up to 256 GB (card not included), FTP/SFTP, NAS
  • Network protocols: IPv4/IPv6, HTTP, TCP, UDP, RTP, RTSP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, NTP, UPnP, Multicast, ICMP, IGMP, NFS, PPPoE, P2P, Bonjour
  • ONVIF support: S, G, T / CGI profiles
  • Network interface: 1 × RJ45 10/100 Mbps
  • Clients: Smart PSS Lite, DSS, DMSS
  • Supported browsers: IE, Chrome, Firefox
  • Security: HTTPS, digest, WSSE, IP/MAC filtering, 802.1x, secure boot/run/update, X.509, syslog
  • Power supply: 12 VDC ±30 %, PoE (802.3af)
  • Basic power consumption: 2.0 W (12 VDC), 2.5 W (PoE)
  • Maximum power consumption: 5.3 W (12 VDC), 6.4 W (PoE)
  • Operating temperature: -40 °C to +60 °C (-40 °C to +60 °C)
  • Storage temperature: -40 °C to +60 °C (-40 °C to +60 °C)
  • Operating and storage humidity: ≤95% non-condensing
  • IP67 protection
  • Housing: metal core, plastic cover
  • Dimensions: 109.5 × Ø109.9 mm
  • Net weight: 0.42 kg
  • Gross weight: 0.59 kg
REFERENCE / MODEL DAHUA-4842 / DH-IPC-HDW2449TP-S-LED-0280B-PRO
Resolution 4MP
Audio Microphone
IR Distance 21-40m
Ingress protection IP67
Lens 2.8 mm
Special Protection No
Sensor 1/1.8 CMOS
StarLight StarLight
WDR (Backlight) WDR (120dB)
Codec H.264 || H.264+ || H.265 || H.265+
PoE PoE
SD Slot Yes
Colour White
Installation environment Outdoor
Material Metal
Alarm channels No
Connectivity IP || YES (P2P)
AI Series WizColor || WizSense
Intelligent functions Perimeter protection || SMD Plus
Compatibility Onvif
