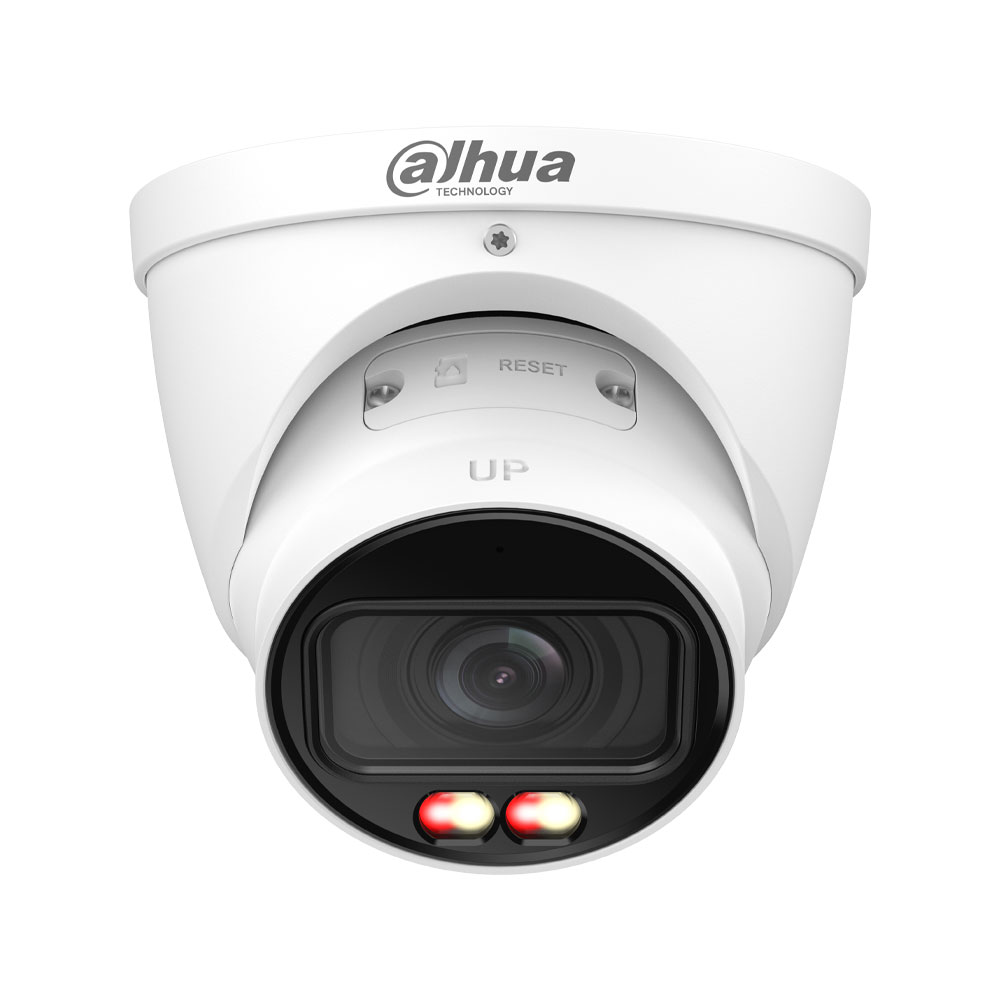

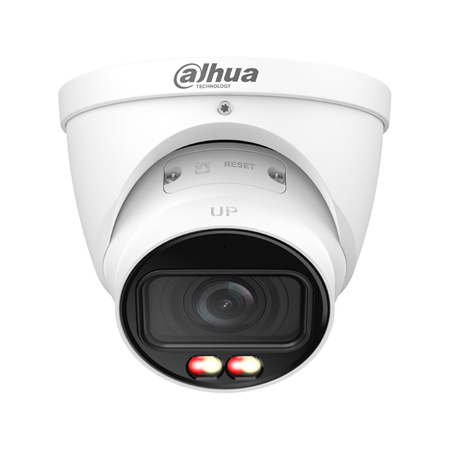

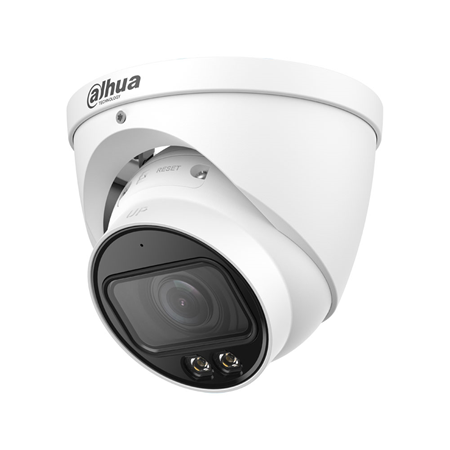

Dahua WizMind 5 4MP IP Dome with Smart Dual Light and Motorized lens 2.7~12 mm

Technical features

• 1/1.8" CMOS sensor
• Maximum resolution 4M (2688×1520)
• Auto Day/Night mode with ICR, color and B/W
• Minimum illumination of 0.0007 lux at F1.8 color, 30 IRE
• Minimum illumination 0.0004 lux at F1.8 in B/W, 30 IRE
• 0 lux with illuminator on
• IR illumination up to 50 m
• Up to 40 m warm light illumination
• Automatic and manual illuminator control
• 2 multi-core IR and warm light illuminators
• Motorized lens varifocal 2.7~12 mm
• φ14 mount
• Maximum aperture F1.8
• 115°~47° horizontal, 62°~27° vertical and 137°~54° diagonal angle of view
• Automatic iris control
• Minimum focusing distance of 0.13 m

Video

• H.265, H.264, H.264H, H.264B, and MJPEG compression in substream
• AI H.265 and AI H.264
• Smart H.265+ and Smart H.264+
• SVC
• Encoding after filter
• Stream 1: 2688 × 1520 at 1~25/30 ips
• Stream 2: 704 × 576 at 1~25 ips / 704 × 480 at 1~30 ips
• Stream 3: 1920 × 1080 at 1~25/30 ips
• Stream 4: 1280 × 720 at 1~25/30 ips
• 4 streams
• 4M, 3M, 1080P, 1.3M, 720P, D1, VGA and CIF resolutions
• VBR and CBR bitrate control
• H.264 bitrate from 3 kbps to 16384 kbps
• H.265 bitrate from 3 kbps to 16384 kbps

Functionalities

• BLC, HLC and 140 dB WDR
• Scene Self-adaptation (SSA)
• Auto, natural, street lamp, outdoor, manual and custom regional white balance
• Automatic and manual gain control
• 3D NR noise reduction
• Motion detection OFF/ON with 4 rectangular areas
• ROI with 4 areas
• Electronic Image Stabilization (EIS)
• Smart Illumination
• Smart Dual Light
• Defog
• 0°, 90°, 180° and 270° image rotation
• Mirror
• Privacy with 4 mosaics or 8 color blocks
• LDC

Intelligent functions

• Perimeter protection with intrusion, line crossing and fast motion with accurate vehicle, animal and human classification
• Loitering detection
• People gathering detection
• Parking detection
• Stay detection
• Self-learning for false alarm filtering
• SMD 4.0
• AcuPick for fast search of people, animals and motor vehicles
• Face detection with snapshot, optimization, face enhancement, face exposure and extraction of 6 attributes and 8 expressions
• People counting by line crossing, area and queue management with export of daily, weekly, monthly and annual reports
• Heat map
• Video metadata for motor vehicles, non-motorized vehicles, face and human body
• Smart Search with Smart NVR for refined smart search, event extraction and merging

Audio

• Built-in microphone
• G.711a, G.711Mu, PCM, G.726 and G.723 audio compression

Storage

• Micro SD up to 1 TB (card not included)
• FTP
• SFTP
• NAS

Network

• RJ45 10/100 Enhancement Base-T port
• Protocols IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P and Auto Registration
• SDK and API
• ONVIF Profile S, Profile G, Profile T and Profile M
• CGI
• 20 users with 80M total bandwidth
• Browsers IE 11 and later, Chrome 102 and later and Firefox 88 and later
• DSS, DMSS and DoLynk Care Software
• iOS and Android mobile client
• Digest security, WSSE, account lockout, security logs, IP/MAC filtering, X.509 certificate generation and import, syslog, HTTPS, 802.1x, Trusted boot, Trusted execution, Trusted upgrade, session security and security warning

Power supply

• 12 V DC power (±30%), PoE+ 802.3at and ePoE
• Dual power backup
• Basic power consumption of 5.9 W at 12 V DC and 6.6 W via PoE
• Maximum power consumption of 15.2 W at 12 VDC and 15.9 W over PoE with focus, WDR, warm light and intelligence on

Environmental

• Operating temperature -40°C to +60°C (-40°F to +40°F)
• Operating humidity up to 95% non-condensing
• Storage temperature -40 °C to +60 °C (-40 °F to +60 °C)
• Storage humidity up to 95 % non-condensing
• IP67 protection

Physical characteristics

• Metal material
• Ceiling, wall, corner or vertical mast installation
• 3AXIS with horizontal adjustment from 0° to 360°, vertical adjustment from 0° to 78° and rotation from 0° to 360°.
• Dimensions of 108.3 mm × Φ122.0 mm
• Net weight 0.70 kg
• Gross weight 0.96 kg

Contents

• Dahua WizMind 5 DAHUA-5225 IP Dome (DH-IPC-HDW5459TP-ZE-IL-2712)

Certifications and standards

• CE-LVD: EN62368-1
• CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
