IDTK-COMPACT 4ch server

IDTK-54

IDTKcompact/4

This product is discontinued

Main features

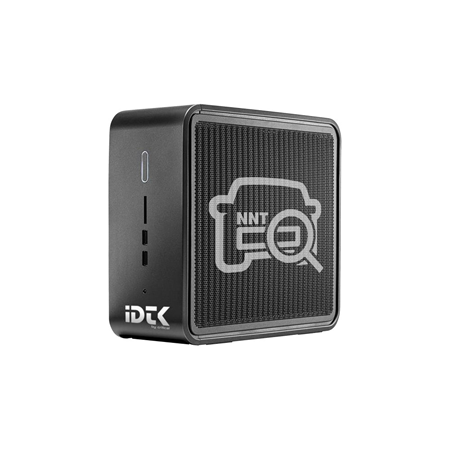

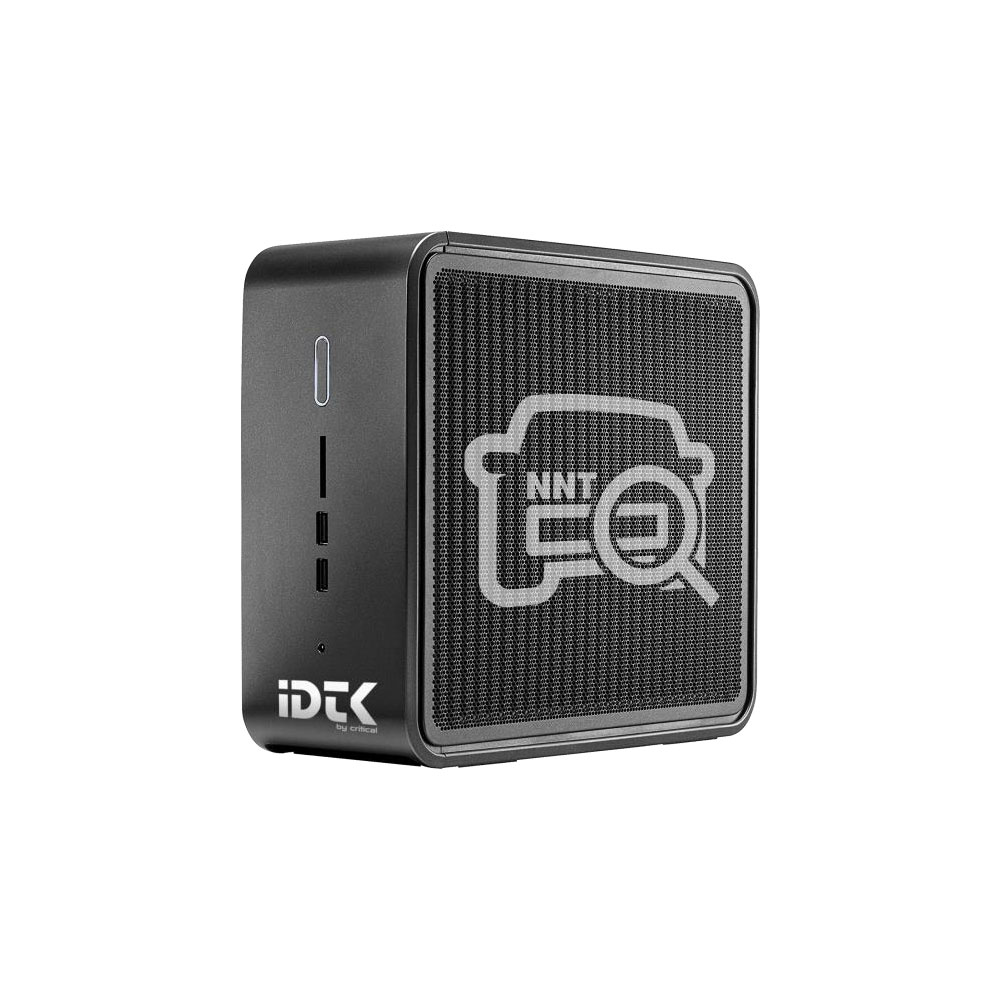

IDTK-Compact 4-channel compact desktop unit for license plate detection
WiFi and Bluetooth communication
Supported protocols RTSP, ONVIF, H264, H265, MPEG
Access to IDTK CLOUD Lite
Includes power supply, VESA support.

Specifications

Compact server for local centralization
4 input channels
Windows operating system
OS version IDTKsoft 4.2
Intel i7 processor
16MB RAM memory
1TB SSD disk storage
HDMI video output
LAN port
4 USB ports
1 USB Type-C port
Bluetooth and WiFi communication
H.265, H.264 and MPEG compression formats
MS SQL Express /Mongo database
Supports up to 70 countries
.AVI and Mp4 video source
Maximum vehicle speed up to 300 km/h
Supports 2-line license plate and special license plates
Supports RTSP, Onvif protocols
Integration with third parties by XML via Socket, JSON, Api Rest and SQL Server
Power supply: 12V ~ 24 DC (power supply included)
Maximum power consumption: 28 W
Operating temperature: -20°C ~ +60°C
Relative humidity up to 90% (non-condensing)
Dimensions: 117 x 112 x 37 mm
Weight: 500 g
Power supply, VESA bracket and basic Icloud included
Certifications: UNI10772 >95%, Applus+ 98.76% efficacy
