IDTK-8

Professional kit IDTK-CITY+/2

IDTK-8

IDTKcity+/2

This product is discontinued
  • MAIN FEATURES
  • SPECIFICATIONS
  • DOCUMENTATION
  • COMMENTS

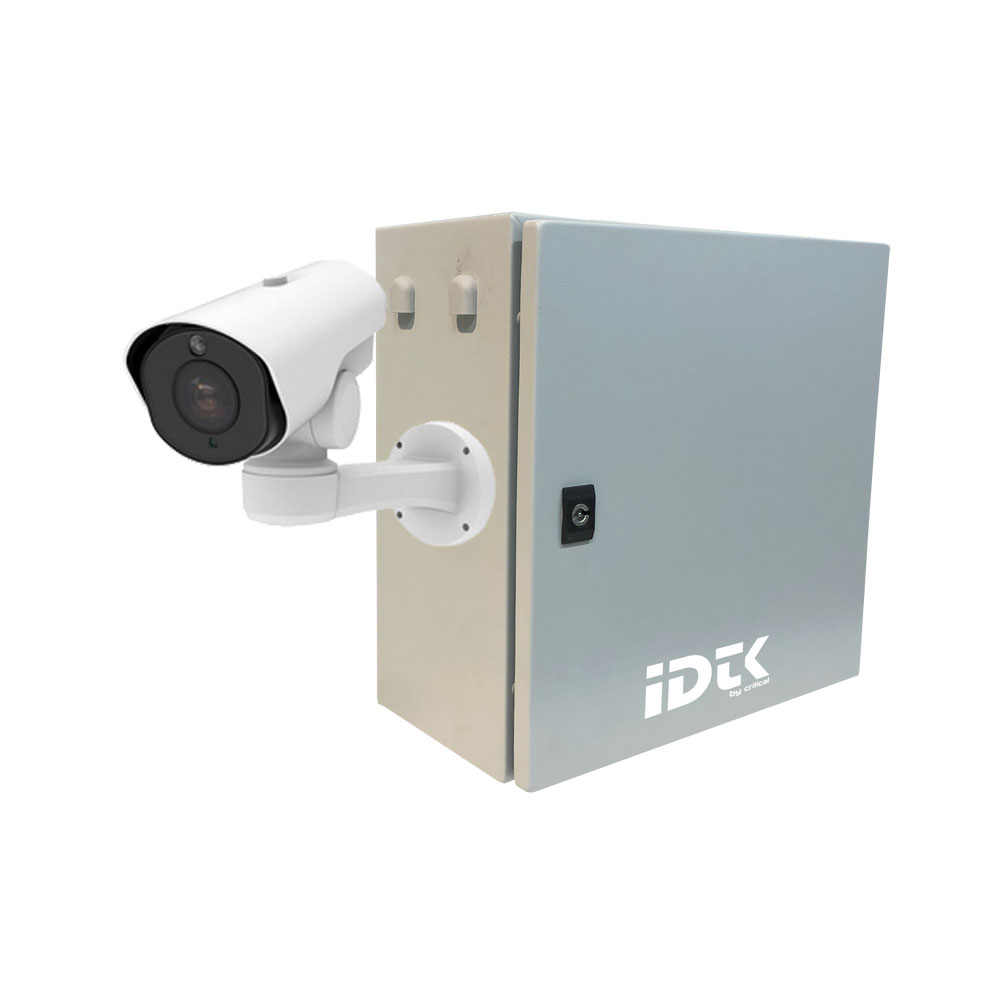

  • IDTK City+ professional compact outdoor mechanized system
  • 2 input channels
  • The kit includes license plate recognition hardware and software, two PLATE-PTZ212X cameras, outdoor fiber box with lock and mast mount and 60 Ah battery.
  • Professional wall or mast equipment
  • 2 input channels
  • Windows operating system
  • OS version IDTKsoft 4.3
  • Intel i5 processor
  • 16MB RAM memory
  • 1TB SSD disk storage
  • HDMI video output
  • LAN port
  • 4 USB ports
  • 1 USB Type-C port
  • Bluetooth and WiFi communication
  • Two IDTK-PLATE12X cameras
  • H.265, H.264 and MPEG compression formats
  • MS SQL Express /Mongo database
  • Supports up to 70 countries
  • Video source .AVI and Mp4
  • Maximum vehicle speed up to 300 km/h
  • Supports 2-line license plate and special license plates
  • Supports RTSP, Onvif protocols
  • Integration with third parties by XML via Socket, JSON, Api Rest and SQL Server
  • Power supply: 240V AC
  • Maximum power consumption: 5.5 Ah / 66 W
  • 60 Ah LiFePO4 battery
  • 25 Ah battery charger
  • Operating temperature -20°C ~ +60°C
  • Relative humidity up to 90% (non-condensing)
  • Built-in fan and thermostat
  • IP66 degree of protection
  • Mechanized fiber cabinet with security lock
  • Dimensions: 530 x 430 x 200 mm
  • Weight: 17 kg
  • Includes 2 x 16A fuses + 4 x 10A fuses, 2 Schuko sockets, 4 x 240V AC terminals, 4 x
  • 12V DC terminals, 2 DIN rails and wall or mast bracket
  • Certifications: UNI10772 >95%, Applus+ 98, 76% efficiency.
