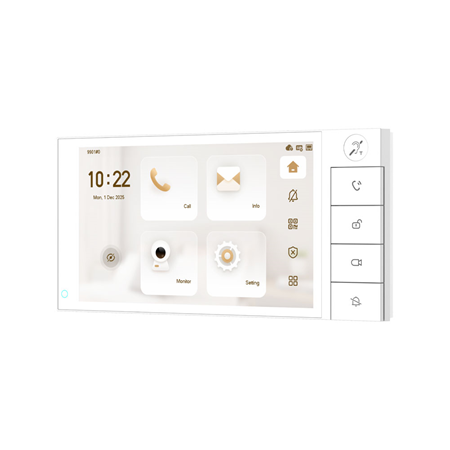

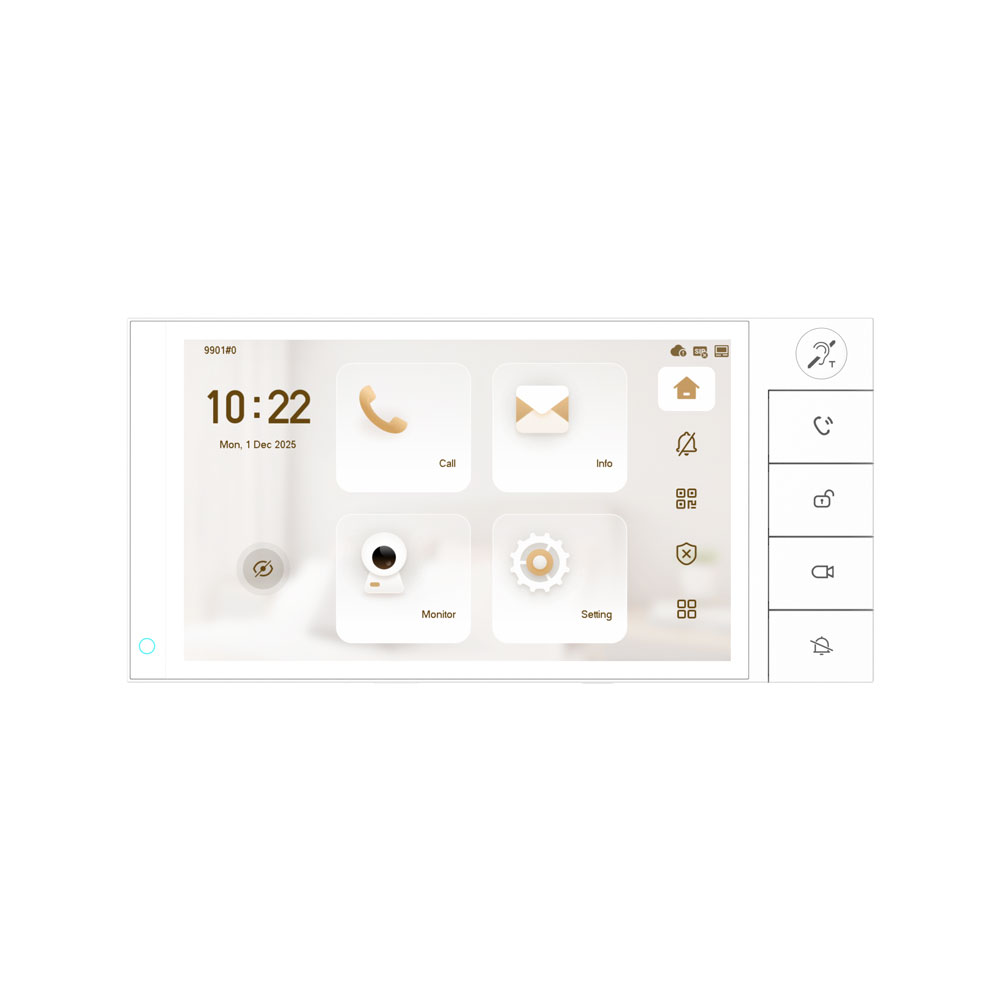

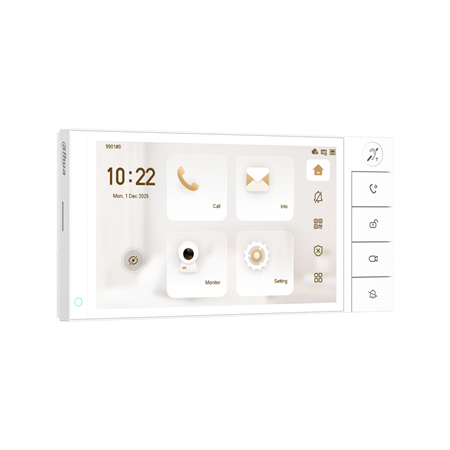

Dahua Pro 7-inch IP monitor with Linux, 2-wire, WiFi 6 and PoE

Technical Specifications

• Dahua Pro Series IP Monitor with Integrated Linux Operating System
• 7-inch IPS capacitive touchscreen
• Resolution of 1024×600 pixels
• 178° viewing angle
• Full-screen design with an ultra-thin black bezel
• Removable and replaceable buttons with customizable functions

Functionalities

• Fully digital or 2-wire IP digital communication
• Automatic screen activation when a person approaches
• Built-in light sensor to automatically adjust screen brightness
• Multicolored indicators with a breathing effect to show status changes
• Compatible with hearing loop systems for connection to hearing aids
• Reception and display of information published by the management center
• Elevator control to request travel to the selected floor
• Do Not Disturb mode with configurable duration
• Supports 1 main monitor and 9 extensions in villas, or 1 main monitor and 4 extensions in apartments

Audio

• 1 audio input
• Built-in speaker
• Two-way audio
• G.711a, G.711u, and PCM compression
• Echo cancellation and digital noise reduction
• 16 kHz, 16-bit audio

Storage

• MicroSD card slot supporting up to 512 GB (card not included)
• Allows video recording when a MicroSD card is inserted into the monitor or the outdoor station

Alarms

• 8 alarm inputs
• 1 alarm output
• Buzzer function via an alarm input

Communication interface

• 1 RS-485 interface

Network

• 1 10/100 Mbps RJ45 Ethernet port
• IEEE 802.11b/g/n/ax Wi-Fi in the 2.4 GHz band
• Maximum wireless transmission power of 20 dBm between 2400 and 2483.5 MHz
• IPv4, RTSP, UDP, DNS, RTP, TCP, and SIP protocols

Power

• 48 V DC, 0.4 A power supply
• Standard PoE power supply
• 1 power output of 12 V DC and 200 mA
• Maximum power consumption of 3.8 W in standby and 10 W during operation
• Optional power adapter

Environmental

• Indoor use
• Operating temperature range: –10 °C to +55 °C
• Operating humidity: 10% to 95%, non-condensing
• Storage temperature: 0 °C to +40 °C
• Storage humidity: 30% to 75%
• Operating altitude: less than 3,000 m

Physical Characteristics

• White PC and ABS housing
• Surface-mount installation
• Dimensions: 210.2 × 103.1 × 18.6 mm
• Gross weight: 0.6 kg

Contents

• Dahua DAHUA-5526 IP camera (DHI-VTH5722BW-IWP)
• RS-485 and power output cable
• Power cable
• Mounting bracket
• Alarm cable

Certifications and Standards

• CE Certification
