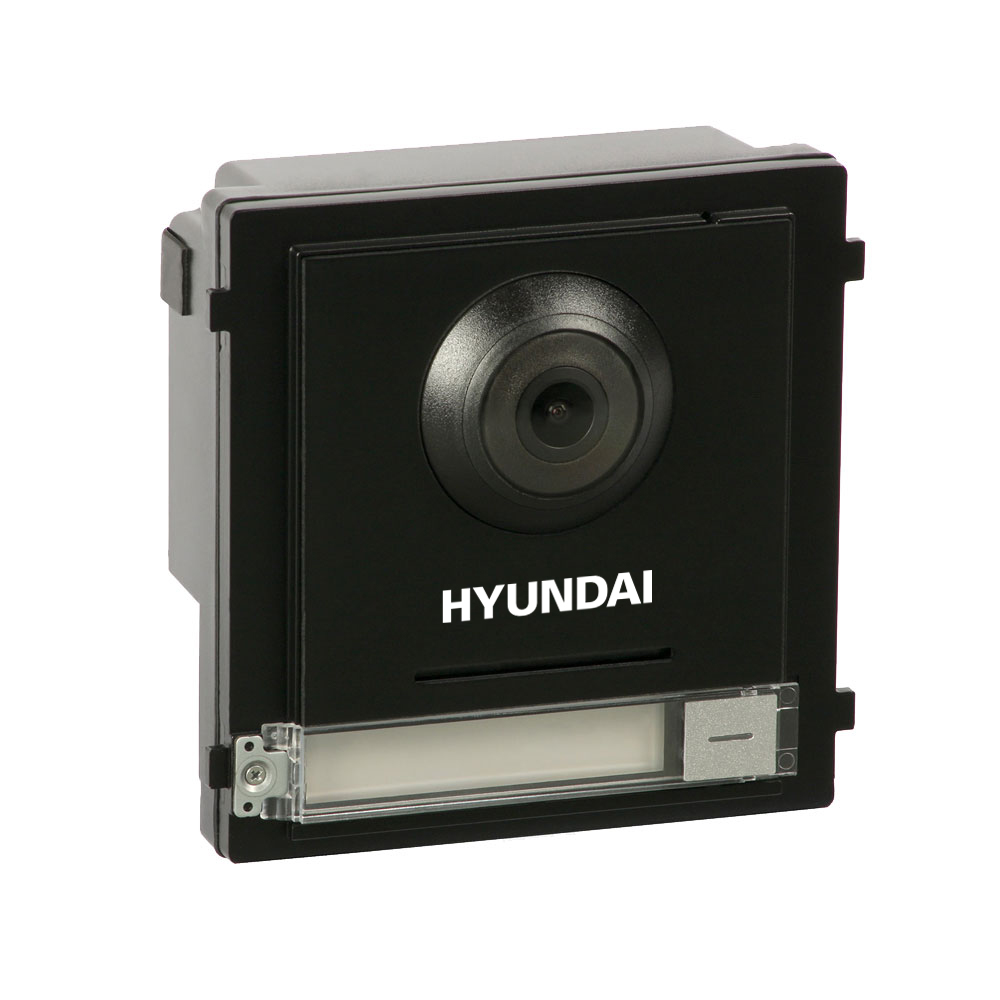

HYUNDAI 2-wire IP video intercom station with 2MP fisheye camera

Features

• Two-pin cable for power supply and network access
• Access control function
• Noise suppression and echo cancellation
• H.264 video compression
• Low lighting
• Tamper alarm
• Fisheye camera with supplementary IR illumination
• Supports access of up to 8 submodules
• Name Tag Customization
• Easy to extend

Specs

• Embedded Microprocessor
• Embedded Linux operating system
• Operating method by physical button
• 2 MP low illumination camera with IR illumination
• H.264 video compression
• Main stream resolution: 1080P (1920x1080)
• Secondary stream resolution: 720x480
• BLC backlight compensation
• True wdr
• DNR digital noise reduction
• Video sensor
• 50 / 60Hz anti-flicker
• Viewing angle: 180 ° (H), 96 ° (V)
• Full-duplex bidirectional audio
• It incorporates omnidirectional microphone
• Includes speaker (> 80dB at 20 cm)
• G.711U audio compression
• 64Kbps audio compression ratio
• Noise suppression and echo cancellation
• Wired network interface with two-wire transmission
• Protocols: TCP / IP, RSTP
• Relay interface (main module): 2, NC + NA extracted separately
• RS485 port for connection between modules
• Tamper alarm
• 4 alarm inputs
• Power: 24V DC (two-wire power supply), 12V DC (independent power supply)
• Consumption: 16W ~ 20W
• Power output: 12V DC (only to power submodules)
• Operating temperature of -40 ° C ~ + 60 ° C
• Operating humidity of 10% ~ 95%
• IP65
• Dimensions: 99.8 (W) x 98 (H) x 43.9 mm
• Weight: 375g
